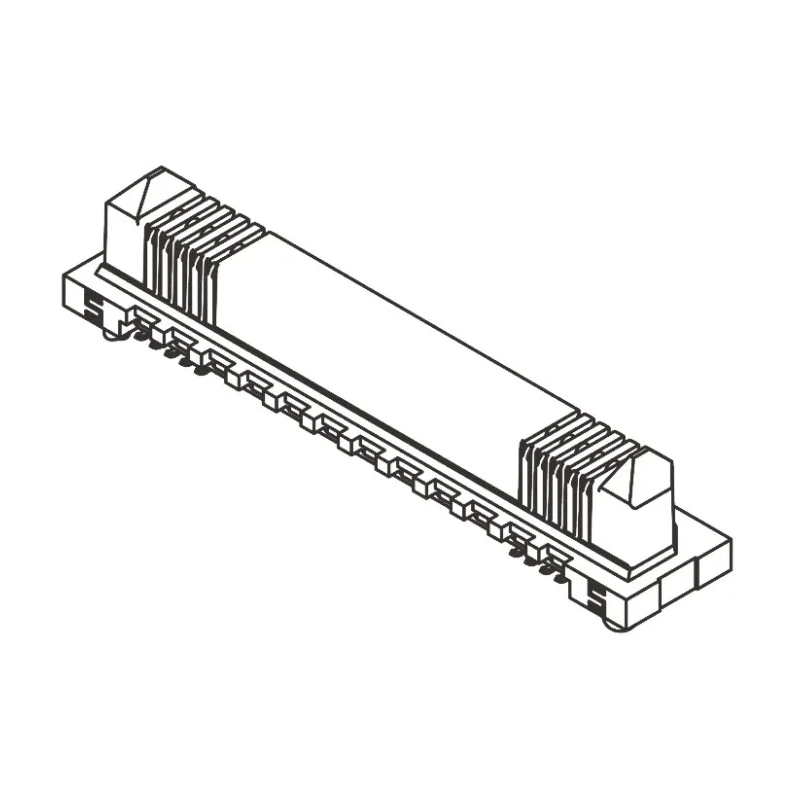

Samtec ERM8 Series Straight Surface PCB Header 60 Contacts 0.8 mm Pitch 2 Row Shrouded ERM8

Samtec ERM8 model ERM8 is a robust straight surface PCB Header connector designed for board-to-board electronic connections with high reliability and performance. It features 60 male contacts arranged in two rows with a fine 0.8 mm pitch suitable for compact PCB designs.

The contacts are made of phosphor bronze and plated with 0.76 microns of gold to ensure excellent conductivity and resistance to corrosion. The housing is constructed from black Liquid Crystal Polymer (LCP), delivering mechanical strength and thermal stability across a wide operating temperature range of -55°C to +125°C.

This PCB header supports surface mount technology with solder termination, simplifying integration on PCB assemblies. The overall board height is 5.97 mm, including a wafer height of 1.61 mm, allowing space-efficient stacking in multi-board systems.

Rated for 200 V voltage and 1.4 A current, this connector also features a shrouded design that protects the contacts from damage and improper mating, enhancing durability in industrial environments.

The ERM8 series mates with ERF8 series sockets, providing system compatibility and flexibility. It is ideal for industrial, laboratory, manufacturing, and commercial electronics applications requiring high-speed data transmission and reliable power delivery.

Features 60 phosphor bronze contacts plated with gold for enhanced conductivity and reliability. Compact 0.8 mm pitch and 2-row arrangement optimized for high-density PCB layouts. Rugged black Liquid Crystal Polymer housing supports harsh and variable operating conditions.

Surface mount type with solder termination simplifies assembly and manufacturing processes. Operates safely at up to 200 V and 1.4 A for demanding electronic circuits. Compatibility with ERF8 series ensures versatile deployment in electronic systems.

Shrouded male connector design to protect against damage and ensure alignment.

Choose Samtec ERM8 Series Straight Surface PCB Header for reliable, high-speed electronic interconnections in a variety of industrial and commercial applications. Explore the comprehensive range of PCB Headers and electronic connectors at EnvMart for your project needs.
