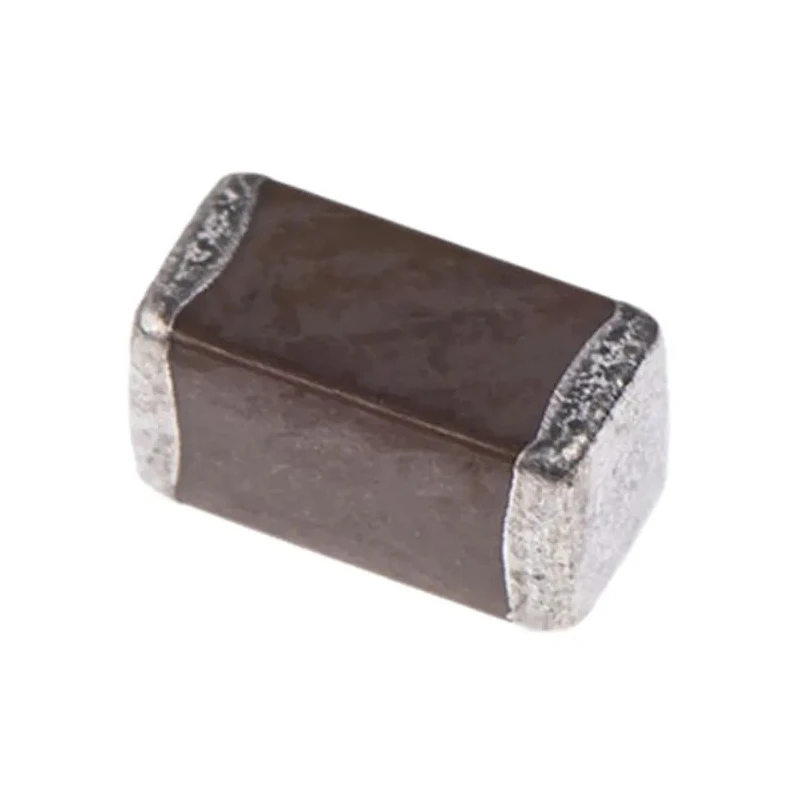

TDK 3.3 nF Multilayer Ceramic Capacitor 50V DC C0G Dielectric ±5% Tolerance Surface Mount 0603 Case CGA3E2C0G1H332J080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 3.3 nF Multilayer Ceramic Capacitor 50V DC C0G Dielectric ±5% Tolerance Surface Mount 0603 Case CGA3E2C0G1H332J080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2C0G1H332J080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	3.3nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200

Key Features

Constructed using C0G dielectric for excellent stability and reliability.
Designed for automotive applications, compliant with AEC-Q200 automotive standard.
Compact size with dimensions 1.6 mm length, 0.8 mm width and height suitable for high-density circuit boards.
Features low equivalent series resistance (ESR) and low equivalent series inductance (ESL) for superior frequency characteristics.
Temperature range from -55°C to 125°C ensuring performance in harsh environments.
RoHS compliant ensuring environmental safety.
Provided in tape and reel packaging for efficient automated assembly.
Ideal for applications such as battery line smoothing, sensor modules, engine control units, and automotive infotainment systems.

Product Description

TDK CGA3E2C0G1H332J080AA is a 3.3 nF multilayer ceramic capacitor featuring a 50V DC voltage rating and ±5% tolerance, packaged in a 0603 surface mount case. Utilizing C0G dielectric technology, this capacitor ensures excellent thermal stability and low losses, making it highly reliable for industrial and automotive use.

The capacitor's compact dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height allow integration into densely packed circuits. It is automotive grade, compliant with the AEC-Q200 standard, guaranteeing suitability for critical applications such as battery line smoothing, sensor modules, engine control units (ECUs), anti-lock brake systems, and automotive infotainment systems.

The MLCC design incorporates multiple thin ceramic dielectric layers providing high capacitance along with low ESR and ESL, ensuring effective performance at high frequencies with minimal self-heating. It operates reliably over a temperature range from -55°C to 125°C.

This component is RoHS compliant and supplied in tape & reel packaging facilitating automated surface mount assembly, enhancing production efficiency in industrial manufacturing environments.

Constructed with C0G dielectric for superior stability. Meets AEC-Q200 automotive quality standards. Compact 0603 package size for space-efficient layouts. Low ESR and ESL characteristics for better frequency performance.

Wide operating temperature range from -55°C to 125°C. RoHS compliant for environmental safety. Tape and reel packaging suitable for automated assembly. Applications include automotive, smart meters, solar inverters, and agriculture.

This capacitor is an ideal choice for demanding electronics in industrial, automotive, and commercial applications where reliability, precision, and durability are paramount. Explore more TDK electronic components and Multilayer Ceramic Capacitors on EnvMart.
