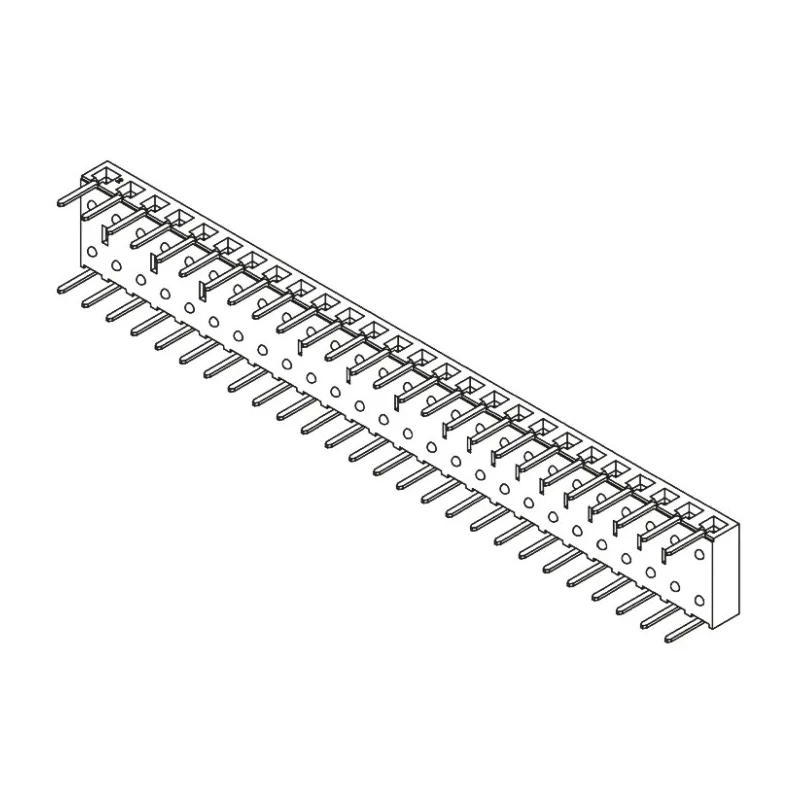

Samtec BCS Series Right Angle Through Hole PCB Socket, 26-Contact, 1 Row, 2.54 mm Pitch, 450V, 5.9A BCS-126-L-S-HE

Samtec BCS-126-L-S-HE is a right angle through hole PCB socket designed for board-to-board connector applications. Featuring 26 contacts in a single row with a 2.54 mm pitch, it supports a voltage rating of 450V and a current rating of 5.9A. The connector is built with a black liquid crystal polymer housing known for its mechanical strength and thermal stability, suitable for demanding industrial and electronic applications.

The contacts are manufactured from phosphor bronze material with a 0.25µm gold plating on the mating areas to ensure reliable electrical performance and corrosion resistance. The tails are plated with matte tin for effective solderability to printed circuit boards.

This PCB socket supports a temperature range from -55°C to +125°C, making it ideal for various environments including industrial machinery, communication devices, and instrumentation.

Mounting and termination are both through hole type, facilitating a firm and reliable mechanical connection to PCB assemblies. The connector features a right angle orientation allowing for efficient PCB stacking and space saving within assemblies.

The BCS series is compatible with multiple Samtec header and stacking solutions, including TSW series through hole headers, TSM SMT headers, and DW and EW flexible board stackers, providing flexibility in design and application.

Constructed with a robust black liquid crystal polymer body for durability and stability. Phosphor bronze contacts with 0.25μm gold plating ensure excellent electrical conductivity. Operating temperature range from -55°C to 125°C allows versatile environmental use.

Through hole mount and termination types for reliable PCB connection. Standard 2.54 mm pitch and single row for widespread compatibility. Right angle orientation optimizes PCB space and design. Compatible with various Samtec headers and board stackers for assembly flexibility.

This PCB socket is suitable for use in industrial electronics, communication hardware, instrumentation, and other applications requiring robust and reliable PCB interconnections. Its combination of durable materials, standard pitch, and compatibility with multiple header types makes it a practical choice for engineers and manufacturers.
