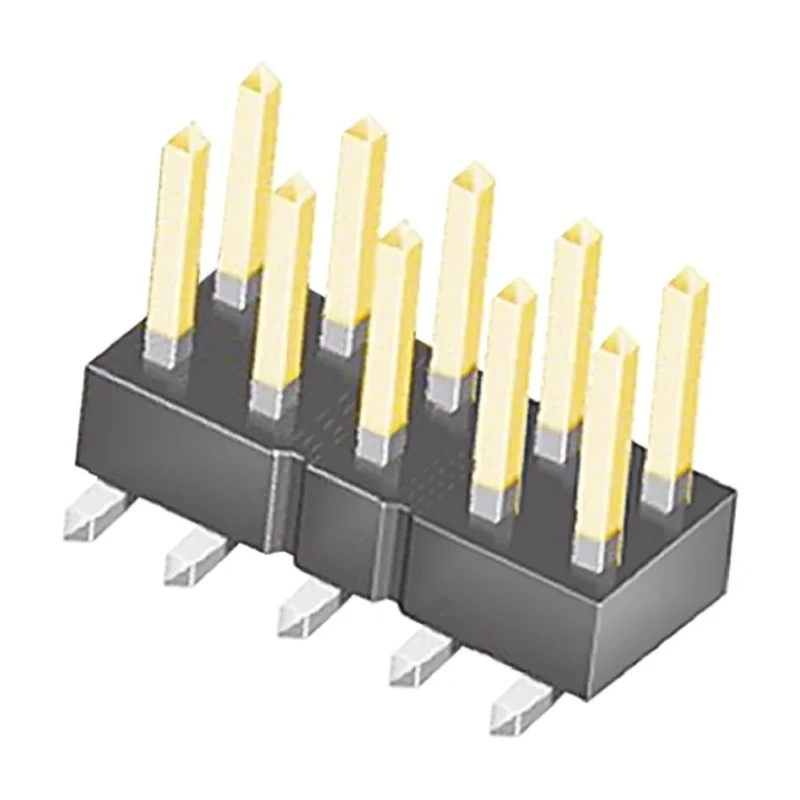

Samtec TSM Series Straight Surface Pin Header 10 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-105-02-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7A |
| Model | TSM-105-02-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 8.13mm |
Key Features
- The housing is made of black liquid crystal polymer offering high durability.
- Contact material is phosphor bronze with 0.25μm gold plating on posts and matte tin on tails.
- Supports a current rating of 7A and voltage up to 475V.
- Operating temperature range spans from -55°C to 125°C for reliable performance.
- Includes a mating pin length of 8.13 mm for secure connections.
- Designed as surface mount technology (SMT) for efficient PCB assembly.
- Unshrouded contact design enables easy access for mating connectors.
Product Description
Samtec TSM-105-02-L-DV is a high-quality SMT straight surface pin header designed for industrial and electronic applications requiring robust board-to-board and wire-to-board connections.
This model features 10 male contacts arranged in 2 rows with a 2.54 mm pitch for standard PCB layouts. The housing material is liquid crystal polymer, which provides mechanical strength and thermal stability over a wide operating temperature range from -55°C up to 125°C.
The contact terminals are made from phosphor bronze, plated with 0.25μm gold on the contact posts to enhance conductivity and corrosion resistance while tails are matte tin-plated to ensure reliable solder joints on PCB surfaces.
Its surface mount technology (SMT) design enables seamless integration with automated PCB assembly lines. The unshrouded configuration facilitates easy mating with compatible connectors, while the 8.13 mm mating pin length assures secure board interconnections.
Operating specifications include a current rating of 7A and a maximum voltage rating of 475V, making it suitable for various industrial electronic equipment, communication devices, and power distribution units.
The housing is made of black liquid crystal polymer delivering excellent electrical insulation and heat resistance. Gold-plated phosphor bronze contacts provide superior electrical performance and durability. Supports high current applications up to 7 amperes safely.
Wide temperature range operation ensures suitability for harsh industrial environments. Compatible with various mating socket options for flexibility in system design. Ideal for use in industrial control systems, electronic instrumentation, and telecommunications equipment.
Available in multiple configurations including single/double row and different post heights, this specific model features double row with 8.13 mm post length.
Samtec's TSM series promotes reliable electronic connections for PCB assemblies requiring precision and durable connector solutions. Explore the Electronics & Electricals category on EnvMart for an extensive selection of PCB Headers and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7A.
The maximum voltage rating for this pin header is 475V.
It operates within a temperature range of -55°C to 125°C.
This model features 10 male contacts arranged in 2 rows.
The pitch of the contacts is 2.54 mm.
The contact material is phosphor bronze with 0.25μm gold plating on the posts, and the housing is made of black liquid crystal polymer.
It uses a solder termination type.
This pin header features an unshrouded contact design.
The mating pin length is 8.13 mm.
It supports board-to-board and wire-to-board connections.
The country of origin for this model is India.
It is suitable for industrial control systems, electronic instrumentation, and telecommunications equipment.
