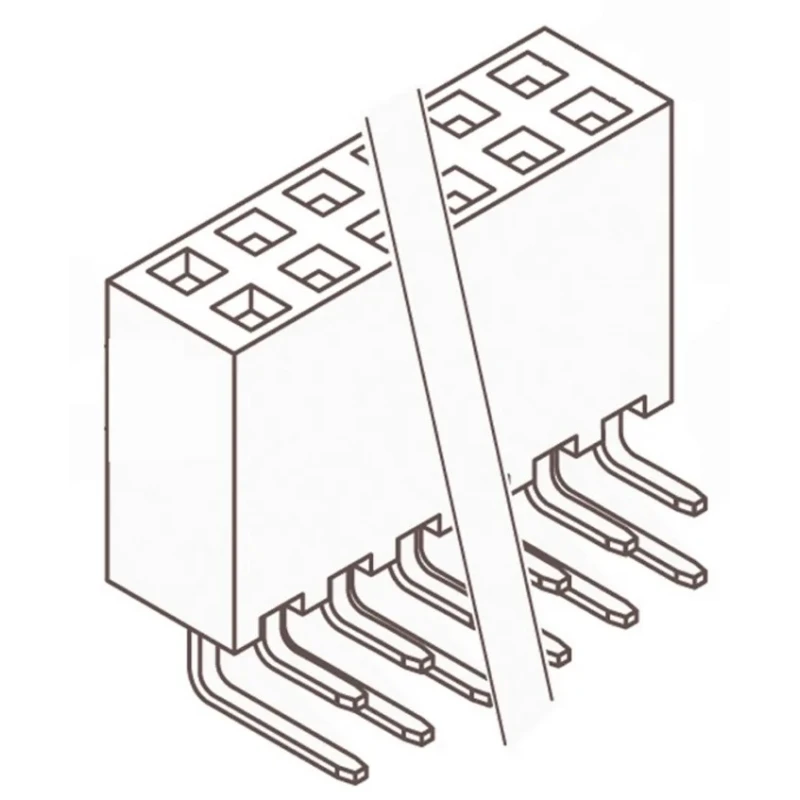

Samtec SSW Series Right Angle Through Hole PCB Socket, 4-Contact, 2 Row, 2.54 mm Pitch Solder SSW-102-02-G-D-RA

Samtec SSW-102-02-G-D-RA is a high-quality right angle through hole PCB socket featuring 4 contacts arranged across 2 rows with a 2.54 mm pitch, designed specifically for board-to-board connections. Incorporating a black liquid crystal polymer housing, this connector ensures mechanical strength and thermal stability in demanding electronic assembly environments.

The socket contacts are constructed from phosphor bronze material, enhanced with 0.51 μm gold plating at contact points and a gold flash finish on solder tails, providing excellent resistance to corrosion and ensuring reliable electrical conductivity. Its design supports a rated current of 6.9 A and voltage up to 550 V, making it suitable for medium-power electronic circuits.

With a through hole mount type and right angle orientation, the SSW series socket accommodates compact PCB designs while allowing easy soldering and durability. The operating temperature range from -55°C to 125°C further supports versatile usage in industrial, laboratory, and manufacturing applications where temperature variances occur.

This product series mates compatibly with TSW and TSM series headers, allowing flexible configuration in multi-board and wire-to-board systems. The 2.54 mm pitch and square post design allow for precise, secure connections in electronic assemblies.

These PCB sockets are ideal for use in electronics manufacturing, test equipment, communications, robotics, and control systems, where reliable, high-density board connections are essential. The product does not specify formal compliance or approval certifications.

Features a liquid crystal polymer housing for enhanced durability and heat resistance. Operates with a current rating of 6.9 A and voltage rating of 550 V. Designed with 2 rows and 4 female gold-plated bronze contacts at 2.54 mm pitch for precision connection.

Supports through hole mounting with right angle orientation for versatile PCB layouts. Operates effectively in temperature ranges from -55°C to 125°C for gold plated contacts. The connector system is optimized for board-to-board applications ensuring secure mating.

The contact plating includes 0.51 μm gold on contact areas and gold flash on tails for excellent conductivity. No standards or certifications are specified for this product. Explore more PCB Sockets and connectors from Samtec on EnvMart for diverse industrial, laboratory, and electronics manufacturing needs.
