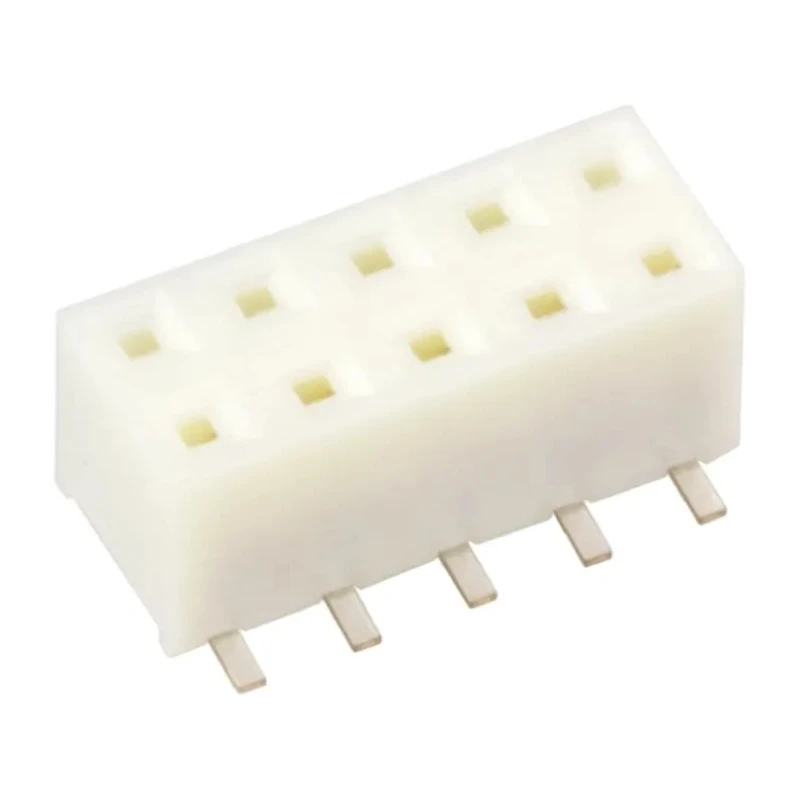

Hirose A3 Series Straight Surface PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, 12A, 200V A3A-10DA-2SV(71)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | A3A-10DA-2SV(71) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | A3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Stacking Height | 6mm |
Key Features
- This PCB socket is designed for surface mounting on printed circuit boards with a straight orientation.
- It features a polyamide housing material ensuring durability and reliable insulation.
- The contacts are made of bronze with gold plating for enhanced conductivity and corrosion resistance.
- Operating temperature ranges from -55°C to +85°C, suitable for diverse industrial environments.
- It includes positioning bosses to facilitate precise mounting and alignment.
- This miniature connector supports wire-to-board connections in applications such as electronic equipment, vehicle telephones, test rigs, and VTR systems.
- Stacking height of the connector is 6 mm, enabling compact designs.
- The connector complies with UL94V-0 flammability standards for safety.
Product Description
Hirose A3A-10DA-2SV(71) is a 10-contact, 2-row straight surface PCB socket designed for wire-to-board applications. It features a compact 2 mm pitch and supports currents up to 12A at 200V, making it suitable for demanding electronic components and power connections.
The socket is constructed with a polyamide housing that provides strength and electrical insulation. Contact components are made from bronze with a durable gold plating, ensuring excellent electrical conductivity and long-term reliability. The solder termination type allows robust and secure mounting to the PCB surface.
Operating temperature ranges from -55°C to +85°C, enabling reliable performance in varied industrial, automotive, and communications equipment conditions. The stacking height of 6 mm aids designers in creating compact device layouts.
This miniature SMT receptacle connector is ideal for applications including vehicle telephones, video tape recorders (VTR), test rigs, electronic equipment, and other communication devices requiring high density and dependable board connections. The inclusion of positioning bosses simplifies installation alignment.
The connector series is recognized for its UL94V-0 flammability rating, ensuring a high level of safety in electronics design. Manufactured in Japan, the Hirose A3 Series maintains exceptional quality for professional industrial and commercial uses.
This PCB Socket is designed for surface mounting on printed circuit boards with a straight orientation. It features a polyamide housing material ensuring durability and reliable insulation. The contacts are made of bronze with gold plating for enhanced conductivity and corrosion resistance.
Operating temperature ranges from -55°C to +85°C, suitable for diverse industrial environments. It includes positioning bosses to facilitate precise mounting and alignment. This miniature connector supports wire-to-board connections in applications such as electronic equipment, vehicle telephones, test rigs, and VTR systems.
Stacking height of the connector is 6 mm, enabling compact designs. The connector complies with UL94V-0 flammability standards for safety. Manufactured in Japan, ensuring high-quality craftsmanship. Explore extensive categories and products at EnvMart to find a wide selection of electronic components including Hirose connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum voltage of 200V.
It can handle currents up to 12A.
The stacking height of this connector is 6 mm, allowing for compact designs.
The housing is made of polyamide, while the contacts are constructed from bronze with gold plating.
It operates effectively within a temperature range of -55°C to +85°C.
This model features 10 contacts arranged in 2 rows.
It uses a solder termination type for secure mounting to the PCB surface.
The pitch size of the contacts is 2 mm.
Yes, this socket is designed specifically for wire-to-board connections.
It complies with UL94V-0 flammability standards, ensuring safety in electronics design.
It is suitable for applications such as electronic equipment, vehicle telephones, test rigs, and VTR systems.
This PCB socket is manufactured in Japan, ensuring high-quality craftsmanship.
