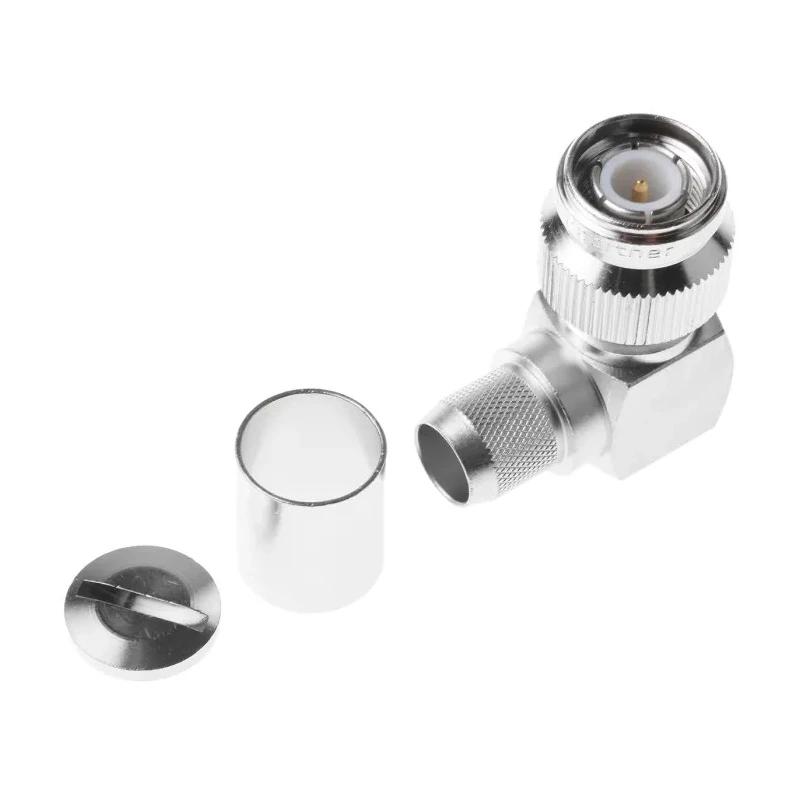

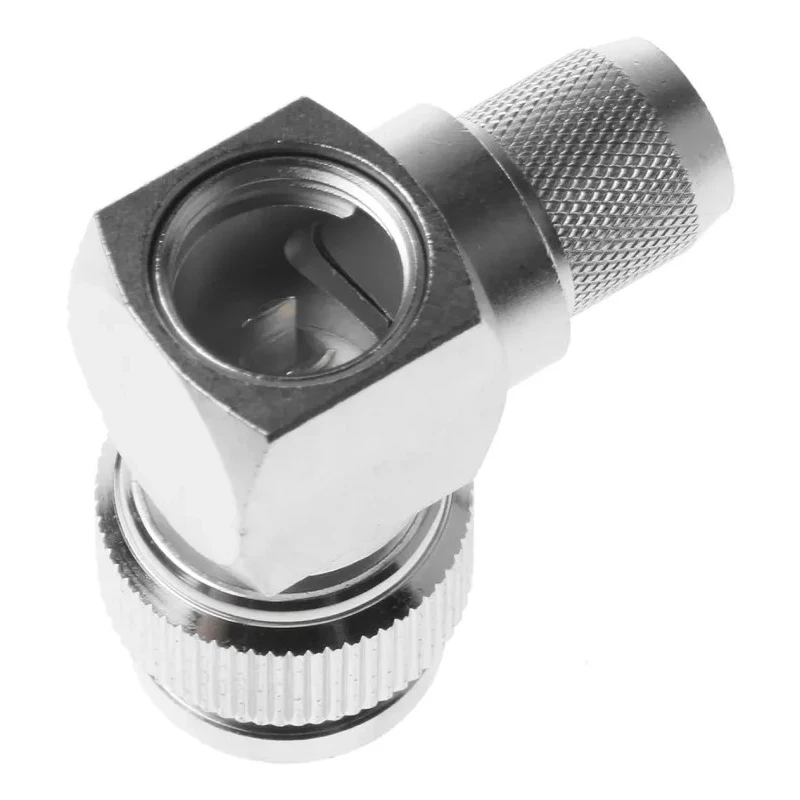

Telegartner TNC Series Coaxial Connector Cable Male, 50 Ω, Right Angle Body Solder J01010A0065
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01010A0065 |
| Mount Type | Cable |
| Operating Frequency | 11GHz |
| Contact Material | Brass |
| Series | TNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | TNC |
| Body Plating | Nickel |
Key Features
- The connector features a nickel-plated right angle body for durability.
- Supports operating frequencies up to 11 GHz for high-performance signal transmission.
- Termination type is solder, ensuring strong electrical connection.
- The contact is male with gold plating over brass material for reliable conductivity.
- It is rated for a temperature range of 0°C to 155°C for versatile industrial use.
- Compatible with standard size cables and supports over 500 mating cycles.
- Offers an insulation resistance of 5 G ohms to maintain signal integrity.
- Manufactured in Germany with high-quality standards.
Product Description
Telegartner J01010A0065 TNC Series Coaxial Connector Cable Male is designed for precise RF signal transmission with a 50 Ω impedance and a right angle configuration. This cable-mounted connector incorporates a nickel-plated body and gold-plated brass contacts, enhancing durability and signal integrity for demanding environments.
The connector supports frequencies up to 11 GHz and temperature operation from 0°C to 155°C, making it suitable for a wide range of industrial, commercial, and electronic applications. Its solder termination type ensures secure and stable connections.
The TNC connector series offers a threaded coupling mechanism compatible with flexible, conformable, and semi-rigid cable styles. It guarantees over 500 mating cycles, providing longevity and reliability in RF and data transmission systems.
The connector body is nickel-plated for corrosion resistance and mechanical toughness. Gold-plated brass contact members ensure excellent conductivity and low contact resistance. Right angle orientation facilitates cable routing in tight or compact setups.
Rated insulation resistance of 5 G ohms maintains high electrical performance. Manufactured to IEC 60 169-17 standards for quality assurance. Ideal for use in electronics components, power and connectors, telecommunications, measurement instruments, and other applications requiring robust RF coaxial connectors.
Explore more Coaxial Connectors and related electronic components at EnvMart for professional-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports operating frequencies up to 11 GHz, making it suitable for high-performance signal transmission.
This model has an impedance rating of 50 Ω, which is standard for RF applications.
It features a solder termination type, ensuring a strong and stable electrical connection.
The connector is rated for a temperature range from 0°C to 155°C, allowing for versatile use in various environments.
The contacts are made of brass and are gold-plated to enhance conductivity and reduce contact resistance.
It is designed to support over 500 mating cycles, providing longevity in RF applications.
This model features a right angle orientation, which facilitates cable routing in tight spaces.
It is manufactured in Germany, adhering to high-quality standards.
The connector offers an insulation resistance of 5 G ohms, which helps maintain signal integrity.
This model uses a cable mount type, making it suitable for various cable styles including flexible and semi-rigid.
The body is nickel-plated, providing corrosion resistance and mechanical toughness.
It is ideal for use in electronics components, telecommunications, and measurement instruments, among other applications requiring robust RF connections.
