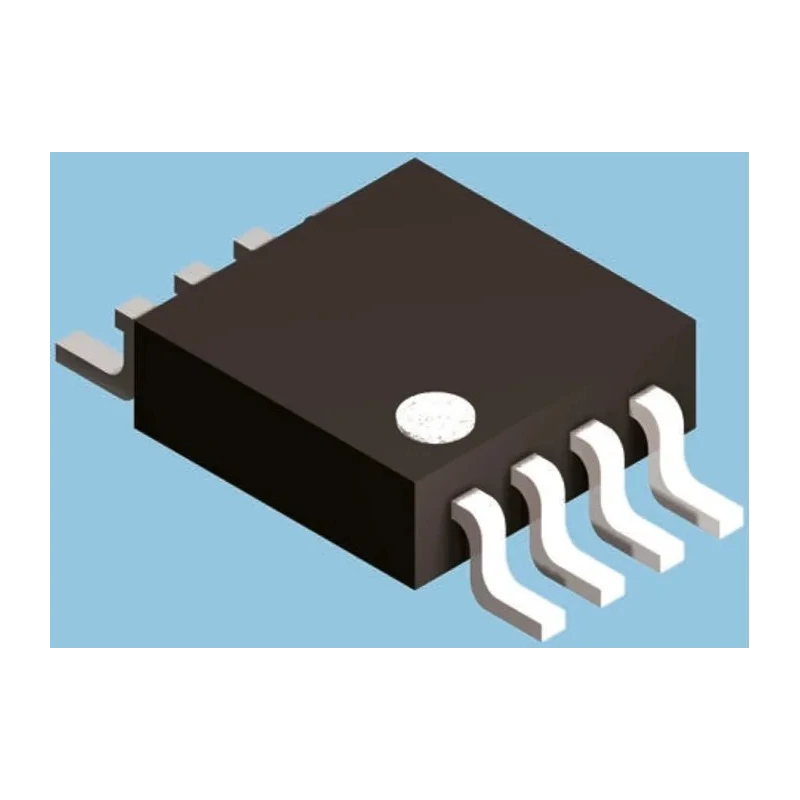

DiodesZetex Operational Amplifier, 1 MHz Gain Bandwidth, 8-Pin SOP Package, 2 Channels, 2.5V to 5.5V Supply LMV358SG-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | LMV358SG-13 |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | LMV321/324/358 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 50 nA |
| LMV358DR2G onsemi, Operational Amplifier, 1 MHz, 8-Pin 6V SOICBrand | onsemi |
Key Features
- Mount type is surface mount for PCB integration.
- Gain bandwidth of 1 MHz suitable for general purpose analog signal amplification.
- Low input bias current of 10 nA ensures precision in measurement applications.
- Operating temperature range from -40°C to +85°C for reliability in varying environments.
- Low input offset voltage of 7 mV allows accurate signal conditioning.
- Slew rate of 1 V/μs ensures responsive output signal transitions.
- Maximum supply voltage is 5.5 V with minimum supply starting at 2.5 V.
- Package contains 2 amplifier channels per IC in a standardized SOP footprint.
Product Description
DiodesZetex LMV358SG-13 is a high-performance dual operational amplifier designed for various electronic circuit applications requiring moderate bandwidth and low voltage operation. It features a gain bandwidth product of 1 MHz and operates efficiently within a supply voltage range of 2.5 V to 5.5 V, making it ideal for battery-operated and low-power devices.
This 8-pin SOP packaged device is surface mount compatible and contains two independent amplifier channels, providing flexibility in design for signal amplification tasks in industrial, consumer electronics, instrumentation, and communications equipment.
The amplifier exhibits low input bias current (10 nA), low input offset voltage (7 mV), and a moderate slew rate of 1 V/μs, which facilitates accurate and stable analog signal processing. It supports operating temperatures from -40°C to 85°C, ensuring robust performance across diverse environmental conditions.
With compact dimensions (4.95 mm length, 3.95 mm width, 1.5 mm height), it suits space-constrained PCB layouts. The LMV358SG-13 is not automotive grade and does not hold specific industry approvals, yet it is widely used for general-purpose amplification needs in electronic component assemblies.
Surface mount 8-pin SOP package with 2 amplifier channels. Operating voltage range of 2.5 V to 5.5 V for low power applications. 1 MHz gain bandwidth product supporting analog signal applications. Input bias current of 10 nA for precision analog circuits.
Slew rate of 1 V/μs ensures responsive output changes. Wide temperature operation from -40°C to 85°C for durability. Compact size fits tight industrial PCB designs. Manufactured in China with consistent quality standards.
This operational amplifier is typically employed in signal conditioning, sensor interface, audio amplification, and various circuit designs requiring dual amplifiers with low voltage operation capabilities. It serves effectively in industrial, instrumentation, and embedded electronic systems.
Explore more Operational Amplifier options within the electronics and semiconductor categories on EnvMart for comprehensive industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LMV358SG-13 has a gain bandwidth product of 1 MHz, making it suitable for general purpose analog signal amplification.
This operational amplifier operates within a supply voltage range of 2.5 V to 5.5 V, allowing it to be used in low power applications.
The input bias current for this model is 10 nA, which ensures precision in measurement applications.
The LMV358SG-13 has dimensions of 4.95 mm in length, 3.95 mm in width, and 1.5 mm in height, making it suitable for compact PCB layouts.
It operates effectively within a temperature range of -40°C to 85°C, ensuring reliable performance in varying environments.
The LMV358SG-13 contains two independent amplifier channels per IC, providing flexibility for various circuit applications.
This model has a slew rate of 1 V/μs, which facilitates responsive output signal transitions.
It is packaged in an 8-pin SOP (Small Outline Package), which is compatible with surface mount technology for PCB integration.
The input offset voltage is 7 mV, allowing for accurate signal conditioning in various applications.
This operational amplifier is typically employed in signal conditioning, sensor interface, audio amplification, and various circuit designs requiring dual amplifiers.
The maximum supply voltage for the LMV358SG-13 is 5.5 V, which is suitable for low voltage applications.
The input offset current for this model is 50 nA, which contributes to its precision in analog circuit applications.
