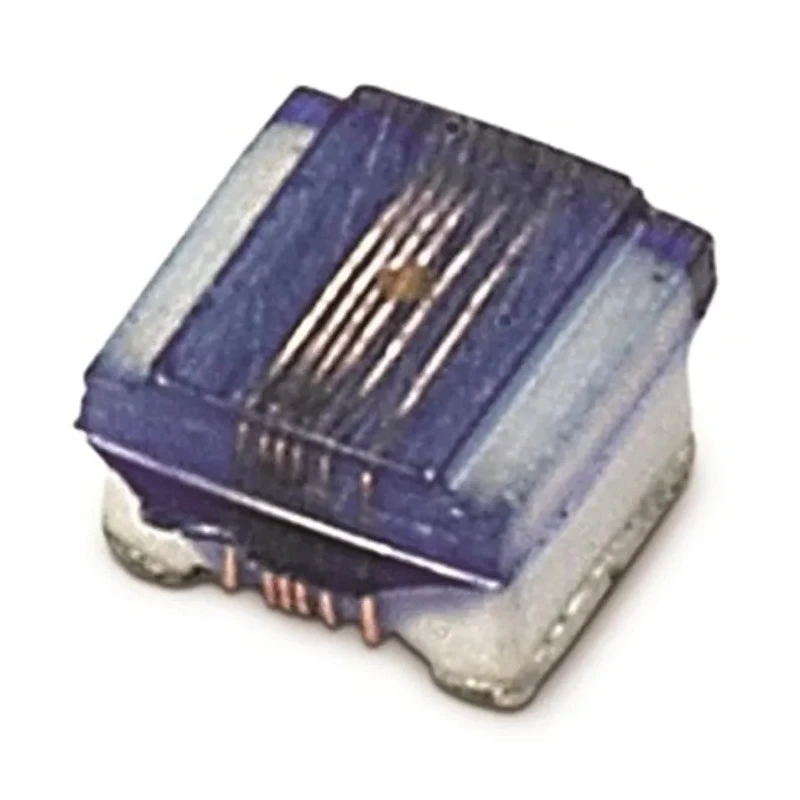

Wurth Elektronik 0805C Wirewound Surface Mount Inductor with Ceramic Core 33 nH 500 mA Idc Q:60 74476013C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.28mm |
| Length | 2.28mm |
| Model | 74476013C |
| Depth | 1.7mm |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 33nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805C |
| Maximum DC Current | 500mA |
| Maximum DC Resistance | 270mΩ |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |
Key Features
- Compact 0805C package suitable for high frequency applications.
- Wirewound inductor construction ensures high Q factor of 60.
- Ceramic core material provides high thermal stability.
- Operating temperature range from -40°C to 125°C for industrial use.
- Maximum DC resistance of 270 mΩ minimizes power loss.
- Self-resonant frequency up to 12.5 GHz ideal for RF designs.
- Recommended reflow soldering process for assembly.
- Applications include wireless LAN, Bluetooth, and RF transceiver communications.
Product Description
Wurth Elektronik 74476013C is a wirewound surface mount inductor housed in a robust 0805C package. It features a ceramic core that provides excellent thermal stability and reliability in challenging industrial environments. The inductor delivers an inductance of 33 nH and supports a maximum DC current of 500 mA, making it highly suitable for high-frequency and RF applications.
This component's wirewound construction ensures a minimum quality factor (Q) of 60, contributing to low signal loss and superior performance at frequencies reaching up to 12.5 GHz. The device operates over a wide temperature range from -40°C to 125°C, enabling it to function reliably in both commercial and industrial settings.
The 74476013C inductor has a maximum DC resistance of 270 milliohms, which aids in maintaining high efficiency and reducing heat generation during operation. Its compact dimensions (length 2.28 mm, depth 1.7 mm, height 1.28 mm) facilitate easier integration into dense PCB layouts.
Typical applications include wireless communication technologies such as wireless LAN, Bluetooth modules, and RF transceivers, where high-frequency stability and minimal signal interference are critical. The recommended assembly process is reflow soldering, ensuring consistent manufacturing quality.
Compact 0805C SMD package designed for high frequency use. Ceramic core material enhances thermal stability. Wirewound construction for high Q factor performance. Inductance value of 33 nH with 500 mA max DC current. Wide operating temperature from -40°C to 125°C.
Low DC resistance of 270 mΩ minimizes power loss. Self-resonant frequencies up to 12.5 GHz for RF applications. Recommended reflow soldering for reliable assembly.
This wirewound Surface Mount Inductor is ideal for use in industrial, communication, and electronic device manufacturing applications. Explore our Electronics Components category for more inductors and related passive components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 33 nH.
It can handle a maximum DC current of 500 mA.
The operating temperature range is from -40°C to 125°C.
The maximum DC resistance is 270 mΩ.
The self-resonant frequency can reach up to 12.5 GHz, making it suitable for RF applications.
It features a ceramic core material, which provides high thermal stability.
The inductor is housed in a compact 0805C package, with dimensions of 2.28 mm in length, 1.7 mm in depth, and 1.28 mm in height.
The minimum quality factor (Q) is 60, ensuring low signal loss.
The recommended assembly process for this inductor is reflow soldering.
This inductor is suitable for applications including wireless LAN, Bluetooth, and RF transceiver communications.
It complies with RoHS standards.
This inductor uses a wirewound construction, which contributes to its performance characteristics.
