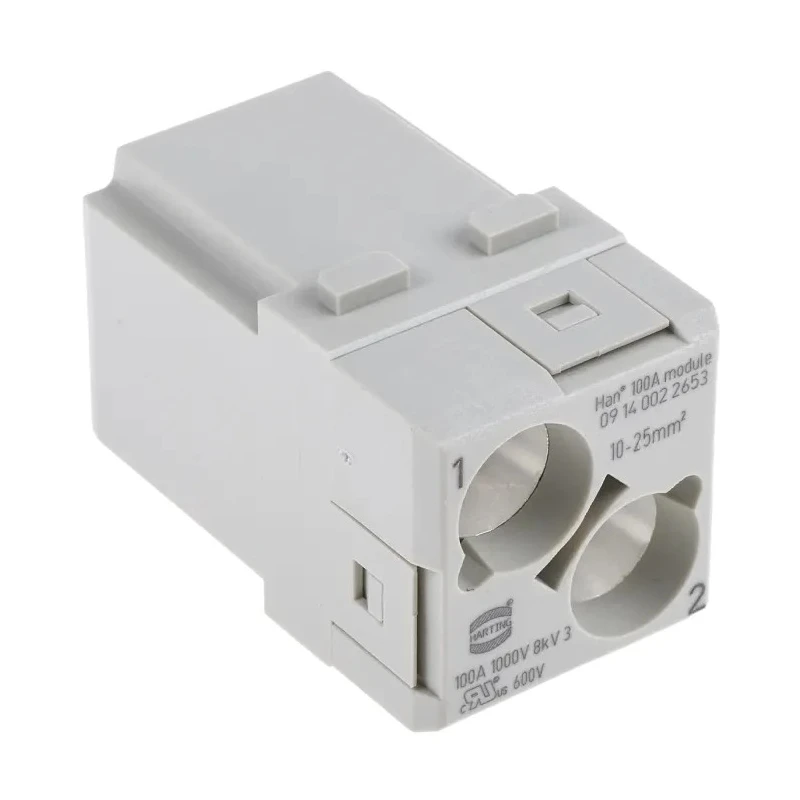

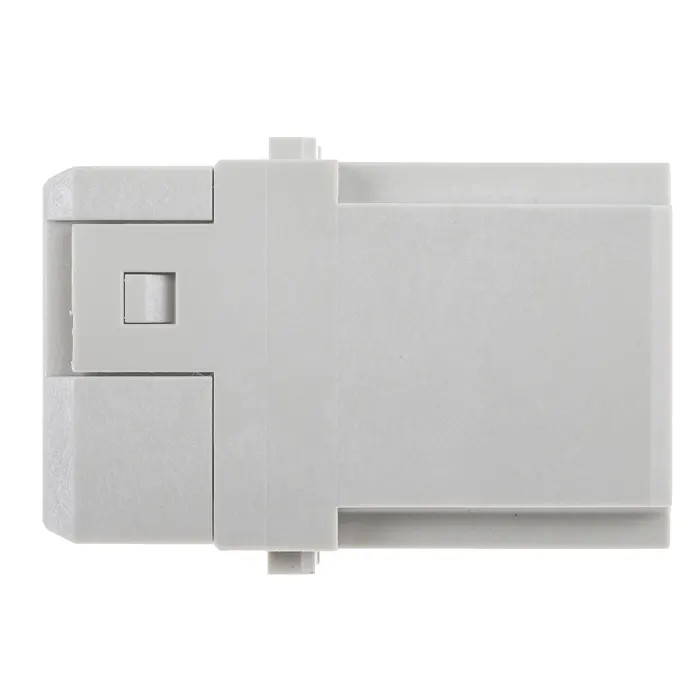

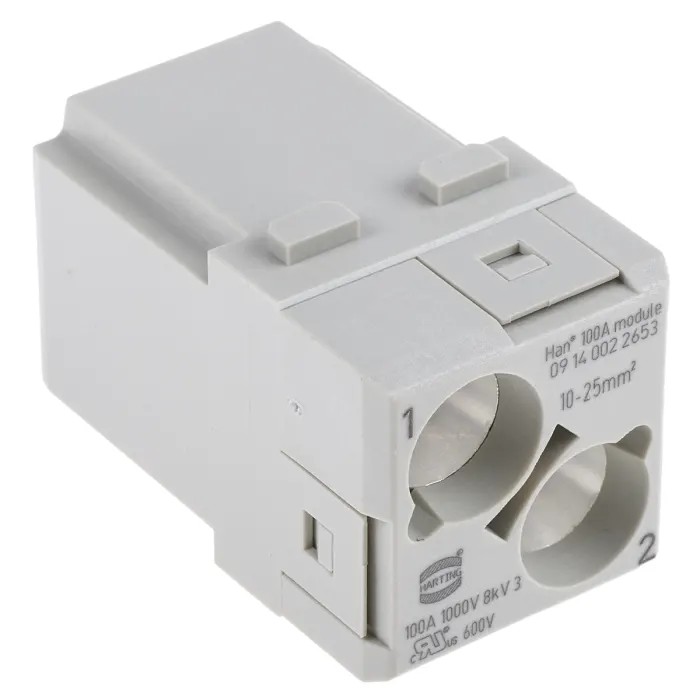

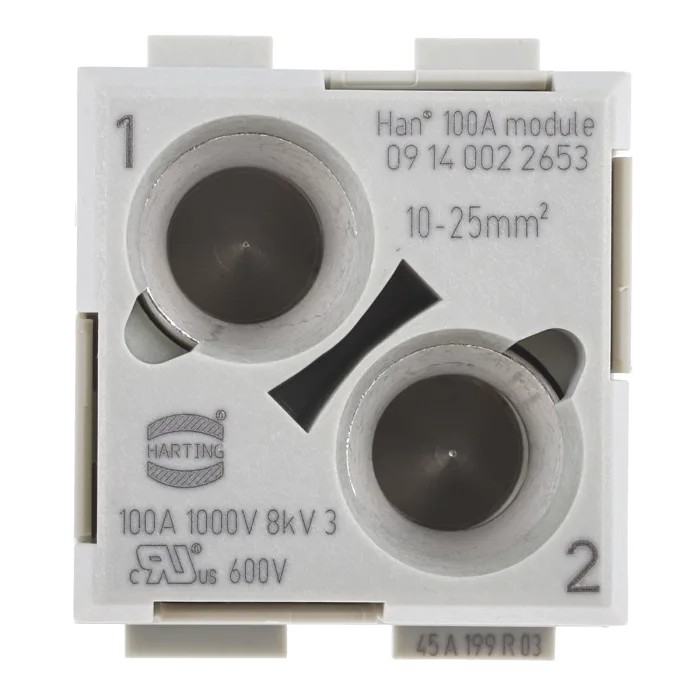

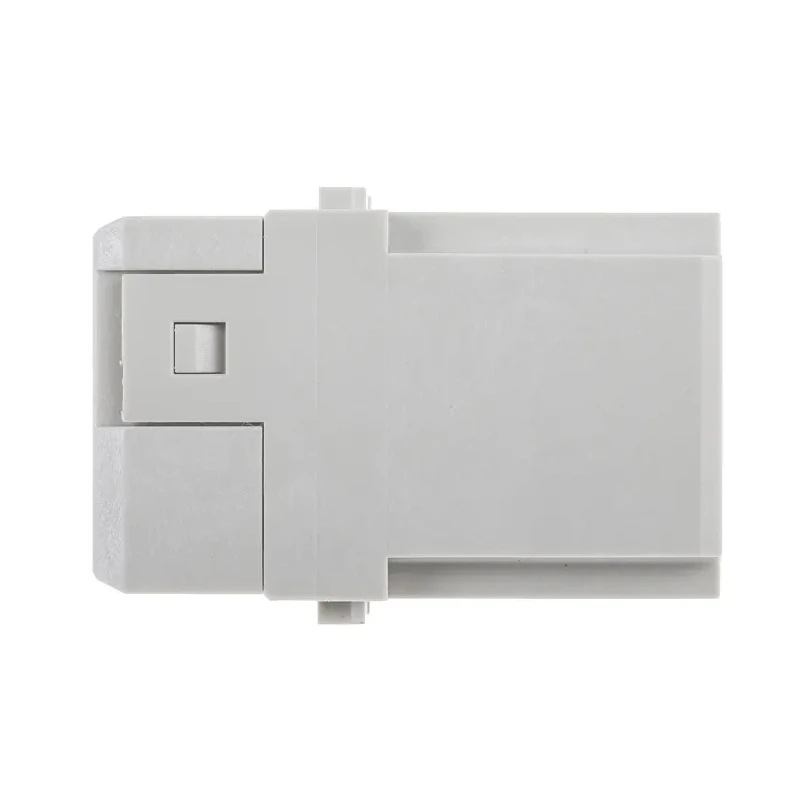

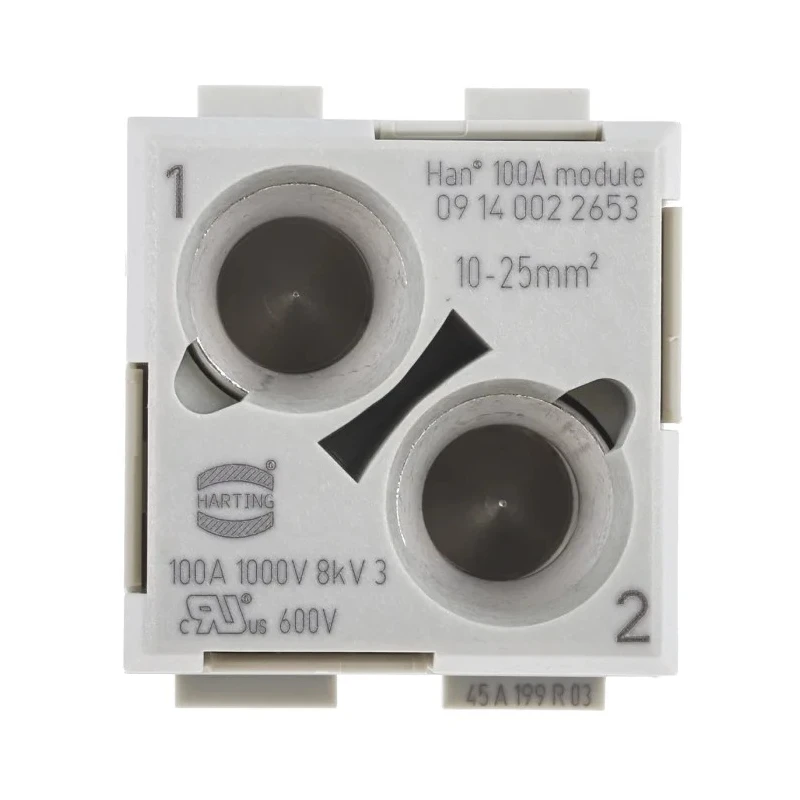

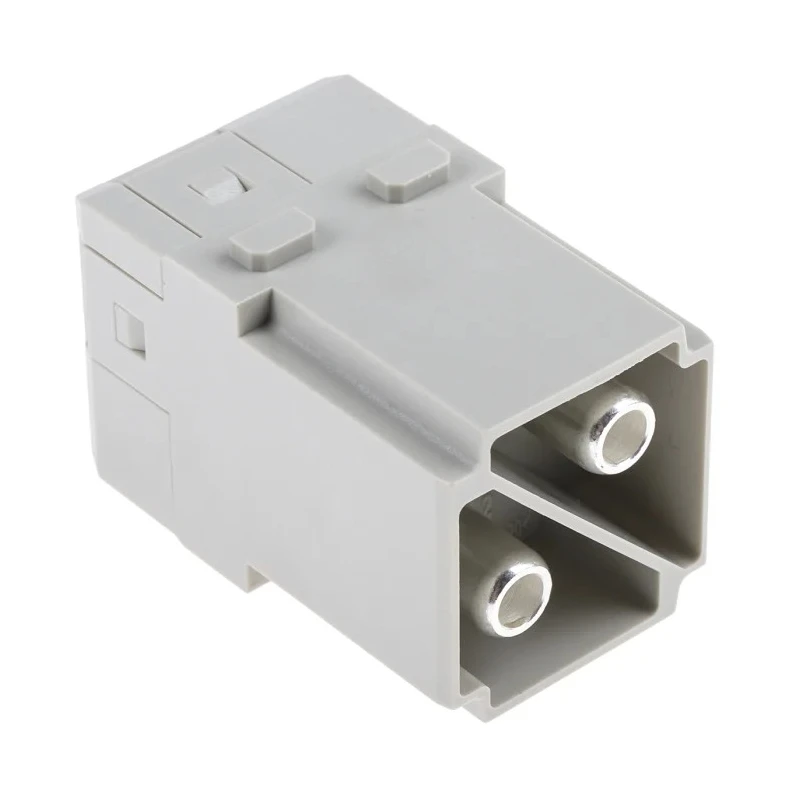

HARTING Heavy Duty Power Connector Module 100A 1000V HAN Modular Series Male 2 Contacts 09140022653
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 100A |
| Series | HAN Modular |
| Sub Type | Connector Module |
| Number of Rows | 1 |
| For Use With | Heavy Duty Power Connectors, Standard Han Hoods and Housings |
| Standards/Approvals | IEC 60664-1 |
| Pole Format | 2 |
| Contact Plating | Silver |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 10mm² |
| Maximum Wire Size mm² | 25mm² |
Key Features
- Supports a sustained current of 100A for high power transmission.
- Designed as a two-pole male connector for modular integration.
- Compatible with standard HAN Modular series hoods and housings.
- Constructed with copper alloy contacts plated with silver for excellent conductivity.
- Accepts conductors sized between 10 to 25 mm², allowing flexible cable choices.
- Meets IEC 60664-1 standards ensuring insulation coordination and safety.
- Cable-mounted design enables direct termination for inline power cabling.
- Ideal for factory automation, machinery motors, and switchgear assemblies.
Product Description
HARTING 09140022653 Heavy Duty Power Connector Module is engineered for industrial electrical power distribution, supporting currents up to 100A and voltages up to 1000V. This male connector module belongs to the HAN Modular series and utilizes a two-contact, single-row, straight pole configuration.
The module's copper alloy contacts, enhanced with silver plating, deliver robust conductivity with reduced contact resistance to maintain performance under heavy electrical loads. Designed to be cable-mounted, it facilitates inline termination of cables sized between 10 and 25 mm², promoting flexible application in automation and mechanical environments.

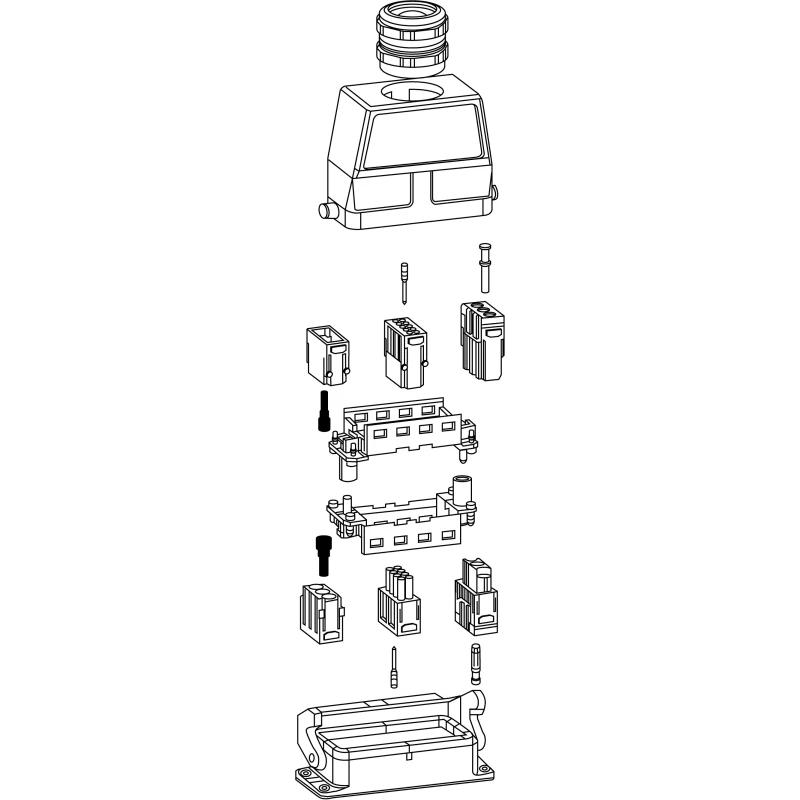

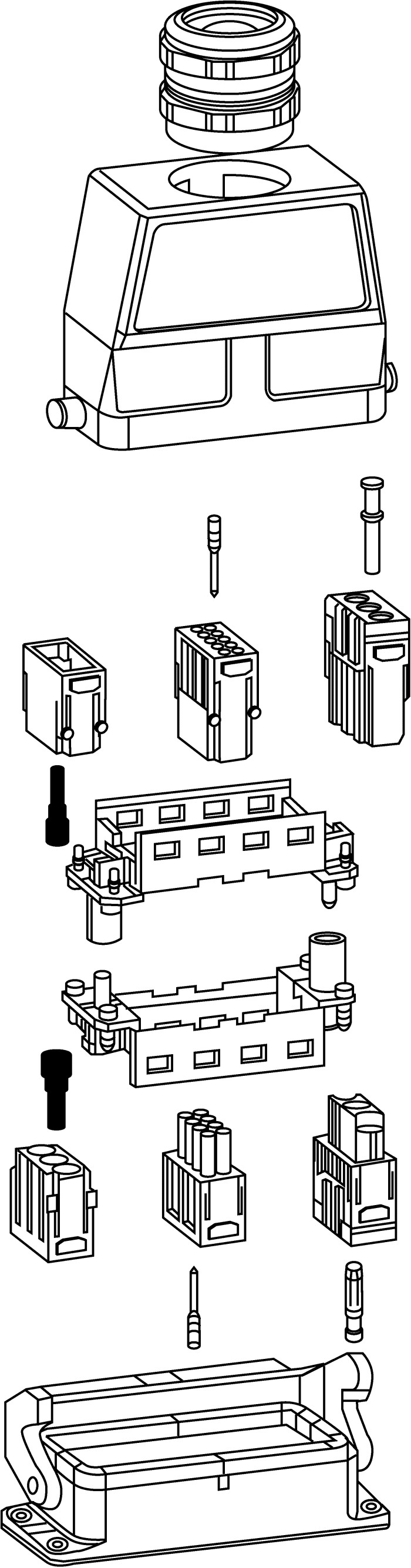

Compliance with IEC 60664-1 confirms its insulation coordination performance for high-voltage industrial settings. The connector integrates seamlessly with standard Han hoods and housings, enabling modular assembly in factory automation panels, motors, drives, switchgear, and onsite industrial cable terminations.
The durable build ensures sustained operation in demanding environments, ideal for providing reliable and secure power connections. This heavy-duty connector should be handled carefully, avoiding mating or unmating under electrical load, and polarisation is recommended when connecting multiple units inline to prevent incorrect connections.
Supports 100A current for heavy-duty applications. Copper alloy contacts plated with silver reduce resistance and heating. Accepts 10-25 mm² conductor sizes for flexible use. Complies with IEC 60664-1 for insulation coordination.
Modular design fits standard HAN Modular hoods and housings. Cable-mounted with straight orientation for easy installation. Suitable for industrial automation and machinery power distribution. Ideal for use in switchgear assemblies and onsite terminations.
Explore a range of high-quality heavy-duty power connectors at EnvMart to support your industrial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a sustained current of 100A, making it suitable for high power transmission applications.
It is designed to operate at a maximum voltage of 1000V, suitable for industrial electrical power distribution.
It accepts conductors sized between 10 mm² and 25 mm², allowing for flexible cable choices in various applications.
The contacts are made from copper alloy and are plated with silver to enhance conductivity and reduce contact resistance.
Yes, it is designed to integrate seamlessly with standard HAN Modular series hoods and housings for modular assembly.
It features a straight orientation and is cable-mounted, facilitating easy inline termination of cables.
This unit has 2 contacts, configured in a single-row, straight pole format.
It complies with IEC 60664-1 standards, ensuring proper insulation coordination and safety for high-voltage applications.
It is ideal for factory automation, machinery motors, and switchgear assemblies, providing reliable power connections in industrial settings.
It should be handled carefully, avoiding mating or unmating under electrical load, and polarisation is recommended when connecting multiple units inline.
The country of origin for this product is Germany, reflecting its industrial standards.
This model features a 2-pole format, designed for efficient power transmission in industrial applications.
