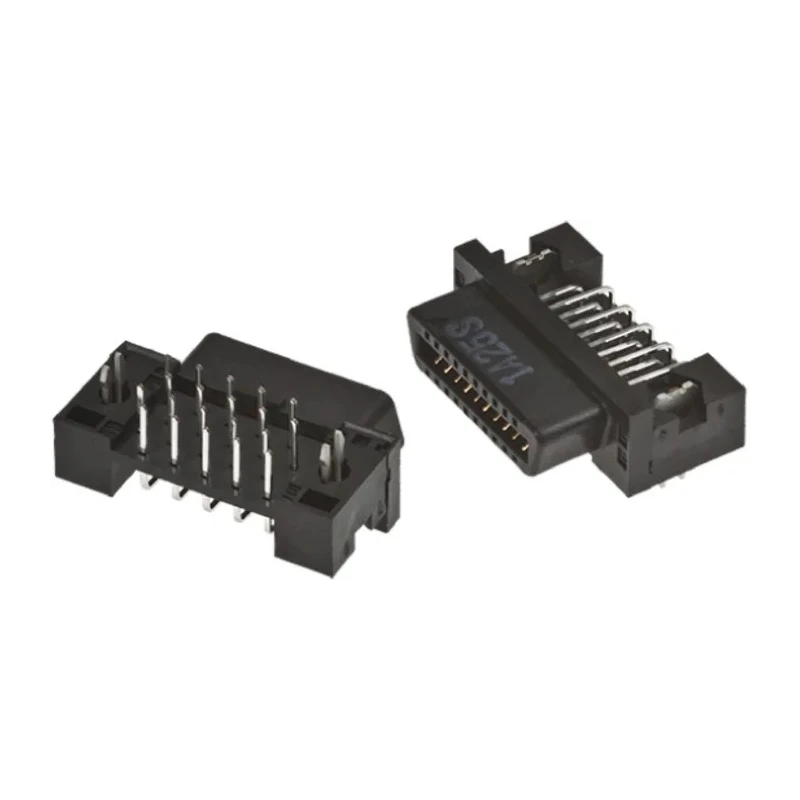

Hirose FX2 Series Right Angle Through Hole PCB Socket, 32-Contact, 2 Row, 1.27 mm Pitch, Solder FX2-32S-1.27DSL(71)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 125V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FX2-32S-1.27DSL(71) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | FX2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Stacking Height | 12mm |
Key Features
- Right angle orientation suitable for board-to-board connections.
- Polyamide housing material ensures robust insulation and durability.
- Gold-plated bronze contacts provide reliable low-resistance connections.
- Supports 500 mA current and 125 V voltage rating for moderate power applications.
- Operates efficiently within a temperature range from -55°C to 85°C.
- Stacking height of 12 mm for compact assembly designs.
- Solder termination type facilitates secure, long-lasting PCB connections.
- Ideal for computing and peripheral equipment applications.
Product Description
Hirose FX2-32S-1.27DSL(71) Right Angle Through Hole PCB Socket is a precision 32-contact connector configured in 2 rows with a 1.27 mm pitch.
The connector's polyamide housing is engineered for excellent electrical insulation and mechanical strength, while the gold-plated bronze contacts guarantee minimal contact resistance and long service life.
This PCB socket supports currents up to 500 mA and voltage ratings of 125 V, making it suitable for various electronic components and industrial applications including computing and peripheral equipment.
Featuring right angle orientation and a 12 mm stacking height, it optimizes board space and facilitates efficient multi-layer PCB design.
The solder termination type ensures reliable, durable electrical connections during the assembly process. The component operates reliably in harsh environments with operating temperatures ranging from -55°C to 85°C.
Right angle orientation suitable for board-to-board connections. Polyamide housing provides strong insulation and durability. Gold-plated bronze contacts ensure low-resistance and reliable connections. Rated for 500 mA current and 125 V voltage.
Operates across a broad temperature range from -55°C to 85°C. Stacking height of 12 mm aids compact PCB layouts. Solder termination type for secure PCB mounting. Designed for industrial, computing, and peripheral equipment applications.
The FX2 series combines precision engineering with versatile application compatibility, making it suitable for advanced electronics manufacturing, assembly, and repair operations. Explore the Electronics Components category on EnvMart for a wide selection of PCB Sockets and connectors meeting rigorous industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 500 mA.
It has a voltage rating of 125 V.
The contact pitch is 1.27 mm.
The stacking height is 12 mm, which aids in compact PCB layouts.
It features a solder termination type for secure PCB mounting.
The housing is made from polyamide, ensuring robust insulation and durability.
It operates reliably within a temperature range of -55°C to 85°C.
This model has 32 contacts arranged in 2 rows.
It has a right angle orientation suitable for board-to-board connections.
The contacts are made from bronze and are gold-plated to ensure low-resistance connections.
The country of origin for this model is Japan.
It is designed for various electronic components and industrial applications, including computing and peripheral equipment.
