| Country of Origin | India |
|---|---|
| Brand | Molex |
| Gender | Male |
| Contact Material | Brass |
| Series | 5006 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Plug 5025 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

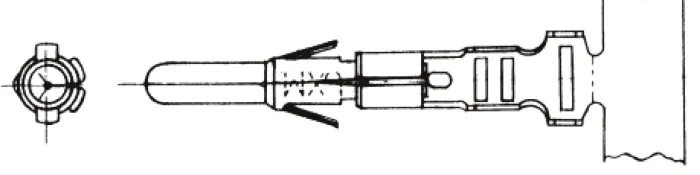

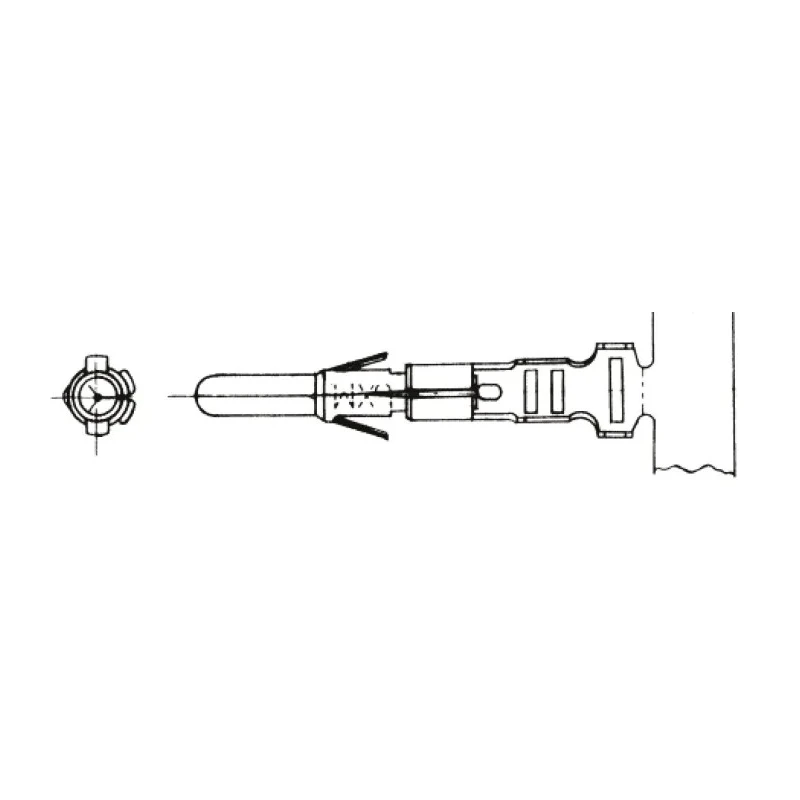

Molex 08-70-0002 is a Male Crimp Terminal from the 5006 Series suitable for use in electronic and electrical components. It supports wire sizes between 24 AWG minimum and 18 AWG maximum, with a wire size range of 0.2 mm² to 0.8 mm². This crimp terminal is engineered with brass contact material and tin plating for reliable electrical conductivity and corrosion resistance.
Designed for industrial and commercial use, it offers a maximum operating temperature of 105°C and a minimum operating temperature of -40°C, allowing it to perform well in varying operating conditions. Its maximum contact resistance is rated at 10 milliohms, ensuring minimal signal loss and excellent electrical connection integrity.
The termination type is crimp, providing secure mechanical and electrical connection when used with compatible 5025 plug housings. This product excels in applications such as PCB connectors, wire housings, and crimp contacts within electronic assemblies, power distribution settings, and control systems.
The terminal supports efficient manufacturing and assembly workflows by accommodating readily available wire gauges commonly used in electronic harnesses and devices. Constructed with brass material ensuring electrical durability.
Contact plating is tin for corrosion resistance. Designed for 24 to 18 AWG wire sizes, covering small to medium wire diameters. Operates reliably within -40°C to 105°C temperature limits. Termination is via crimping for mechanical stability and electric continuity.
Maximum contact resistance rated at 10 milliohms. Compatible with Molex 5025 plug housings. Used in industrial, manufacturing, electronic assembly, and HVAC electrical systems. This Molex terminal is an ideal choice for professionals requiring high-quality crimp contacts for wire-to-wire connections in industrial and commercial electronic applications.
Browse the Electronics Components category at EnvMart for more Molex series Crimp Contacts and related connectors.
