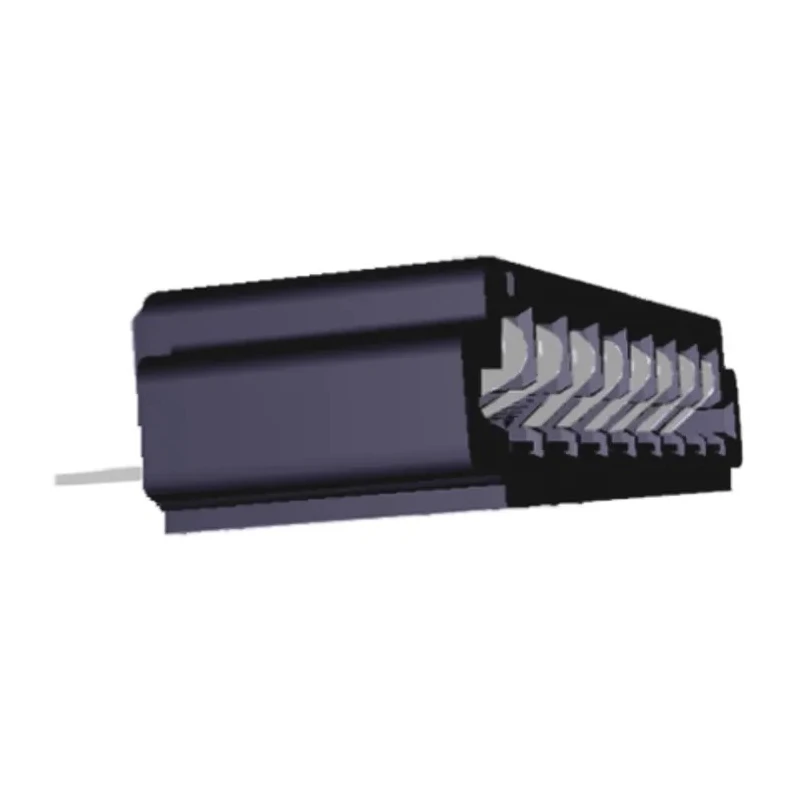

TE Connectivity Trio-Mate 2.54 mm Pitch 12 Way Straight Female FPC Connector Solder 6-487509-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Trio-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Copper |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | LIF |
Key Features
- Features a through hole mount type for secure PCB installation.
- Constructed with phosphor bronze contacts and tin over copper plating for reliable conductivity.
- Polyethylene terephthalate housing offers UL 94V-0 flame resistance.
- Operates within a wide temperature range from -55°C to 105°C.
- Supports 1 row and provides a low insertion force (LIF) connection.
- Suitable for multiple insertions with high extraction force and cable thickness compatibility of 0.13 to 0.38 mm.
- Connector is designed for reuse up to 25 times maintaining consistent performance.
- Compatible with flat flexible cable (FFC), flexible etched circuitry (FPC), or membrane switch circuitry.
Product Description
TE Connectivity 6-487509-1 Trio-Mate 2.54 mm Pitch 12 Way Straight Female FPC Connector is engineered for flexible printed circuit applications requiring durable, high-performance connections.
This FPC Connector features a through hole mount type and is fitted with phosphor bronze contacts plated with tin over copper to ensure excellent conductivity and corrosion resistance. The housing is made of polyethylene terephthalate, meeting UL 94V-0 flammability standards, providing safety and reliability.
Designed with a 2.54 mm centerline (pitch) and 12 contacts arranged in a single row, it supports cable thicknesses from 0.13 to 0.38 mm. The connector boasts a low insertion force while providing a high extraction force, making it suitable for multiple reuse cycles up to 25 times without degradation in performance.
It operates flawlessly across a minimum temperature of -55°C up to a maximum of 105°C, making it versatile for various environmental conditions. Through hole mount type ensures secure PCB attachment. Phosphor bronze contact material with tin over copper plating for electrical efficiency.
Polyethylene terephthalate housing meets UL 94V-0 fire resistance standards. Supports flexible etched circuitry and membrane switch cables. Low insertion force (LIF) enables easy assembly. Reliable performance across a broad temperature range.
Single row contact arrangement with 12 contacts for precise connectivity. Connector designed for repeatable use and high extraction force. Industry applicability includes electronics manufacturing, industrial control systems, and commercial electronic equipment.
This product notably supports industrial, electronic assembly, manufacturing, and automation sectors, enhancing production efficiency by providing a robust, reusable connector solution.
For further component sourcing in electronic connectors and accessories, explore the extensive EnvMart catalog to find complementary parts and solutions that fit your technical and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.54 mm.
This model features 12 contacts arranged in a single row.
The maximum operating temperature is 105°C.
It utilizes a through hole mount type for secure PCB installation.
The housing is made of polyethylene terephthalate, and the contacts are constructed from phosphor bronze with tin over copper plating.
The minimum operating temperature is -55°C.
It supports cable thicknesses from 0.13 mm to 0.38 mm.
It is designed for reuse up to 25 times while maintaining consistent performance.
This connector uses solder termination type.
It is suitable for flat flexible cables (FFC), flexible etched circuitry (FPC), or membrane switch circuitry.
It features a low insertion force (LIF) connection, making assembly easier.
The polyethylene terephthalate housing meets UL 94V-0 flammability standards.
