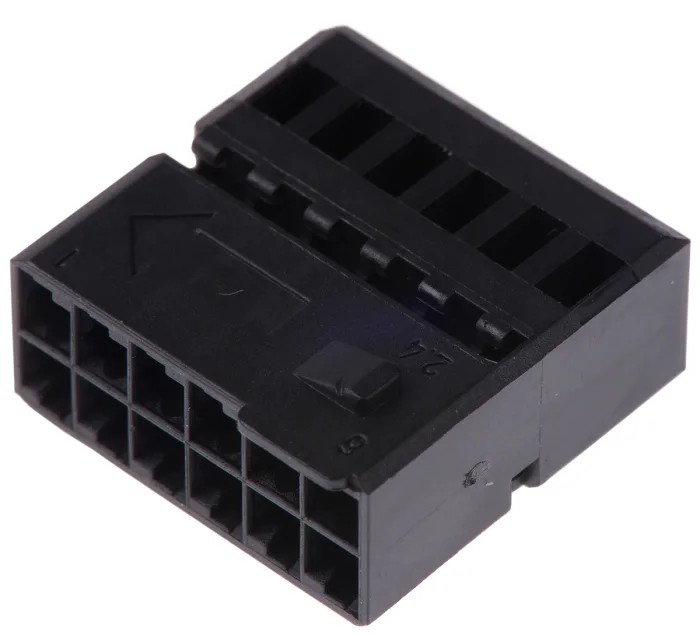

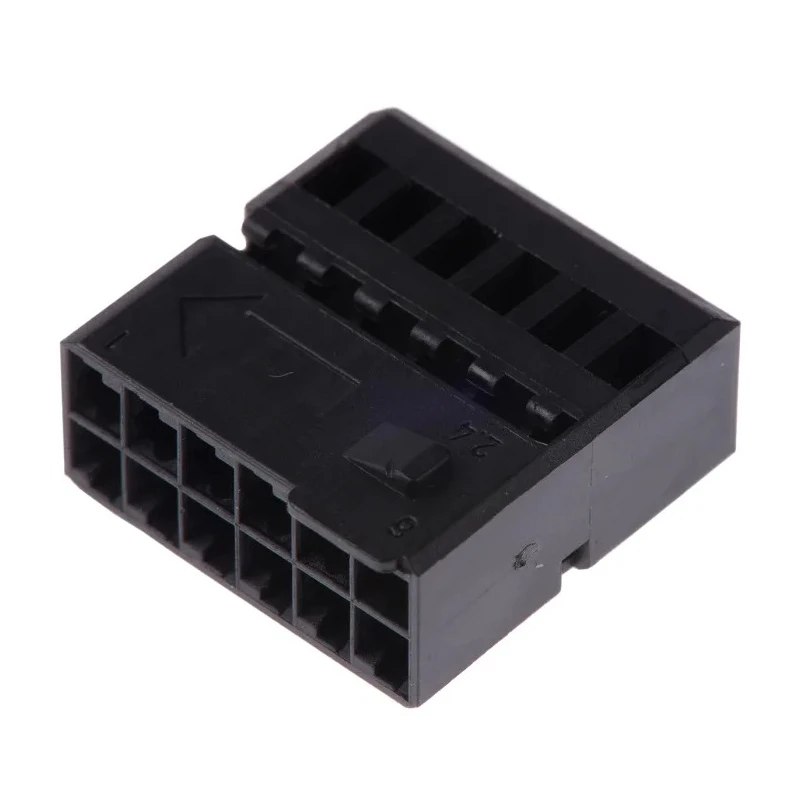

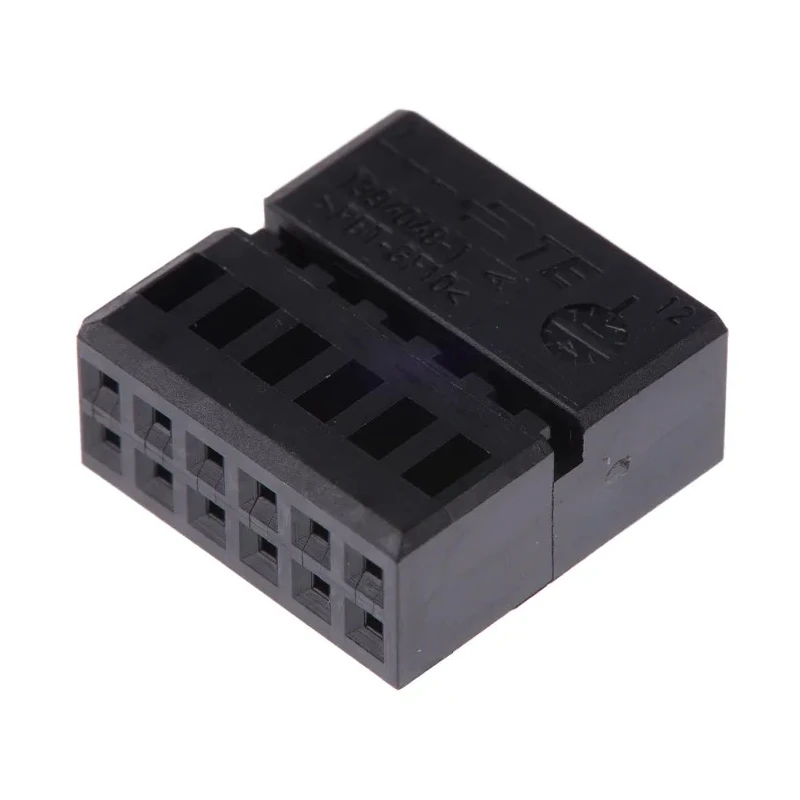

TE Connectivity Micro Quadlok System Automotive Connector Male Black Cable 12 Way Crimp Termination 1394048-1

TE Connectivity 1394048-1 Micro Quadlok System Automotive Connector Male Black Cable 12 Way Crimp Termination is designed for demanding automotive environments requiring secure and compact electrical connections. This connector housing is part of the MQS 2.54 mm interconnection system, providing a high-density, robust construction to meet automotive functional requirements.

The connector housing is fabricated from polybutylene terephthalate, ensuring durability and resistance to environmental stresses. It features a black color finish and 12 contacts arranged across two rows, which are crimp terminated onto cables, enabling reliable electrical interfacing.

Operating temperature ranges from -40°C to 120°C, making it suitable for various automotive powertrain, safety, convenience, and chassis applications. The design incorporates polarization and keying features to prevent mismating and stainless steel locking lances to ensure high primary terminal locking force, securing contacts firmly within the housing.

Compact dimensions of 16mm width, 16mm depth, and 7.8mm height allow integration into tight spaces commonly found in automotive systems. The connector complies with rigorous industry standards such as RoHS, REACH, ELV, and UL 94 HB for safety and environmental compliance.

This male connector is intended for cable mount applications and does not include the cord. Sealed variations and additional wire seals are available separately for enhanced waterproof protection. Accessories such as covers, levers, and retainer housings support varied assembly needs.

Features 12 contacts arranged in 2 rows for secure connections. Designed with crimp termination for reliable cable interfacing. Constructed from durable polybutylene terephthalate housing in black color. Operates efficiently between -40°C and 120°C temperature range.

Includes 2.54mm pitch with polarization and keying to prevent mismating. Meets industry standards including RoHS, REACH, ELV, and UL 94 HB. Compact dimensions: 16mm width, 16mm depth, and 7.8mm height. Offers high primary terminal locking force via stainless steel locking lances.

Suitable for powertrain, safety, security, and driver information automotive systems. Male gender connector designed for cable mount installation without included cord.

Ideal for industrial, automotive manufacturing, and electrical assembly applications where reliable, high-density connectors are required. Browse EnvMart for additional Automotive Connectors and related accessories.
