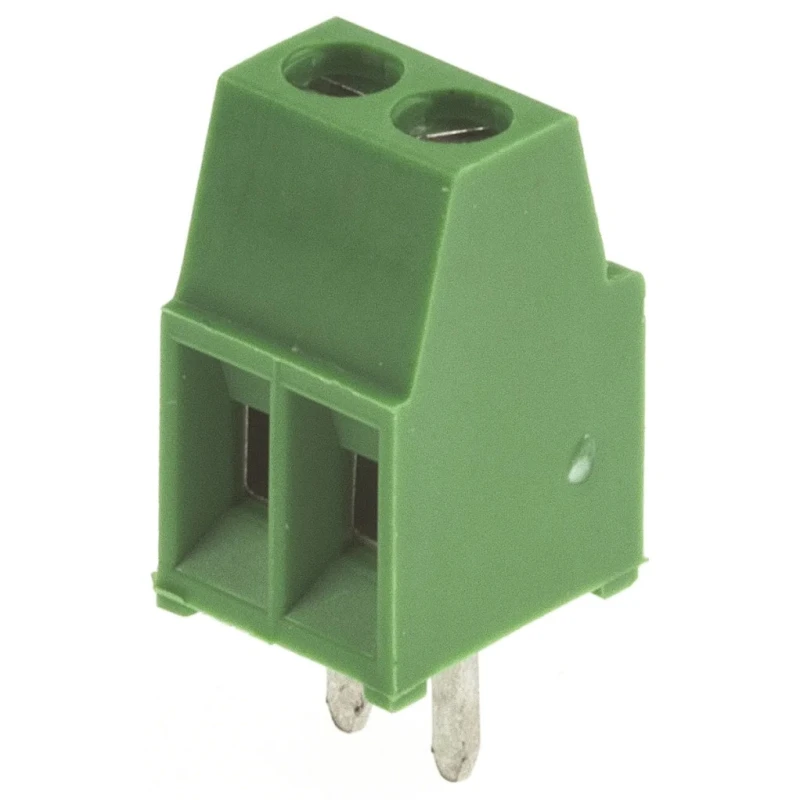

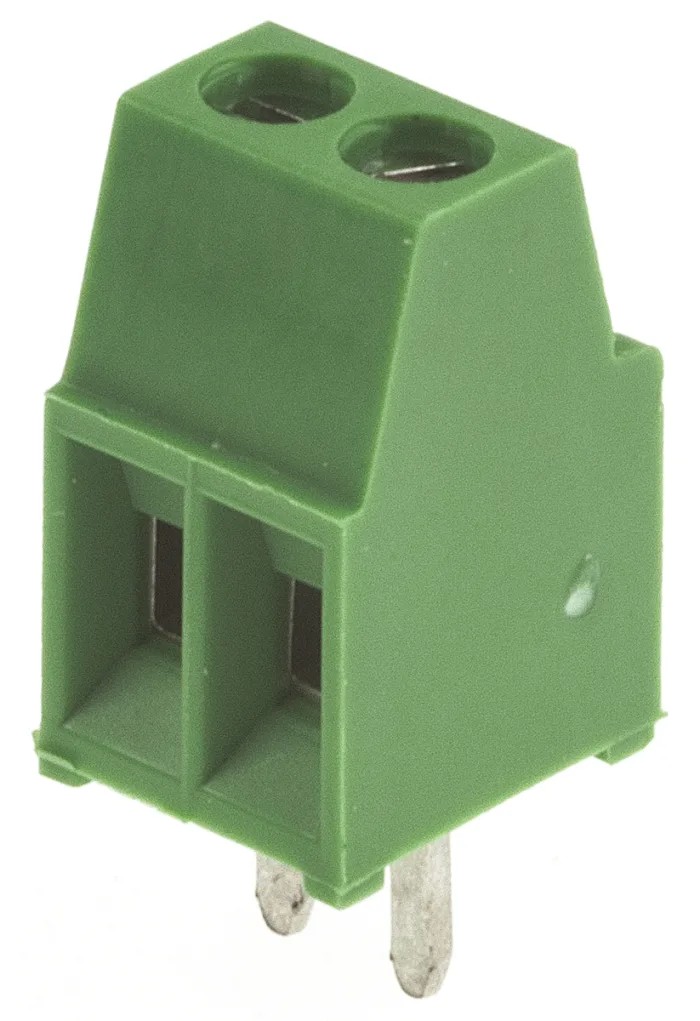

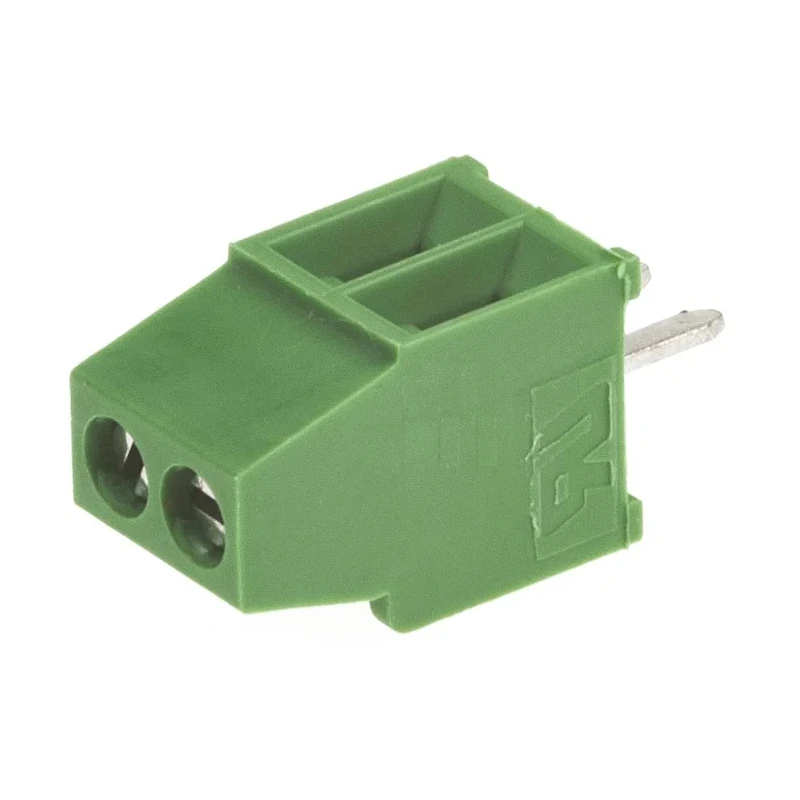

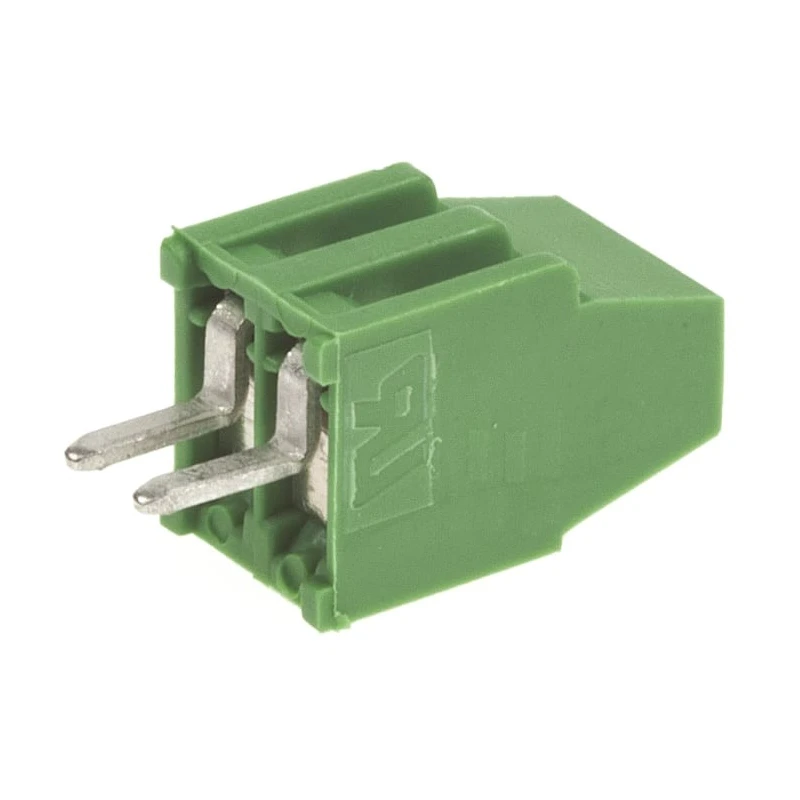

TE Connectivity Buchanan Series 2-Contact 2.54 mm Pitch 1 Row PCB Terminal Block 282834-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 10A |
| Length | 5.54mm |
| Model | 282834-2 |
| Depth | 10mm |
| Width | 6.5mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Designed for printed circuit board (PCB) mounting applications.
- Features green polyamide housing for durability and insulation.
- Accepts wire sizes ranging from 0.05 mm² to 1.3 mm² (30 to 16 AWG).
- Rated for 10A current and 150V AC voltage for reliable operation.
- Includes M1.6 nickel plated brass screw terminals with tin-plated contacts.
- Compact dimensions with a length of 5.54 mm, width of 6.5 mm, and depth of 10 mm.
- Straight orientation and male connector gender for ease of use.
- Ideal for industrial, electronic, and power connector applications.
Product Description
TE Connectivity 282834-2 Buchanan Series PCB Terminal Block is designed for reliable and efficient printed circuit board connections in various industrial and electronic applications. It features a 2-contact configuration with a pitch of 2.54 mm and a single row layout, making it compact and space-efficient.
The terminal block housing is made of high-quality green polyamide 6.6 GF, ensuring robust mechanical strength and excellent electrical insulation properties. The connector uses M1.6 nickel plated brass screw terminals combined with tin-plated contacts, providing corrosion resistance and long service life.
This PCB terminal block supports wire sizes ranging from 0.05 mm² up to 1.3 mm² (equivalent to 30 to 16 AWG), suitable for a broad range of wiring requirements. It operates at a current rating of 10A and a voltage rating of 150V AC, ensuring dependable electrical performance under typical operating conditions.
Its straight orientation and male connector gender provide convenient assembly and secure connections. Compact dimensions of 5.54 mm length, 6.5 mm width, and 10 mm depth allow installation in space-constrained environments.
Applications include industrial controls, electronic devices, power distribution, and circuit board assembly. This product meets UL 94V-0 standards for flammability. Designed for PCB mounting with 2 contacts and 1 row configuration.
Green polyamide housing for electrical insulation and durability. M1.6 nickel plated brass screw terminals with tin-plated contacts. Supports wire ranges from 0.05 mm² to 1.3 mm². Rated for 10A current and 150V AC voltage.
Compact size: 5.54 mm length, 6.5 mm width, 10 mm depth. Straight orientation with male gender connector design. Suitable for industrial, electronic, and power applications. Explore more high-quality PCB Terminal Blocks and connectors from TE Connectivity on EnvMart to meet your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 10A and a voltage of 150V AC, ensuring reliable electrical performance.
It accepts wire sizes ranging from 0.05 mm² to 1.3 mm², which corresponds to 30 to 16 AWG.
The dimensions of this unit are 5.54 mm in length, 6.5 mm in width, and 10 mm in depth.
The housing is made of green polyamide, providing durability and electrical insulation.
This model features a 2-contact configuration, designed for efficient connections on a PCB.
It has a straight orientation and is designed as a male connector for ease of use during assembly.
Yes, this model is ideal for various industrial applications, including industrial controls and power distribution.
It includes M1.6 nickel plated brass screw terminals with tin-plated contacts for secure connections.
This terminal block is part of the Buchanan Series, known for its compact and efficient design.
The country of origin for this terminal block is India.
This product meets the UL 94V-0 standard for flammability, ensuring safety in applications.
It is suitable for applications such as circuit board assembly and electronic device connections.
