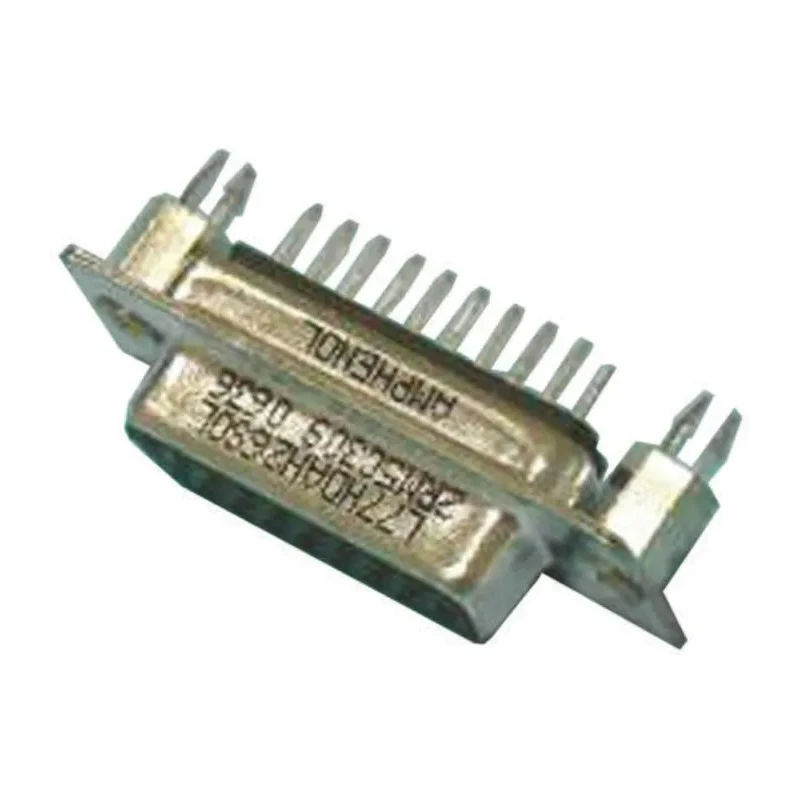

Amphenol Communications Solutions High Density 26 Way Straight Through Hole Thermoplastic D-Sub Connector 250V 3A L77HD
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | L77HD |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Bronze |
| Series | L77HD |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DA-26 |
Key Features
- Features 26 contacts with 4 to 40 UNC threaded inserts for secure mounting.
- Provides a rated current of 3A and voltage rating of 250V.
- Constructed with bronze contacts plated in gold for reliable conductivity.
- Designed as a female connector with solder termination type for through hole mount type.
- Operates in temperature range from -55°C to 105°C making it suitable for diverse environments.
- Connector shell size is DA-26 with a straight orientation ensuring compatibility with D-Sub applications.
- Manufactured in China under the L77HD series with no certifications listed.
Product Description
Amphenol Communications Solutions L77HD model 26 Way Straight Through Hole D-Sub Connector features a high density receptacle with a thermoplastic housing designed for reliable PCB mounting applications.
This connector is female gender with bronze contacts plated in gold, providing excellent electrical resistance and durability. Its rated current of 3A and voltage rating of 250V make it suitable for a range of electronic and industrial uses.
The connector orientation is straight and mounts through hole with a secure 4 to 40 UNC threaded insert hardware ensuring stable installation on PCB boards. Its operating temperature range from -55°C minimum to 105°C maximum supports performance in harsh environments.
The DA-26 sized shell offers compatibility with standard D-Sub connector fittings common in communication, industrial controls, and electronic assembly sectors.
This product is manufactured in China as part of the L77HD series. Though it does not carry specific certifications, it meets industrial grade quality for electronic component integrations.
Features 26 contacts with 4 to 40 UNC threaded inserts for secure mounting. Provides 3A current rating and 250V voltage rating for robust performance. Bronze contacts plated in gold improve conductivity and corrosion resistance.
Female connector gender with solder termination supports reliable connections. Operating temperature range from -55°C to 105°C suits industrial and communication use cases. Straight orientation and DA-26 shell size ensures broad fitment compatibility.
High density thermoplastic housing ensures durability and long service life.
This D-Sub connector is ideal for applications in electronics manufacturing, communications equipment, industrial solutions, and PCB assembly where reliable, rugged connections are essential.
Explore more high-quality D-Sub Connectors and components in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 250V and a current rating of 3A, making it suitable for various electronic and industrial applications.
It operates within a temperature range of -55°C to 105°C, allowing it to function effectively in diverse environments.
The connector features 26 contacts, providing ample connectivity for various applications.
This unit is designed for through hole mounting, ensuring secure installation on PCB boards.
It is constructed with a thermoplastic housing and bronze contacts plated in gold, enhancing conductivity and corrosion resistance.
The connector has a DA-26 shell size, ensuring compatibility with standard D-Sub fittings.
This model is a female connector, which is suitable for various electronic connections.
It features a solder termination type, providing reliable connections during installation.
The connector includes 4 to 40 UNC threaded inserts for secure mounting on PCB boards.
Yes, its design and specifications make it suitable for industrial solutions, communications equipment, and PCB assembly.
This product is manufactured in China as part of the L77HD series.
The connector has a straight orientation, which is standard for many D-Sub applications.
