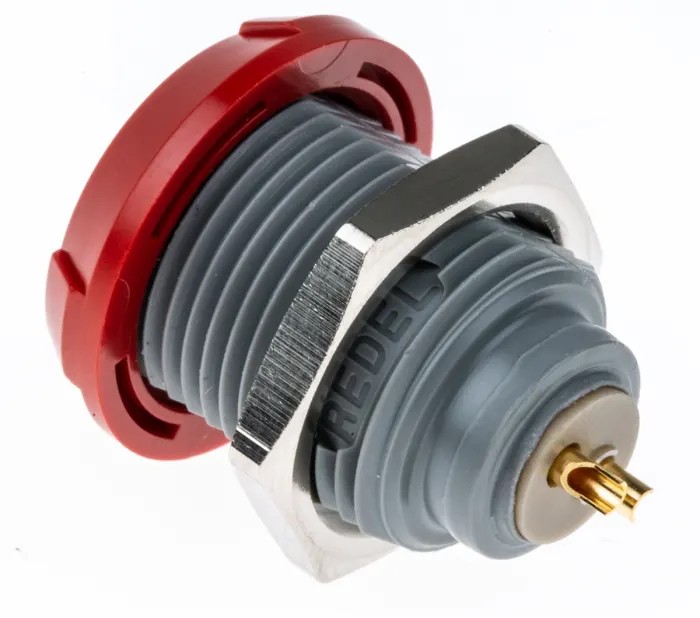

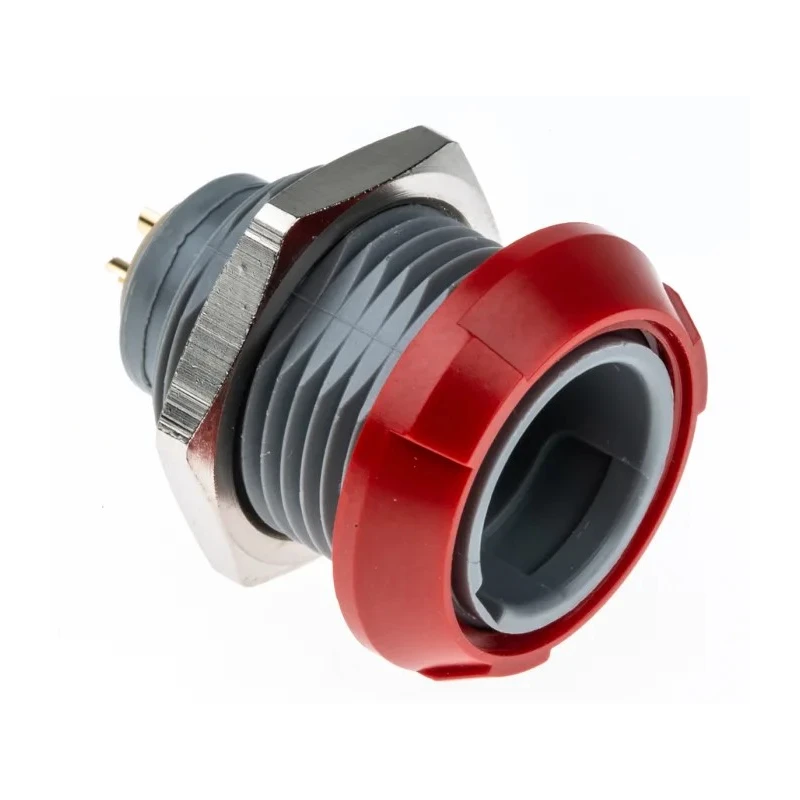

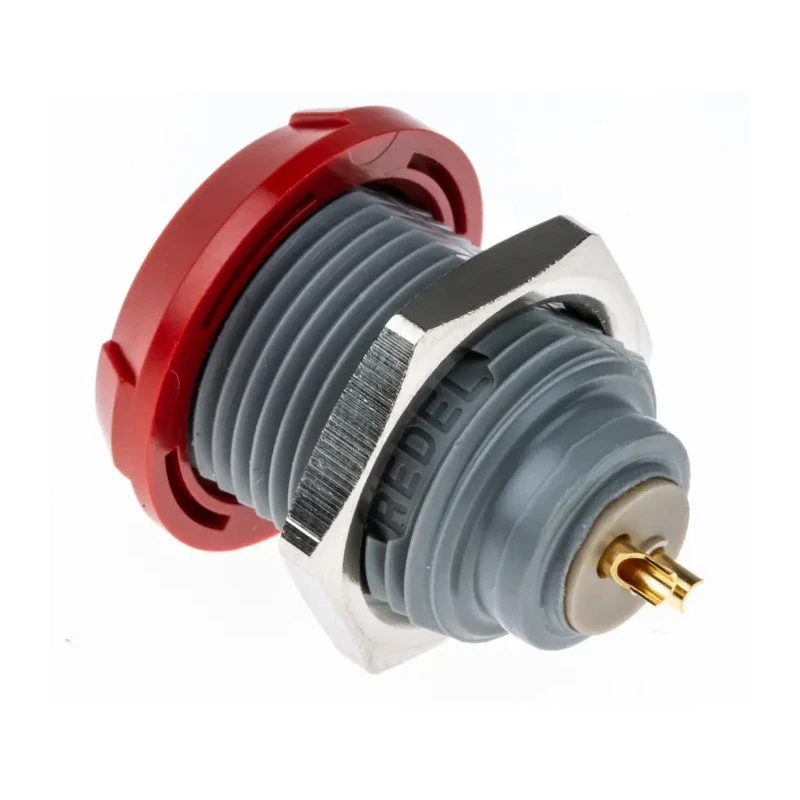

LEMO Circular Connector 2 Contacts Panel Mount Socket Female 600V 10A Polymer Housing IP50 Redel P Series PKG.M0.2GL.LR

The LEMO PKG.M0.2GL.LR is a high-quality circular connector that provides reliable connections with 2 contacts in a panel mount socket format designed for industrial usage. Rated at 600 volts and 10 amps, it is engineered to deliver excellent electrical performance with a polymer housing that offers durability and light weight.

This connector incorporates LEMO's classic push-pull self-latching Redel P series mechanism, preventing accidental disconnection and ensuring secure mating. The straight orientation and shell size 1 are optimized for compact panel mount applications.

The female contacts are gold plated over copper with nickel underplating, providing resistance to corrosion and maintaining signal integrity over at least 1000 mating cycles. The solder termination method facilitates robust cable attachment, and the built-in collet accommodates cable diameters between 4 mm and 5.2 mm.

Operating temperatures from -50°C to 150°C allow use in a wide range of industrial, laboratory, and manufacturing environments. The housing material is polysulphone, recognized for its UL94V-0 flammability rating and capability to endure sterilization by gas or steam up to 20 cycles, making it suited for demanding processes.

This connector is ideal for sectors such as industrial automation, instrumentation, test equipment, and power distribution systems. Its IP50 rating protects against dust ingress, enhancing reliability in controlled environments.

The connector features a straight orientation with a polymer housing for ruggedness and lightweight usage. Contacts are female with gold plating over copper for corrosion resistance and durability. It supports solder termination and uses the Redel P series push-pull self-latching mechanism.

The operating temperature range is from -50°C to 150°C suitable for harsh environments. The connector has a shell size of 1 and a keyed mating type for secure connections. Its polysulphone housing meets UL94V-0 flammability rating and allows sterilization by gas or steam up to 20 times.

Designed and manufactured in Switzerland, ensuring premium quality and reliability.

Choose the LEMO PKG.M0.2GL.LR circular connector for dependable panel mount socket connections with advanced features tailored for professional industrial applications. Browse the Electronics & Electricals category and Industrial Circular Connectors collection for more premium connectors from LEMO on EnvMart.
