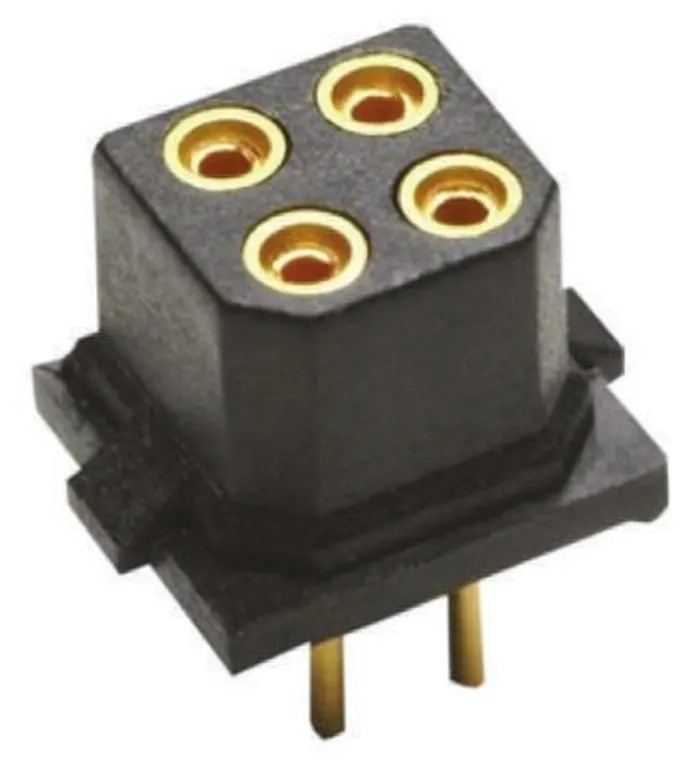

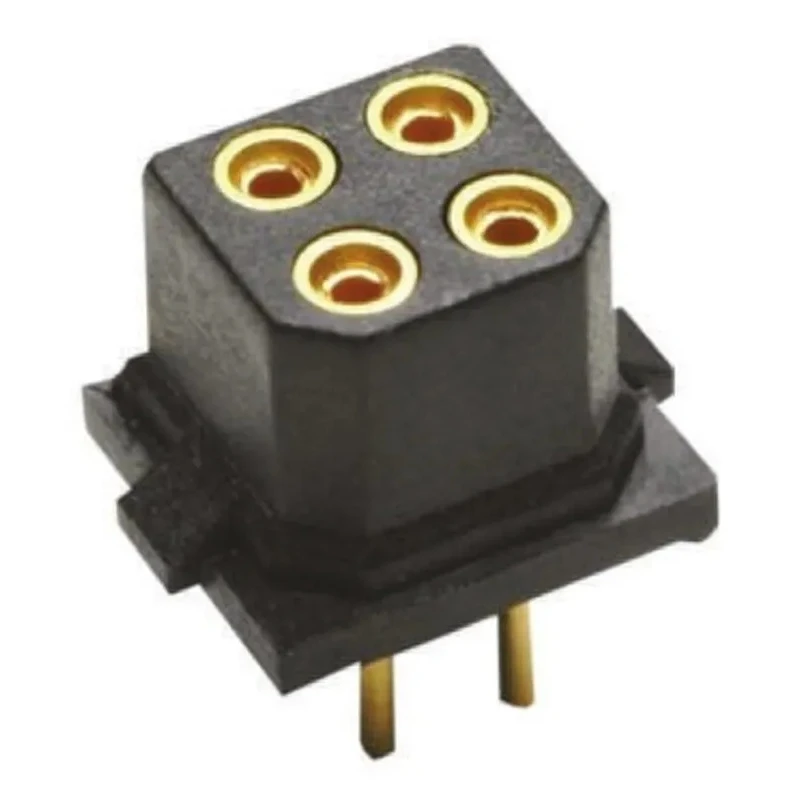

HARWIN M80 Series Straight Through Hole PCB Socket 10-Contact 2 Row 2 mm Pitch Solder M80-8501042
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M80-8501042 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Beryllium Copper Alloy |
| Series | M80 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with beryllium copper alloy contacts plated in gold for enhanced conductivity and durability.
- Housing made of nylon with through hole mounting and straight orientation ensures secure PCB installation.
- Rated for 12A current and 120V voltage, suitable for demanding electronic applications.
- Operates reliably between -55°C and 125°C for use in various environmental conditions.
- Features a high reliability connector system with 2 rows and 10 female contact points.
- Compatible with board-to-board connector systems for streamlined assembly.
- Designed to withstand high mating cycles without degradation, ideal for harsh environments.
- Manufactured in the United Kingdom assuring quality and standards compliance.
Product Description
HARWIN M80-8501042 Series Straight Through Hole PCB Socket is a 10-contact, 2-row connector with a precise 2 mm pitch and solder termination. The socket is engineered with high-quality beryllium copper alloy contacts and gold plating to ensure superior conductivity, resistance to corrosion, and excellent durability. Its nylon housing and through hole mount type with a straight orientation make it highly suitable for reliable PCB mounting in both commercial and industrial electronics.
Rated for 12A current and 120V voltage, this PCB socket is designed to maintain stable electrical connections even in harsh environmental conditions, operating from -55°C to 125°C. The M80 series' four-finger contact design and polarised mouldings provide secure connectivity, minimizing the risk of disconnects under vibration, shock, or acceleration, making it ideal for demanding applications.
The connector system is compatible with standard board-to-board configurations and is designed for high mating cycle durability, perfect for applications requiring frequent disassembly and assembly without performance loss. This product is manufactured in the United Kingdom, ensuring compliance with relevant industrial standards and quality benchmarks.
High reliability four-finger beryllium copper contacts with gold plating for excellent conductivity and lifespan. Durable nylon housing with through hole mount and straight orientation. Supports 10 female contacts arranged in 2 rows with 2 mm pitch.
Electrical rating up to 12A current and 120V voltage. Temperature range from -55°C to 125°C for wide environmental adaptability. Polarised mouldings for secure and foolproof connection alignment. Meets industrial and electronic sector demands with robust construction.
This HARWIN M80 PCB Socket series is well-suited for electronic manufacturing, telecommunications equipment, industrial controls, and other applications that demand reliable, durable board-to-board connectivity solutions. Explore EnvMart's extensive selection of PCB connectors and sockets to find the best fit for your technical requirements and ensure optimal device performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M80-8501042 PCB socket is rated for a maximum current of 12A.
This PCB socket has a voltage rating of 120V.
The contacts are made from beryllium copper alloy and are plated in gold, while the housing is constructed from nylon.
It operates reliably between -55°C and 125°C, making it suitable for various environmental conditions.
The M80-8501042 features 10 female contacts arranged in 2 rows.
This model uses a through hole mounting type with a straight orientation.
Yes, it is designed to be compatible with standard board-to-board connector systems for streamlined assembly.
The socket utilizes a solder termination type for secure connections.
The contacts are arranged with a pitch of 2 mm.
The four-finger contact design provides secure connectivity, minimizing the risk of disconnects under vibration, shock, or acceleration.
This PCB socket is manufactured in the United Kingdom, ensuring compliance with relevant industrial standards.
It is well-suited for electronic manufacturing, telecommunications equipment, and industrial controls that require reliable board-to-board connectivity.
