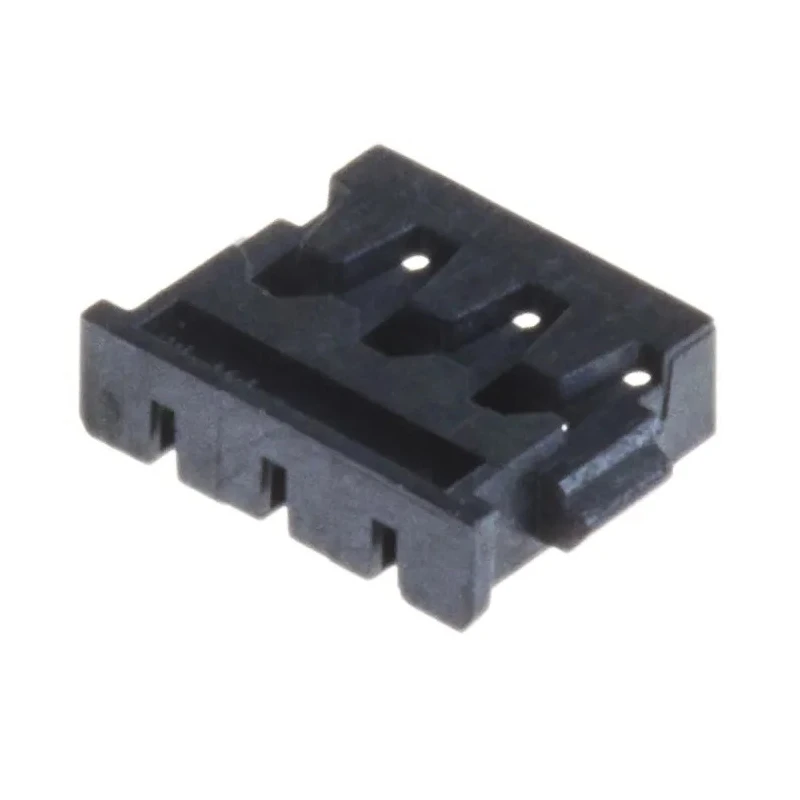

Molex Pico-Ezmate Female Connector Housing 1.2 mm Pitch 3 Way 1 Row Straight 78172-0003
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 3.5mm |
| Width | 1.2mm |
| Mount Type | Cable |
| Housing Material | Liquid Crystal Polymer |
| Series | Pico-Ezmate |
| Number of Rows | 1 |
| Pitch | 1.2mm |
| For Use With | Pico-EZmate Wire-to-Board Connector |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- Uses a compact 1.2 mm pitch for tight packaging applications.
- Features an ultra low profile for space-saving designs.
- Constructed from black UL 94V-0 liquid crystal polymer for high durability.
- Includes polarization, keying, friction locking, and audible click for secure mating.
- Suitable for mobile phones, notebook PCs, portable audio players, and compact mobile devices.
- Compatible with Pico-Ezmate 78171 header connectors and 700-0830 crimp socket terminals.
- Mates vertically with header to facilitate easy assembly in production lines.
- Made in Malaysia with RoHS compliant halogen-free resin materials.
Product Description
Molex 78172-0003 Pico-Ezmate Female Connector Housing is a high-quality wire-to-board connector housing designed for professional electronic assembly needs. This connector housing features a 1.2 mm pitch, three contacts arranged in a single row, and a straight orientation suitable for cable mount applications.
Manufactured from black UL 94V-0 rated liquid crystal polymer (LCP), the housing ensures excellent durability and electrical insulation conforming to modern safety standards. The ultra low profile design with a 3.5 mm length supports compact device architectures commonly seen in mobile phones, notebook computers, portable audio devices, and other compact mobile electronics.
The connector includes integral polarization, keying, friction locking, and an audible click upon mating to prevent incorrect assembly and ensure connection reliability. The Pico-Ezmate receptacle housing mates vertically with matching 78171 series Pico-Ezmate headers, which are typically supplied in embossed tape for automated insertion equipment.
This part is halogen-free and RoHS compliant, addressing the needs of environmentally conscious manufacturing.
Typical industrial and commercial applications include mobile communication devices, consumer electronics, and other high-density PCB assembly tasks requiring a durable and secure high-performance connector housing solution.
Compact 1.2 mm pitch wire-to-board connector housing. 3 way, 1 row configuration with straight orientation. Housing material is UL 94V-0 liquid crystal polymer for high flame resistance. Designed for cable mount with integrated locking and keying features.
Mates vertically with Pico-Ezmate 78171 headers, supporting automated assembly. Suitable for dense packaging in compact electronic devices. Halogen-free and RoHS directive compliant material. Manufactured in Malaysia ensuring quality control.
Explore more electronics connector solutions under the Connector Housing category at EnvMart to find compatible accessories and complementary products necessary for your electronic design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.2 mm, designed for compact applications.
This model features three contacts arranged in a single row.
The length of this connector housing is 3.5 mm.
The housing is constructed from black UL 94V-0 liquid crystal polymer, ensuring high durability and electrical insulation.
This connector housing is designed for cable mount applications.
It is compatible with Pico-Ezmate 78171 header connectors.
The connector includes polarization, keying, friction locking, and an audible click to prevent incorrect assembly.
Yes, this model is halogen-free and compliant with RoHS directives.
It is suitable for mobile phones, notebook PCs, portable audio players, and other compact mobile devices.
The orientation of this connector housing is straight.
This connector housing is manufactured in Malaysia.
It mates vertically with the header, which facilitates easy assembly in production lines.
