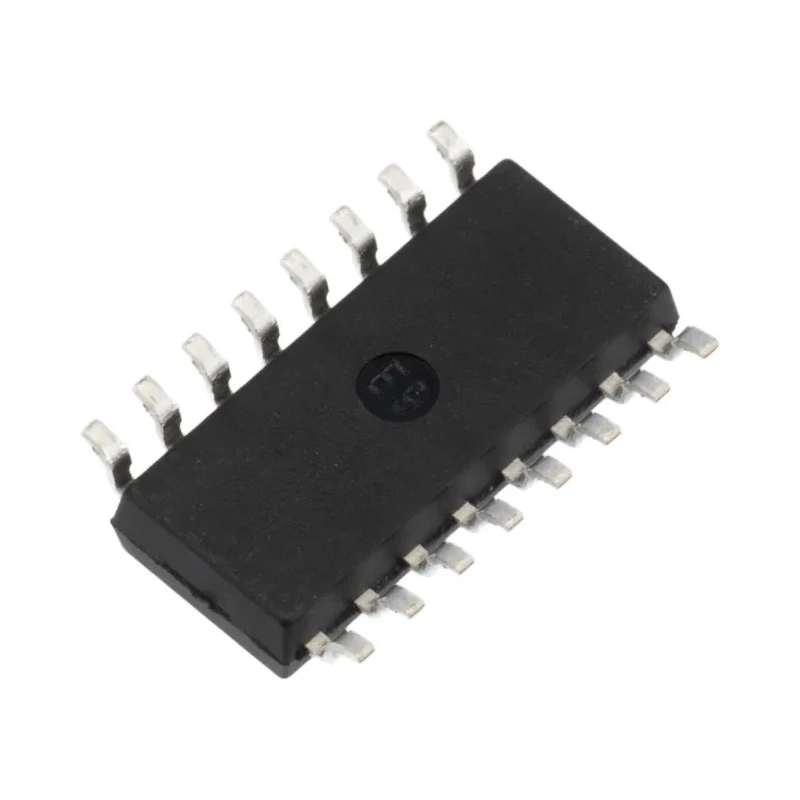

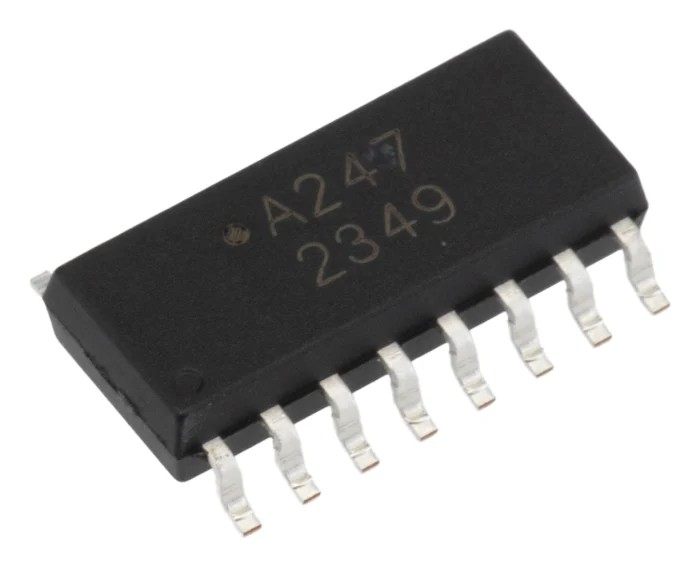

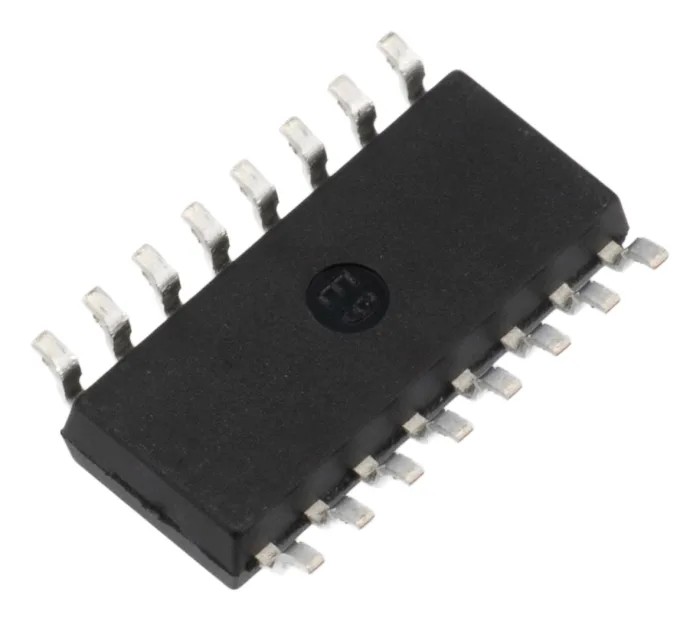

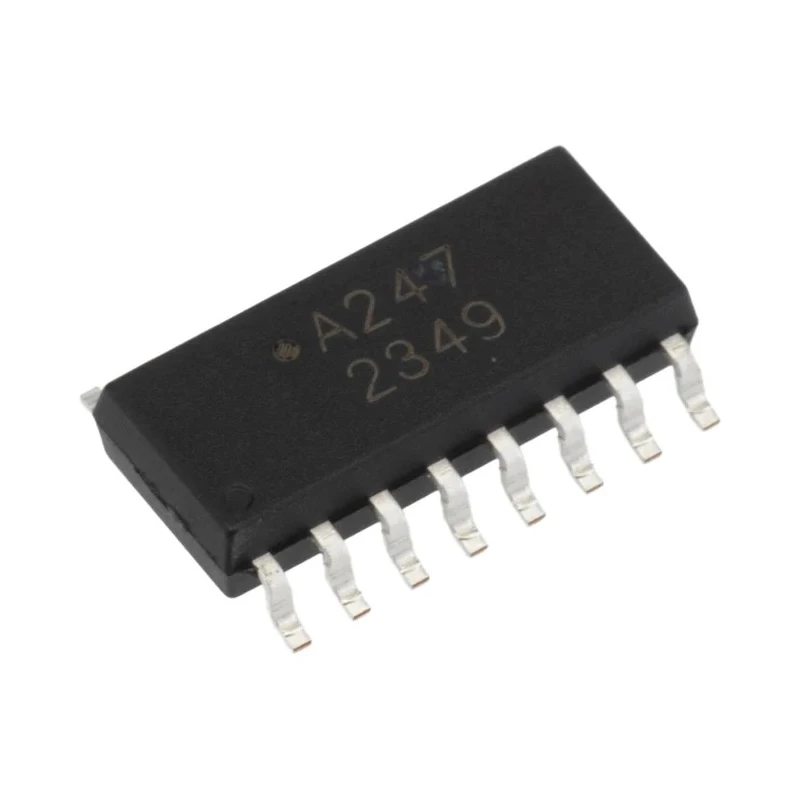

Broadcom DC Input 2-Channel Optocoupler, Surface Mount, 16-Pin SOIC ACPL-247-500E
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ACPL-247-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 110°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 5mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, IEC, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 100% |
| Automotive Standard | AEC-Q100 |
| Isolation Voltage | 3.75kV |
Key Features
- Provides 3.75kV isolation voltage for high-voltage separation and safe operation.
- Features 2 isolated channels and 16-pin SOIC package for precise dual-path signal isolation.
- Ensures fast digital switching with 2μs typical rise time and 3μs typical fall time.
- Operates within an extended temperature range of -55°C to 110°C for harsh environments.
- Maximum forward voltage is 1.4V, limiting input drive requirements.
- Supports 5mA maximum input current with DC input current type.
- Supplied on tape & reel packaging for automated assembly processes.
- Meets UL, IEC, EN standards and AEC-Q100 automotive standard qualification.
Product Description
Broadcom ACPL-247-500E DC Input 2-Channel Optocoupler is designed to provide galvanic isolation between the DC input and output circuits, essential for robust signal integrity and safety in industrial and automotive electronics applications. This device features a surface-mount 16-pin SOIC package with two isolated channels for efficient board-level signal transfer with electrical separation.
The optocoupler offers a high isolation voltage of 3.75kV, ensuring excellent protection against high voltages. Its current transfer ratio ranges from 100% to 600%, providing a wide signal gain range suitable for various signal conditioning needs. The 2μs typical rise time and 3μs typical fall time enable fast digital switching essential in high-speed circuits.
Operating over a wide temperature range from -55°C to 110°C, it is suitable for use in harsh environmental conditions often encountered in automotive and industrial applications. The maximum forward voltage of 1.4V reduces input drive demands, and a maximum input current of 5mA keeps power consumption low.
The device complies with important safety and quality standards, including UL, IEC, and EN approvals, as well as the automotive-grade AEC-Q100 standard. Packaging on tape and reel supports automated pick-and-place assembly, improving manufacturing efficiency.
High isolation voltage of 3.75kV for electrical safety. Dual 2-channel configuration supports isolated dual-path signal transmission. Fast switching with 2μs rise and 3μs fall times. Wide operating temperature window from -55°C to 110°C.
Low input drive requirements with 1.4V maximum forward voltage. Maximum input current of 5mA for DC input compatibility. Certified under UL, IEC, EN, and meets automotive AEC-Q100 standard. Surface mount SOIC package in tape & reel for automated assembly.
This Optocoupler is ideal for automotive control modules, DC input measurement systems requiring reliable isolation, low-current sensor interfacing to logic circuits, and power management and monitoring units. Its design supports applications demanding rugged, precise electrical isolation and automated production line compatibility.
Explore more electronic components and optoelectronic devices from EnvMart to support your industrial and automotive electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Broadcom ACPL-247-500E provides a high isolation voltage of 3.75kV, ensuring electrical safety in applications requiring high-voltage separation.
This model features a typical rise time of 2μs and a typical fall time of 3μs, enabling fast digital switching for high-speed circuits.
It operates within an extended temperature range of -55°C to 110°C, making it suitable for harsh environmental conditions.
The ACPL-247-500E features 2 isolated channels, allowing for efficient dual-path signal isolation.
The maximum input current for this optocoupler is 5mA, which helps to keep power consumption low.
It is supplied in tape and reel packaging, which supports automated pick-and-place assembly processes.
The maximum forward voltage is 1.4V, which limits the input drive requirements for this device.
It meets several important safety and quality standards, including UL, IEC, EN, and the automotive AEC-Q100 standard.
The current transfer ratio for this optocoupler ranges from 100% to 600%, providing a wide signal gain range.
This device features a surface mount design, specifically in a 16-pin SOIC package.
It is ideal for automotive control modules, DC input measurement systems, and low-current sensor interfacing to logic circuits.
The ACPL-247-500E belongs to the ACPL series of optocouplers, which are designed for reliable signal isolation.
