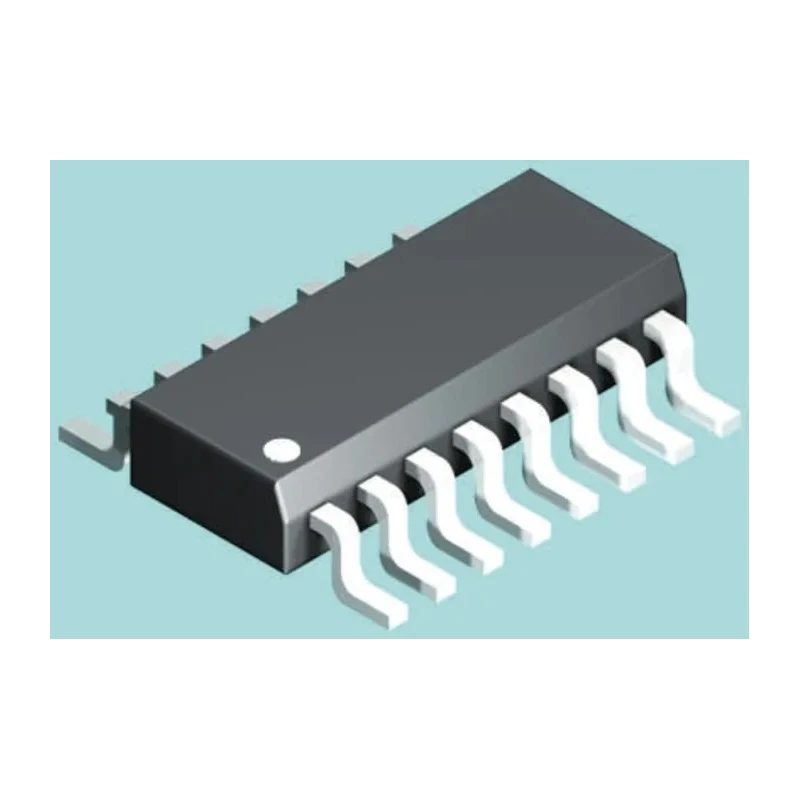

Broadcom DC Input 3-Channel Surface Mount Optocoupler, 16-Pin SO Package ACSL-6300-00TE

Broadcom ACSL-6300-00TE is a high-performance DC input 3-channel optocoupler designed for surface mounting applications. Encased in a 16-pin SO package, it provides precise logic output signals suitable for a variety of electronics and power control systems.

This optocoupler operates over an extended temperature range of -40°C to 125°C, making it ideal for industrial environments, laboratory instruments, automation solutions, and HVAC control applications where reliable signal isolation is paramount.

The device features a maximum forward voltage of 1.8 volts with a maximum input current rating of 15mA to maintain efficiency and safety in low-voltage DC circuits. It provides typical rise and fall times of 35ns and 12ns respectively, supporting fast switching performance.

Designed to meet international standards and approvals including CSA, IEC, and UL, it assures compliance and quality for demanding industrial usage.

The optocoupler’s isolation voltage withstand is rated at 2.5kVrms, ensuring robust electrical isolation between input and output, which is crucial in protecting circuit components from high voltage spikes and electrical noise.

The package type is surface mount Small Outline (SO) with 16 pins, enabling compact PCB layout designs in electronic devices and systems. Three independent input channels with DC input. Typical rise time of 35 nanoseconds supports rapid signal transmission.

Maximum operating temperature of 125°C for high-temperature applications. 16-pin SO surface mount package ensures compact assembly. Compliance with CSA, IEC, and UL standards provides assurance of quality and safety. 2.5kVrms isolation voltage suitable for industrial control and power circuits.

Typical fall time of 12 nanoseconds enables rapid signal switching.

This product is suited for use in electronic component assemblies, power supplies, industrial automation, communication equipment, manufacturing systems, and laboratory instrumentation requiring robust and efficient optocoupling solutions.
