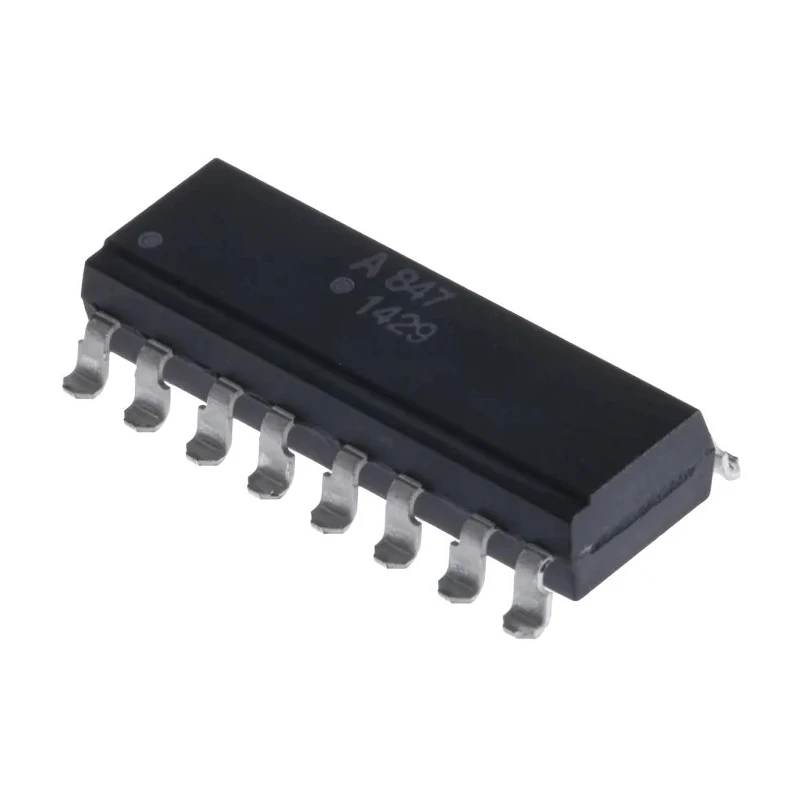

Broadcom DC Input 4-Channel Surface Mount Optocoupler 16-Pin PDIP ACPL-847-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-847-300E |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 30°C |
| Maximum input current | 50mA |
| Number Of Channels | 4 |
| Standards/Approvals | UL 1577, IEC/EN/DIN EN 60747-5-5, CSA |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 50% |
| Isolation Voltage | 5000V ac |
Key Features
- Features 4 input channels for multi-channel isolation.
- Operates with DC input current and a maximum forward voltage of 1.4V.
- High isolation voltage of 5000V AC ensures protection from high voltage surges.
- Typical rise and fall times of 4μs and 3μs respectively for fast response.
- Maximum input current rated at 50mA for robust input drive capability.
- Works within an operating temperature range of 30°C to 100°C.
- Complies with UL 1577, IEC/EN/DIN EN 60747-5-5 and CSA safety standards.
- Transistor output type suitable for power sequence control and Input/Output interface applications.
Product Description
Broadcom ACPL-847-300E DC Input 4-Channel Optocoupler is a surface mount optocoupler housed in a 16-pin PDIP package designed for industrial and electronic signal isolation applications. This optocoupler provides four independent input channels, allowing isolated transmission of multiple signals with high reliability.
The device features a maximum forward voltage of 1.4V and supports DC input current with a maximum rating of 50mA per input channel. It offers a wide isolation voltage of 5000V AC which protects sensitive circuitry in industrial, manufacturing, and power sequence control systems.
Its typical electrical characteristics include fast switching with rise times of around 4μs and fall times of approximately 3μs, allowing for efficient signal processing. The operating temperature range of 30°C to 100°C makes it suitable for various environmental conditions commonly found in industrial and commercial electronic equipment.
Certified to UL 1577, IEC/EN/DIN EN 60747-5-5, and CSA standards, the ACPL-847-300E ensures compliance with rigorous safety and reliability requirements. It is widely used in industrial automation, power supply interface circuits, and input/output isolation modules to enhance system safety and performance.
Four isolated input channels enable multi-signal communication. Surface mount PDIP package facilitates easy board integration. DC input with maximum input current of 50mA supports varied signal strengths. High isolation voltage of 5000V AC for secure electrical separation.
Fast switching times increase operational efficiency. Wide operating temperature range suits diverse industrial environments. Compliance with international safety standards for reliability.
This optocoupler is a critical component in electronic designs requiring galvanic isolation to protect sensitive circuits from voltage spikes, noise, and voltage transients. It is ideal for use in industrial control systems, power supplies, and interface applications.
Explore more products in the Optocoupler category and related components from Broadcom at EnvMart for your electronic component needs.
