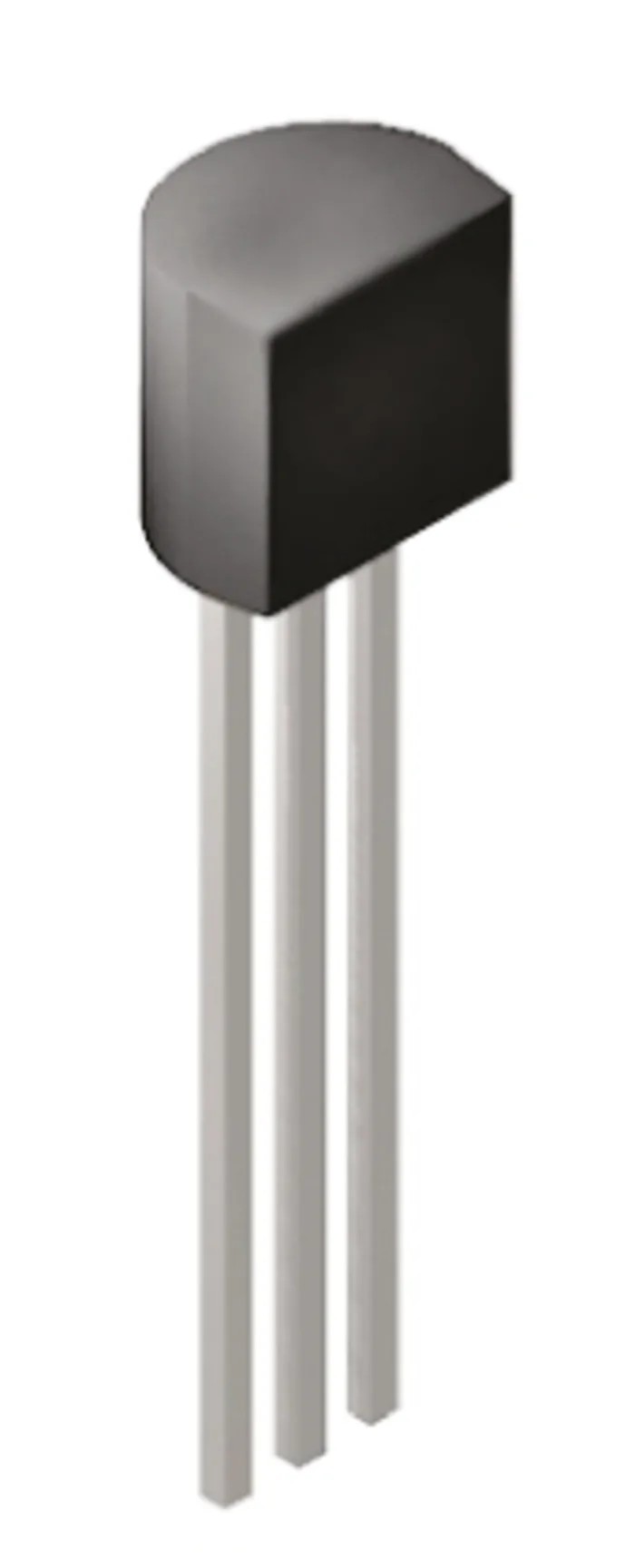

onsemi Fixed Positive Voltage Regulator MC78L15ACPG, 16.7V Minimum Input, 35V Maximum Input, TO-92 3-Pin MC78L15ACPG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC78L15ACPG, Voltage Regulator 35V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC78L15ACPG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 4.4mA |
| Minimum Input Voltage | 16.7V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Monolithic integrated circuit designed as a fixed-voltage regulator for diverse applications.
- Incorporates internal thermal overload protection and current limiting features.
- Requires no external components for operation, allowing simplified circuit design.
- Mount type is through hole with a compact TO-92 package.
- Automotive standard certified to AEC-Q100 for high reliability.
- Quiescent current of 4.4mA ensures low power consumption.
- Operation up to a maximum temperature of 125°C, suitable for harsh environments.
Product Description
The onsemi MC78L15ACPG is a fixed positive voltage regulator belonging to the MC78L00A family, packaged in a TO-92 3-pin format designed for through-hole mounting. It offers a regulated output voltage suitable for numerous electronics and power management applications requiring stable voltage supply within input voltage range 16.7V to 35V.
This monolithic IC includes built-in safety features such as internal thermal overload protection and current limiting, which ensure reliable operation by protecting the device and circuit against excessive temperature or current conditions. Its quiescent current is a low 4.4mA, optimizing energy efficiency.
The compact TO-92 package measures approximately 5.2mm in length, 4.19mm in width, and 5.33mm in height, facilitating use in tight PCB layouts. The device’s maximum operating temperature of 125°C makes it fit for industrial, automotive, and consumer electronics where elevated temperature tolerance is required.
The MC78L15ACPG complies with the automotive standard AEC-Q100, indicating suitability for automotive electronic systems needing compliance with stringent reliability tests.
Common applications include local voltage regulation on cards or boards, embedded power supplies, and any electronic circuit requiring a robust 15V fixed positive voltage supply. No external components are necessary for its normal function, although external adjustments for voltage or current can be implemented if desired.
Monolithic fixed-voltage regulator IC. Internal thermal shutdown and current limit protection. Through-hole TO-92 package for simple PCB mounting. Low quiescent current reduces power usage. Automotive compliant to AEC-Q100 standard.
Input voltage range: 16.7V to 35V. Maximum operating temperature: 125°C. Compact dimensions suitable for dense circuitry.
Ideal for use in industrial electronics, automotive systems, power management circuits, and consumer electronic devices requiring dependable voltage regulation. Explore more high-quality voltage regulators in the Electronics & Electricals > Power Management ICs > Voltage Regulator category on EnvMart for comprehensive sourcing options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 16.7V to 35V.
It can operate at a maximum temperature of 125°C, making it suitable for harsh environments.
The quiescent current for this unit is 4.4mA, which helps optimize energy efficiency.
This model is packaged in a TO-92 format, designed for through-hole mounting.
Yes, it incorporates internal thermal overload protection and current limiting features for reliable operation.
The dimensions are approximately 5.2mm in length, 4.19mm in width, and 5.33mm in height.
Yes, it complies with the automotive standard AEC-Q100, indicating its suitability for automotive electronic systems.
This voltage regulator is suitable for local voltage regulation on cards or boards, embedded power supplies, and any electronic circuit requiring a robust 15V fixed positive voltage supply.
It has a pin count of 3, which is typical for its TO-92 package.
This model belongs to the MC78Lxx series of voltage regulators.
No external components are necessary for its normal function, simplifying circuit design.
The polarity of this voltage regulator is positive.
