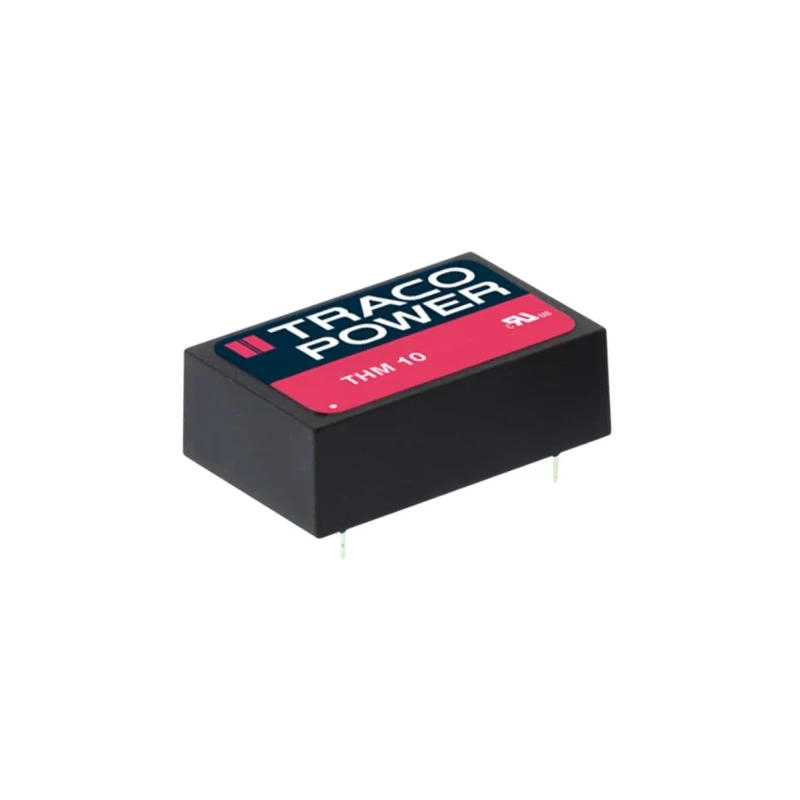

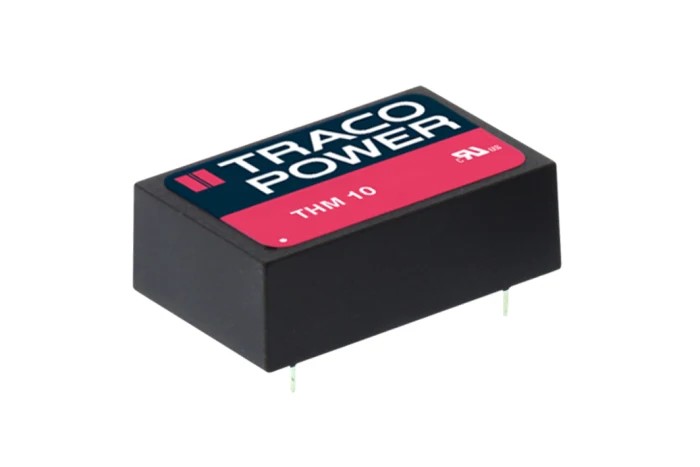

TRACOPOWER Medical Grade 10W DC/DC Converter 5V DC 1A, 9V DC Input 4.5V Input PCB Mount THM 10-0521
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 10 DC/DC Converter, 5V dc/ 1 A, 9V |
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 31.8mm |
| Model | THM 10-0521 |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | THM 10 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3850000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -5V dc |
| Wide 2 | 1 input voltage |
Key Features
- Provides dual outputs with reinforced 5000 VAC isolation for safety.
- Compact DIP-24 package with PCB mounting suitable for embedded systems.
- High efficiency of 83% ensures low power loss and cooler operation.
- Operational in extreme temperatures from -40°C to +90°C for harsh environments.
- Compliance to IEC/EN/ES 60601-1 3rd edition for medical equipment electrical safety.
- Low leakage current below 2 μA for sensitive electronic applications.
- Designed and produced under ISO 13485 quality management system.
- Ideal for use in medical, transportation, control, measurement and IGBT driver circuits.
Product Description
TRACOPOWER THM 10-0521 is a high-reliability medical grade 10 Watt DC/DC converter designed for demanding industrial and medical applications. It offers a regulated 5V DC output at 1A from a dual input voltage range of 4.5V to 9V DC. The device comes in a compact DIP-24 plastic package designed for PCB mounting, making it suitable for embedded power supply solutions.
This converter series features reinforced isolation with 5 kV AC RMS rated (5000 VAC) separation between input and output, ensuring high safety requirements are met, especially in medical applications requiring 2 x Means Of Patient Protection (MOPP). The unit complies with IEC/EN/ES 60601-1 3rd edition standards and is supported by an ISO 14971 risk management file under the ISO 13485 quality system.
With an efficiency rating of 83%, the THM 10-0521 converter minimizes thermal losses and is rated for operation in a wide ambient temperature range from -40°C to +90°C, enabling use in diverse environments including transportation, industrial measurement, control systems, and IGBT driver circuits. Leakage current is extremely low at less than 2 microamps, making it safe for sensitive medical and measurement devices.
The device includes dual outputs and occupies dimensions of 31.8mm length, 20.3mm width, and 10.2mm depth. It offers a 2:1 input voltage ratio and an MTBF of 3,850,000 hours, ensuring long operational life and reliability in critical systems.
Wide 2:1 input voltage compatibility allows flexibility in power source selection. 5 kV reinforced isolation protects user and equipment in medical contexts. Compact DIP-24 package designed for easy PCB integration. Robust IEC/EN/ES 60601-1 certification guarantees medical safety compliance.
Extended temperature range supports harsh industrial and outdoor conditions. Low leakage and high efficiency optimize device performance and safety. Quality management under ISO 13485 ensures reliability and traceability.
Ideal for medical devices, transportation systems, control units, and power drivers. MTBF of 3.85 million hours underlines device dependability. Explore more in our Electronics & Electricals category at EnvMart for a broad range of certified DC/DC Converters tailored to industrial and medical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC at a maximum output current of 1A.
It operates within a dual input voltage range of 4.5V to 9V DC.
The efficiency of this unit is rated at 83%, minimizing thermal losses during operation.
The converter has dimensions of 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It features reinforced isolation with an isolation voltage of 5kV AC, ensuring safety in medical applications.
It can operate in extreme temperatures ranging from -40°C to +90°C.
This unit provides dual outputs, making it versatile for various applications.
It complies with IEC/EN/ES 60601-1 3rd edition standards for medical equipment electrical safety.
The MTBF for this converter is 3,850,000 hours, indicating a long operational life.
It is designed for PCB mounting, suitable for embedded systems.
It is ideal for use in medical devices, transportation systems, control units, and IGBT driver circuits.
The leakage current is extremely low, below 2 microamps, making it safe for sensitive applications.
