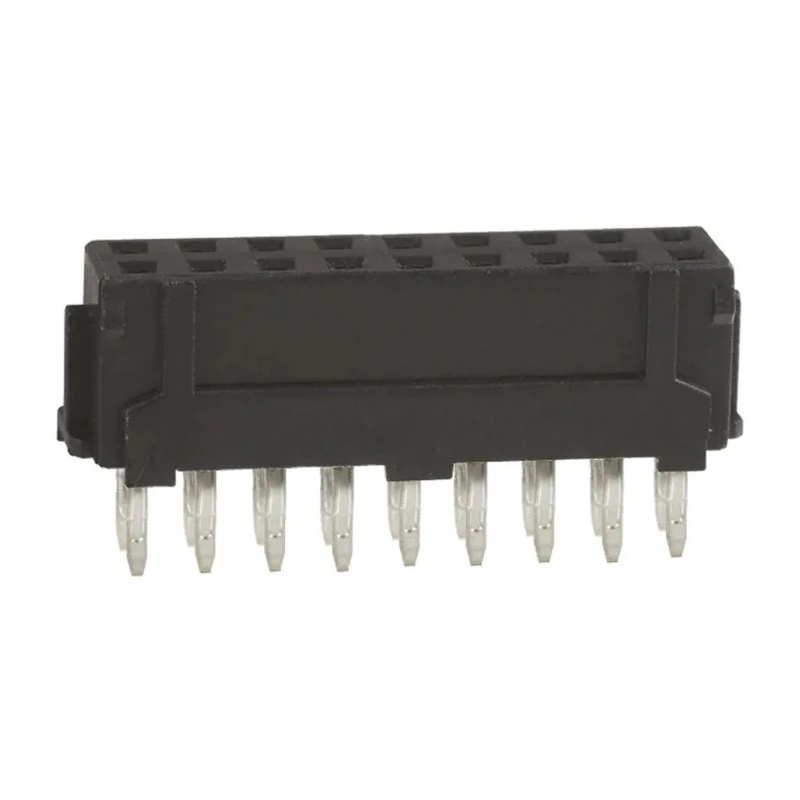

Hirose PCB Socket 18-Contact 2 Row 2 mm Pitch Straight Through Hole Solder DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
Key Features
- Compact double row design saves PCB space with less than 5 mm depth.
- Polyamide housing material ensures durable insulation and mechanical stability.
- Contact material is brass with tin plating for reliable electrical connectivity.
- Designed for solder termination with through hole mounting method.
- Supports board-to-board connector systems with 2A current rating.
- Operating temperature range from -30°C to 85°C for diverse applications.
- Includes guide ribs to prevent incorrect insertion and twisting when mating.
- Metal fittings on SMT variants enhance retention and solder joint reliability.
Product Description
Hirose DF11-18DS-2DSA(05) PCB Socket is a high-quality, straight through hole connector designed for board-to-board applications. Featuring 18 contacts arranged in 2 rows with a 2 mm pitch, this socket provides a compact and space-saving solution with a depth of less than 5 mm.
The socket's polyamide housing offers excellent insulation and durability. Contact pins are crafted from brass and plated with tin, ensuring strong electrical conductivity and resistance to corrosion. It is designed for solder termination and through hole mounting, resulting in secure mechanical and electrical connections.
Operating reliably within a temperature range of -30°C to 85°C, this connector is suitable for industrial and electronic assembly environments requiring consistent performance. The inclusion of guide ribs minimizes the risk of mismating or twisting during connection, improving installation accuracy.
This DF11 series socket mates with compatible DF11 headers and is widely used in portable devices, digital cameras, LCD displays, car navigation systems, digital video recorders, access control units, and measurement instruments, where space saving and multiple signal connections are critical.
Compact double row design saves PCB space with less than 5 mm depth. Polyamide housing provides reliable insulation and mechanical strength. Brass contacts with tin plating for stable connectivity. Solder termination with through hole mounting method.
Supports board-to-board connections at 2A current capacity. Wide operating temperature range from -30°C to 85°C. Guide ribs prevent incorrect insertion and twisting. Metal fittings increase retention and prevent solder peeling.
Manufactured in Malaysia with strict quality controls.
Select Hirose DF11 PCB sockets for robust, space-efficient board-to-board interconnections in demanding electronic and industrial applications. Explore the range of PCB Sockets at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 2A.
The operating temperature range for this socket is from -30°C to 85°C.
The housing material is polyamide, while the contact material is brass with tin plating.
This model features 18 contacts arranged in 2 rows.
It is designed for solder termination with a through hole mounting method.
The pitch size of the contacts in this socket is 2 mm.
This socket supports a board-to-board connector system.
This product is manufactured in Malaysia.
The orientation of this socket is straight.
The voltage rating for this socket is 250V.
The socket includes guide ribs that minimize the risk of incorrect insertion and twisting during mating.
This socket is suitable for applications in portable devices, digital cameras, LCD displays, car navigation systems, and measurement instruments.
