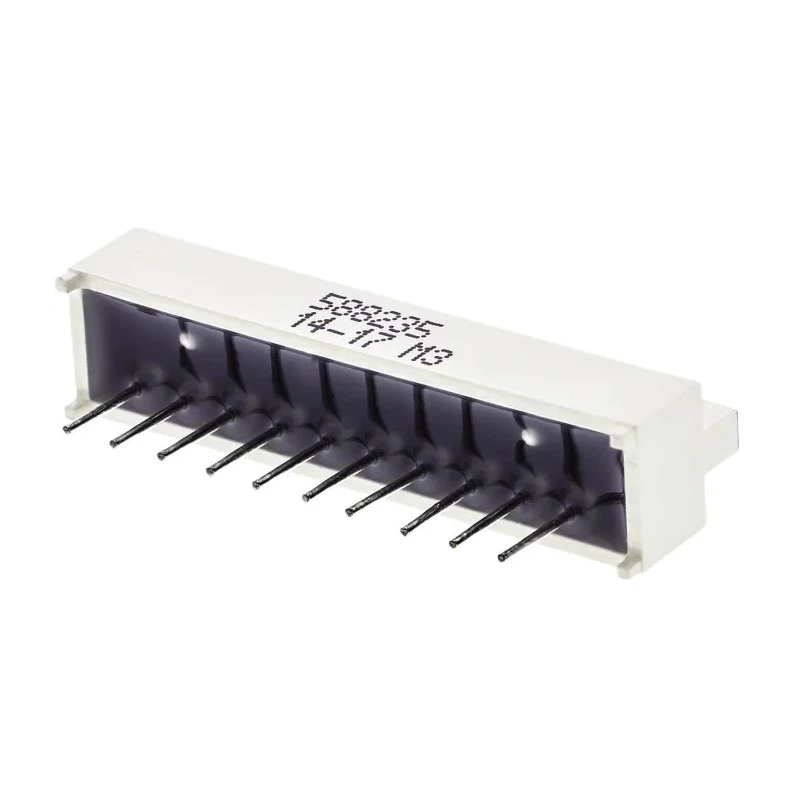

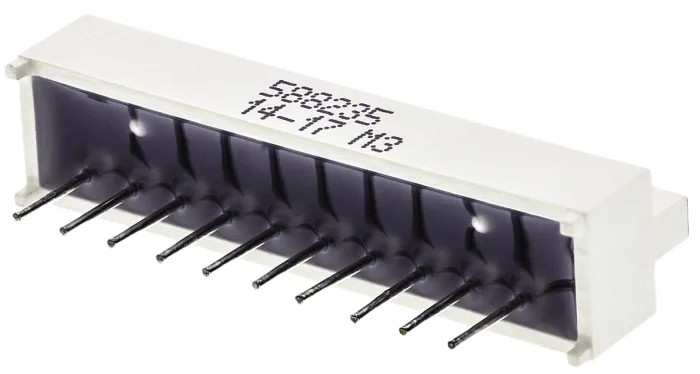

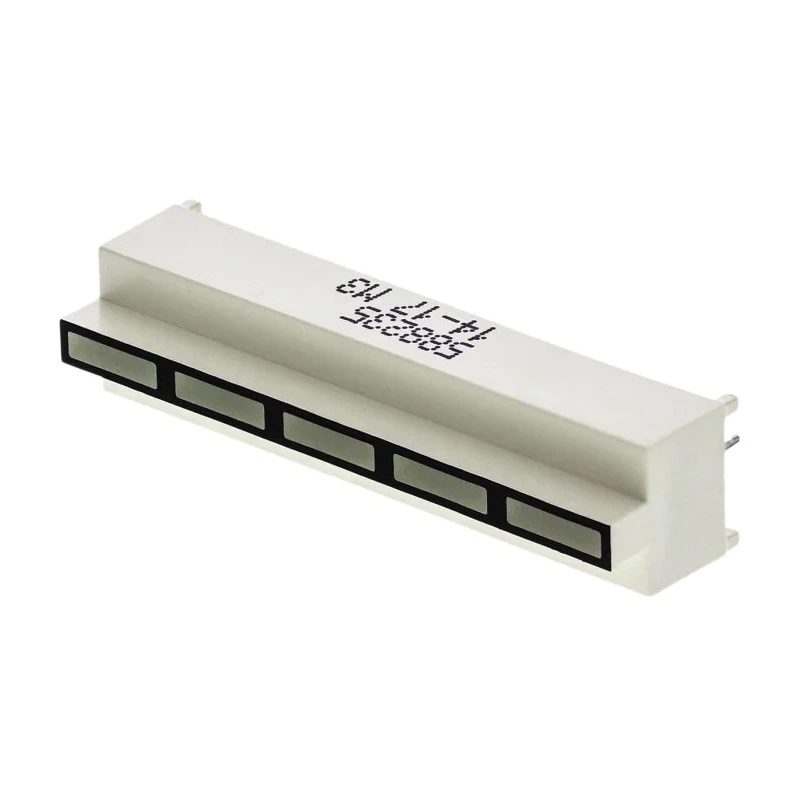

Kingbright Auto Backlit Bar Graph LED Display Green 1.25 mm 5 Segment DI-5GWB
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Auto Backlit Bar Graph Display |
| Brand | Kingbright |
| Model | DI-5GWB |
| Mount Type | Through Hole |
| Series | DI-5GWB |
| Character height | 1.25mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 5 |
| External Width | 29.9mm |
| External Depth | 8.5mm |
| External Height | 7mm |
| Power Dissipation | 62.5mW |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 568nm |
| Colour of Face | Black |
| Forward Voltage | 2.2V |
| Forward Current | 25mA |
| Segment dimensions | 5 x 1.25 mm |
| DI-5YWB Kingbright Light Bar LED Display, Yellow 2.2 mcdBrand | Kingbright |
Key Features
- The display has 5 segments that enable effective graphical level representation.
- Operates with a forward voltage of 2.2 V and forward current of 25 mA.
- Features a black face color to enhance segment contrast and visibility.

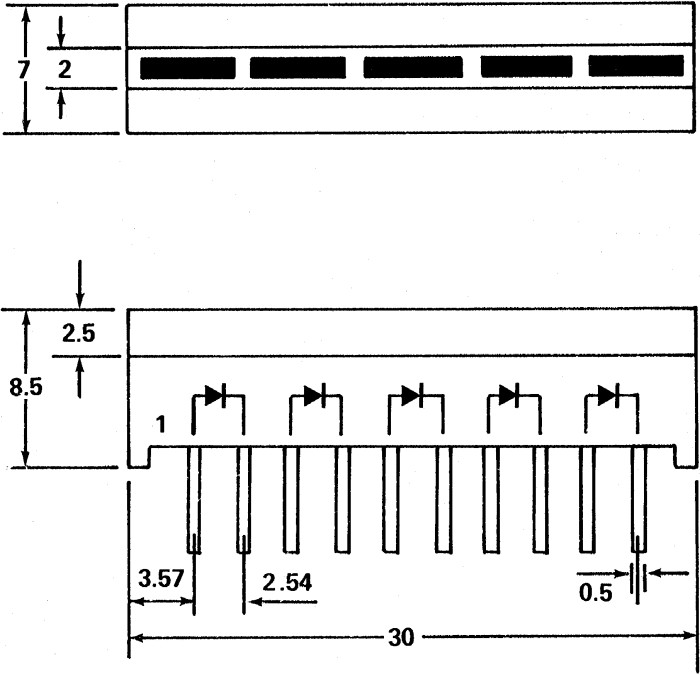

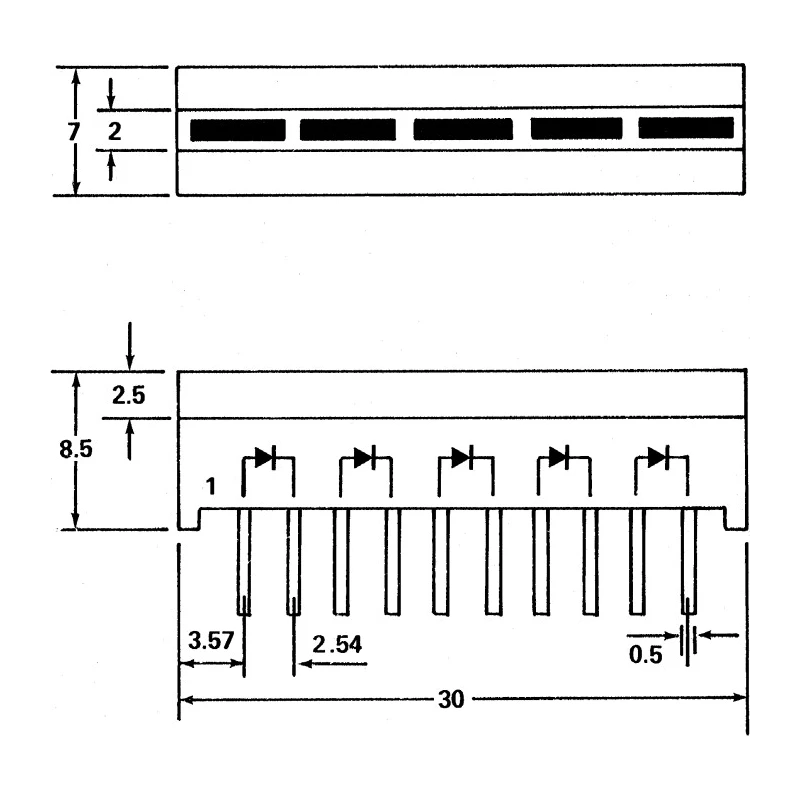

- External dimensions are 29.9 mm width, 7 mm height, and 8.5 mm depth suitable for panel integration.
- Operates safely between -40°C and 85°C, ensuring durability in various environments.
- Low power dissipation of 62.5 mW enables efficient energy usage.
- Constructed with mechanically rugged design for enhanced longevity.
- Ideal for level indication and graphical display applications in electronic devices.
Product Description
Kingbright DI-5GWB Auto Backlit Bar Graph LED Display is a 5 segment green color display designed for through-hole mounting applications. It features a compact character height of 1.25 mm with a black face, providing a high contrast ratio that enhances readability and visual clarity.
This LED display operates with a forward voltage of 2.2 V and a forward current of 25 mA, making it efficient and suitable for low power consumption applications. The display dissipates only 62.5 mW of power, which supports energy-efficient designs.
With external dimensions of 29.9 mm width, 7 mm height, and 8.5 mm depth, it integrates well into various electronic devices and control panels. The rugged mechanical construction ensures durability and reliability even in demanding industrial and commercial environments.
The operating temperature range from -40°C to 85°C allows this display to perform consistently across a wide variety of climatic conditions, making it suitable for industrial, automotive, and instrumentation applications.
This product is RoHS compliant, aligning with environmental safety standards. Applications include level indicators and graphical displays in industrial automation, laboratory instruments, and manufacturing devices.
Five individual LED segments to represent graphical levels. Auto backlit feature providing enhanced visibility. Low current operation with forward voltage of 2.2 V. Black face for high contrast and improved readability. Compact size with 1.25 mm character height.
Robust through-hole mount type. Wide operating temperature range from -40°C to 85°C. Low power dissipation, making it energy efficient. Mechanically rugged construction.
This Kingbright DI-5GWB LED Display offers a reliable and efficient solution for electronic display applications requiring clear visual level indication and a compact form factor. Explore more LED components and displays in EnvMart’s Electronics & Electricals section for enhanced product selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kingbright DI-5GWB operates with a forward voltage of 2.2 V and a forward current of 25 mA.
This model operates safely between -40°C and 85°C, making it suitable for various environmental conditions.
The external dimensions are 29.9 mm in width, 7 mm in height, and 8.5 mm in depth.
It features 5 segments that enable effective graphical level representation.
The power dissipation is 62.5 mW, which supports energy-efficient designs.
The character height of this display is 1.25 mm, providing a compact form factor.
This display is designed for through-hole mounting applications.
The LED color is green, and it features a black face for enhanced contrast and visibility.
Yes, it is RoHS compliant, aligning with environmental safety standards.
It is ideal for level indication and graphical display applications in electronic devices, including industrial automation and laboratory instruments.
The dominant wavelength of the green LED is 568 nm.
The auto backlit feature and black face color enhance visibility and readability in various lighting conditions.
