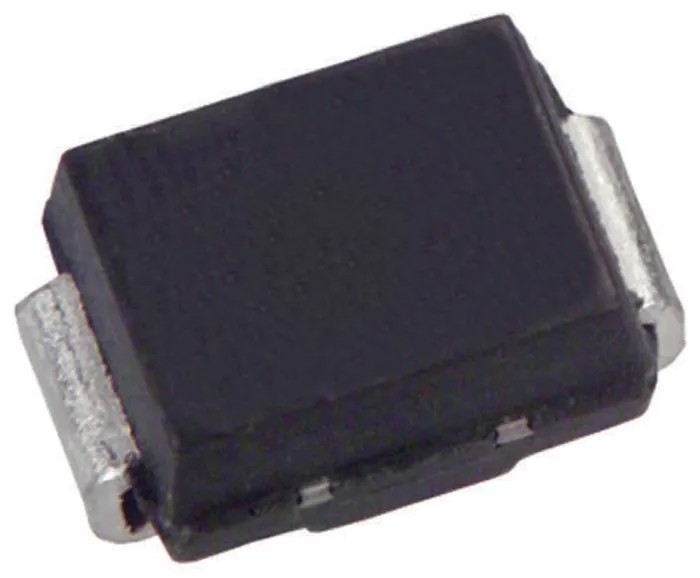

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 400W, 2-Pin DO-214 SMAJ60A R3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.3mm |
| Length | 4.6mm |
| Model | SMAJ60A R3 |
| Width | 2.83mm |
| Mount Type | Surface |
| Series | SMAJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 96.8V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 66.7V |
| Maximum Reverse Stand-off Voltage Vwm | 60V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 4.1A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Offers robust ESD protection and surge voltage suppression.
- Operates within a wide temperature range from -55°C to 150°C.
- Single diode configuration with uni-directional direction type.
- Surface mount type with compact DO-214 package dimensions.
- Peak pulse current rating of 4.1 A ensures reliable transient voltage suppression.
- Minimum breakdown voltage of 66.7 V and clamping voltage of 96.8 V provide effective protection.
- Maximum reverse standoff voltage of 60 V suited for a variety of circuits.
- Low leakage current of 5 μA for efficient performance.
Product Description
Taiwan Semiconductor SMAJ60A R3 is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for protecting sensitive electronic circuits from voltage spikes and transient surges. It is rated for a peak pulse power dissipation of 400 W and features a surface mount DO-214 package with two pins.
This TVS diode delivers reliable ESD protection and surge voltage suppression over a wide temperature range from -55°C to 150°C, making it suitable for demanding electronic environments. The diode's minimum breakdown voltage is 66.7 V, and it clamps voltage spikes up to 96.8 V, with a maximum reverse stand-off voltage of 60 V.
It supports a peak pulse current of 4.1 A and exhibits minimal leakage current of 5 μA, ensuring efficient performance with low power loss. This component is ideal for integration in power supplies, industrial equipment, and communication devices.
The SMAJ series design, with its compact dimensions of 4.6 mm length, 2.83 mm width, and 2.3 mm height, lends itself to high-density surface mount assemblies. Its robust construction ensures stable operation in electronic and industrial control systems.
Offers robust ESD protection and surge voltage suppression. Operates within a wide temperature range from -55°C to 150°C. Single diode configuration with uni-directional direction type. Surface mount type with compact DO-214 package dimensions.
Peak pulse current rating of 4.1 A ensures reliable transient voltage suppression. Minimum breakdown voltage of 66.7 V and clamping voltage of 96.8 V provide effective protection. Maximum reverse standoff voltage of 60 V suited for a variety of circuits.
Low leakage current of 5 μA for efficient performance. Designed for industrial and electronic component applications requiring surge protection. Complies with standard packaging suitable for automated PCB assembly.
This Taiwan Semiconductor SMAJ60A R3 TVS diode is widely used in industrial, communication, and power supply applications to safeguard electronic equipment from transient voltage events. It supports automated manufacturing processes with its surface mount configuration on reels for efficient assembly and production.
Explore the full range of semiconductor and TVS Diode products at EnvMart for reliable industrial component solutions.
