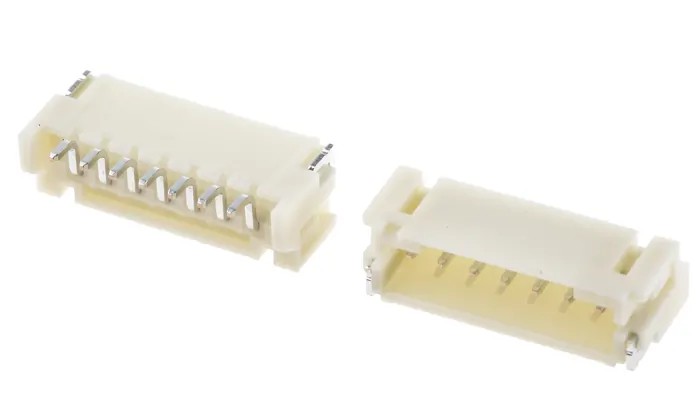

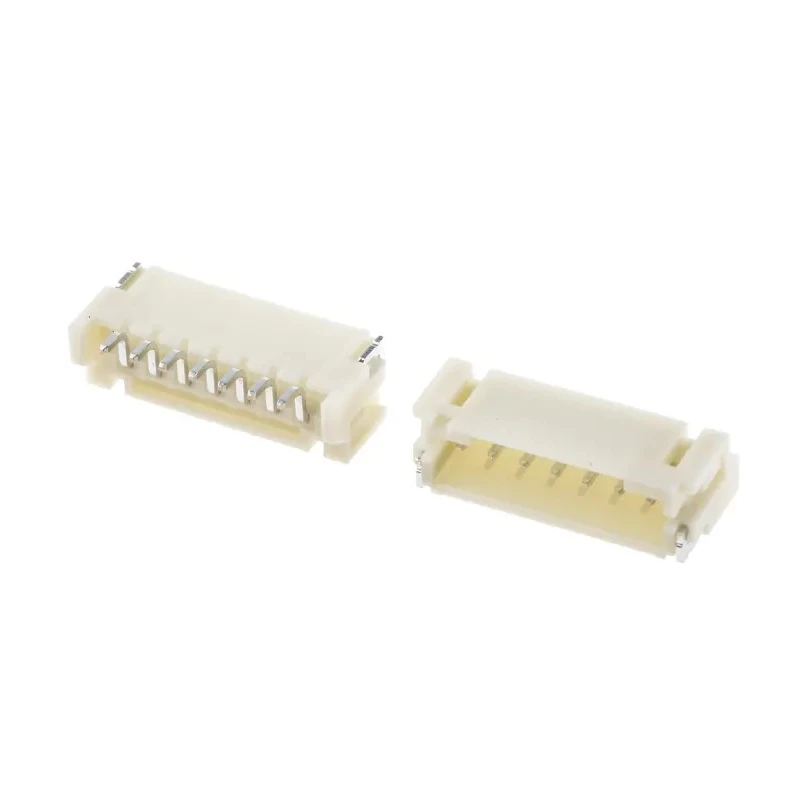

JST PH Series Right Angle Surface PCB Header 7 Contacts 2 mm Pitch 1 Row Shrouded S7B-PH-SM4-TB(LF)(SN)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 2A |
| Model | S7B-PH-SM4-TB(LF)(SN) |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | PH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact PH series connector designed for wire-to-board applications with a right angle orientation.
- Features 7 male contacts, providing reliable connections with a 2 mm pitch spacing.
- Fully shrouded header ensures protection and minimizes misalignment during assembly.
- Contact material of copper alloy with tin plating provides durability and excellent conductivity.
- Operates within a voltage rating of 100 V and a current rating of 2 A for dependable performance.
- Suitable for temperature ranges from -25°C to 85°C, supporting various operating environments.
- Surface mount type designed for printed circuit board assembly with solder termination.
- Low insertion force side entry design facilitates efficient installation and removal.
Product Description
JST S7B-PH-SM4-TB(LF)(SN) is a PH series right angle surface mount PCB header connector featuring 7 male contacts arranged in a single row with 2 mm pitch spacing. The shrouded design provides enhanced protection to the contact points, ensuring reliable and secure wire-to-board connections. This connector supports a current rating of 2 A and voltage rating up to 100 V, suitable for compact, high-density electronic assemblies.
Manufactured from copper alloy contacts with tin plating, this connector offers excellent conductivity and resistance to corrosion. Its surface mount termination and right angle orientation make it ideal for efficient PCB assembly and space-constrained applications. The operating temperature range from -25°C to 85°C enables its use in diverse industrial and commercial electronic environments.
The JST PH series connectors are widely recognized for their reliability and cost-effectiveness, providing secure, low insertion force connections that simplify assembly and maintenance. This 7-contact shrouded PCB header supports wire sizes from 32 AWG to 24 AWG and integrates a printed circuit board retention mechanism to ensure firm seating.
This connector finds applications in electronic components manufacturing, telecommunications equipment, instrumentation, and other industries requiring dependable wire-to-board connections with space-saving configurations.
Compact PH series right angle PCB header with 7 contacts and 2 mm pitch. Copper alloy contacts with tin plating ensure conductivity and corrosion resistance. Shrouded design protects contacts and supports low insertion force connection.
Surface mount termination facilitates PCB assembly and soldering. Operating temperature is -25°C to 85°C for versatile industrial use. Rated for 2 A current and 100 V voltage applications. Single-row configuration optimizes board space where height constraints exist.
Reliable wire-to-board connector for high-density electronic applications. Widely used in industrial, laboratory, electronics manufacturing, and telecom devices.
This PCB header is part of the JST PH series and offers an optimal solution for designers seeking reliable and compact right angle connectors for printed circuit board assemblies. Explore similar PCB headers and connectors in the Electronics Components category on EnvMart for all your industrial and electronic assembly needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2 A and a voltage rating of 100 V, making it suitable for various electronic applications.
The contacts in this connector are arranged with a pitch size of 2 mm, allowing for compact connections on printed circuit boards.
It features a solder termination type, designed for surface mount applications on printed circuit boards.
The operating temperature range for this unit is from -25°C to 85°C, making it suitable for diverse environments.
This PCB header is equipped with 7 male contacts, arranged in a single row.
The contacts are made from copper alloy and are plated with tin to enhance conductivity and corrosion resistance.
This model features a right angle orientation, which is beneficial for space-constrained applications.
This connector is shrouded, which provides additional protection to the contact points and minimizes misalignment during assembly.
It supports wire sizes ranging from 32 AWG to 24 AWG, accommodating various wire gauges for connection.
The country of origin for this model is India.
This connector is suitable for wire-to-board applications in industries such as electronics manufacturing, telecommunications, and instrumentation.
This unit uses a wire-to-board connector system, designed for reliable connections in electronic assemblies.
