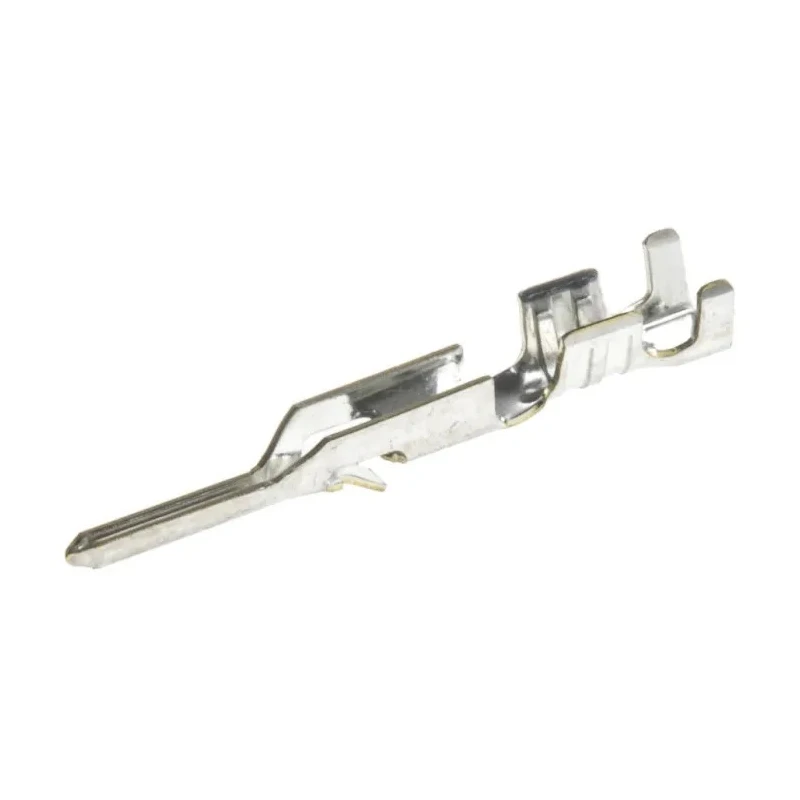

Molex 5241 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max, Brass Contact Material, Tin Plating, 3A 08-70-0103
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5241 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SPOX Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed with brass contact material for durability and conductivity.
- Features tin plating to ensure corrosion resistance and reliable electrical contact.
- Spring box style design provides high electrical reliability and multiple contact points.
- Crimp termination type suitable for efficient and secure wire connections.
- Operates reliably within a temperature range of -40°C to 105°C.
- Compatible with Molex SPOX series plugs and receptacle housings for versatile applications.
- Prevents fish-hooking from wires during handling to maintain connector integrity.
- Maximum contact resistance is 20 milliohms, ensuring low signal loss.
Product Description
Molex 08-70-0103 is a part of the 5241 Series Male Crimp Terminal designed for use with SPOX Connector Housings. It supports wire sizes ranging from 28 AWG minimum to 22 AWG maximum and handles a current rating of 3 amperes. This terminal features brass contact material with tin plating, providing excellent conductivity and corrosion resistance for reliable electrical connections.
The terminal uses a spring box style design that ensures multiple points of contact within the connector interface, enhancing electrical reliability and protecting the mating face area from damage. Its crimp termination type allows quick, secure wire connections suited for manufacturing and assembly processes.
Operating temperature ranges from -40°C to 105°C, making it suitable for varied industrial and electronic applications including communication and networking devices. The terminal design prevents fish-hooking of wires during handling, maintaining integrity and ease of installation.
With a maximum contact resistance of 20 milliohms, it ensures minimal power loss and optimal signal transmission. These features make the Molex 5241 Series Male Crimp Terminal ideal for use in industrial electronics, HVAC systems, and telecommunications equipment.
Constructed with brass contact material for enhanced electrical performance. Tin plating provides corrosion resistance and durability. Spring box design enables multiple contact points for secure connectivity. Compatible with Molex SPOX series receptacle and plug housings.
Wide operating temperature range from -40°C to 105°C. Low maximum contact resistance of 20 milliohms reduces signal loss. Crimp termination simplifies and secures wire connections.
This product is made in Japan, ensuring high manufacturing standards and quality control. It is a new condition electronic component suitable for assembly in electronic equipment manufacturing, repairs, and prototyping.
Explore the range of high-quality connectors and crimp terminals available in the Molex 5241 series on EnvMart for your industrial and electronic needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 5241 Series Male Crimp Terminal has a current rating of 3 amperes.
This model supports wire sizes ranging from 28 AWG minimum to 22 AWG maximum.
The maximum contact resistance is 20 milliohms, ensuring low signal loss.
It is constructed with brass contact material and features tin plating for corrosion resistance.
The operating temperature range is from -40°C to 105°C, making it suitable for various applications.
Yes, it is compatible with Molex SPOX series plugs and receptacle housings.
This terminal uses a crimp termination type for efficient and secure wire connections.
The design prevents fish-hooking of wires during handling, maintaining connector integrity.
This product is made in Japan, ensuring high manufacturing standards.
It is suitable for industrial electronics, HVAC systems, and telecommunications equipment.
The gender of this terminal is male.
The spring box style design provides high electrical reliability and multiple contact points within the connector interface.
