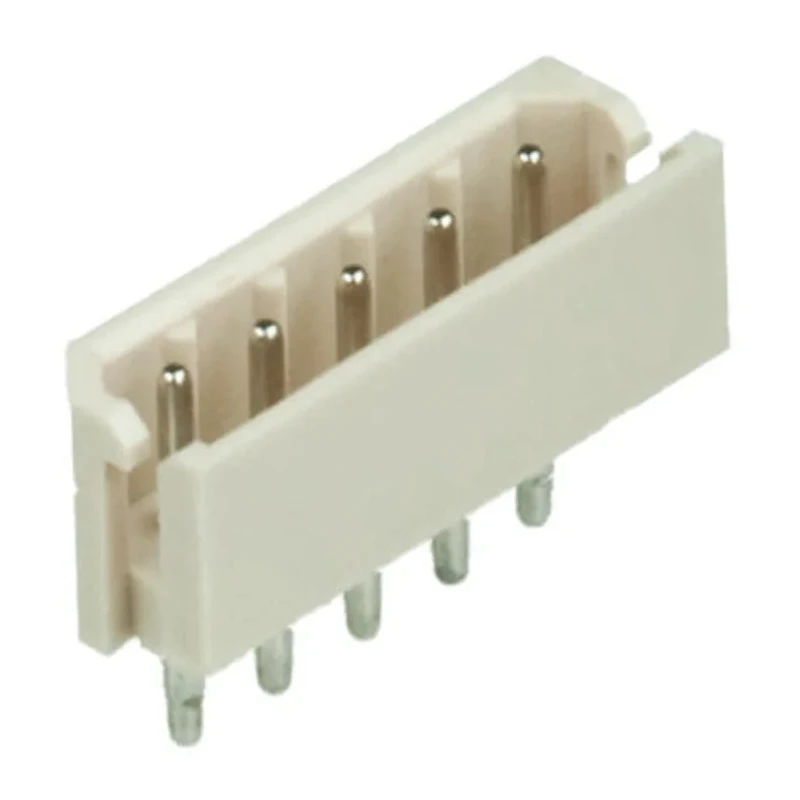

Molex SPOX Series 2.5 mm Pitch 5 Contact Straight Through Hole Shrouded PCB Header 99-99-0989
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Low profile shrouded design protects the pcb connector interface.
- Polarization features prevent mismating ensuring correct connections.
- Friction lock mechanism provides secure mating and retention.
- Constructed from nylon housing with brass contacts plated in tin for durability.
- Rated for a current of 3A and voltage of 250V suitable for varied applications.
- Designed with straight orientation and single row for streamlined PCB mounting.
- Suitable for automotive, consumer, industrial, medical, networking and telecommunication uses.
- Mating pin length of 3.5 mm allows dependable solder termination.
Product Description
Molex 99-99-0989 SPOX Series Straight Through Hole PCB Header is a high quality shrouded connector designed for wire-to-board applications with a 2.5 mm pitch and 5 contacts. It features a durable nylon housing and brass contacts plated with tin to ensure reliable electrical connections even in demanding environments.
This single-row PCB header incorporates polarization keys to prevent incorrect mating and a friction lock system that secures the connection to maintain signal integrity and mechanical strength. It is rated for a current of 3 amperes and a voltage of 250 volts with operating temperatures from -40°C up to 105°C, making it ideally suited for use across diverse industrial sectors including automotive, medical, telecommunications, and consumer electronics.
The connector is designed for through hole mounting with straight orientation, ensuring simplicity of installation on printed circuit boards. The contact tails feature a length of 3.5 mm to facilitate strong solder joints, while versions with swaged tails provide added retention strength on PCBs.
Applications for this PCB header include use in industrial control systems, data communications equipment, networking hardware, and general electronic assemblies requiring reliable wire-to-board interconnections.
Low profile shrouded design protects connector interfaces enhancing durability. Polarization prevents mismating reducing assembly errors. Friction lock mechanism secures mating connection and prevents disconnection. Nylon housing and tin-plated brass contacts offer excellent electrical and mechanical performance.
Rated for 3A current and 250V voltage enabling versatile electronic use. Single row, straight orientation simplifies PCB mounting and layout. Wide operating temperature range from -40°C to 105°C supports demanding environments.
Suitable for automotive, industrial, telecommunications and consumer electronics applications. Discover more Molex PCB connectors and accessories available on EnvMart for industrial, commercial, and technical applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 3A.
It is rated for a voltage of 250V.
The pitch of this model is 2.5 mm.
The housing is made from nylon, and the contacts are brass plated with tin.
It operates within a temperature range of -40°C to 105°C.
This connector features 5 contacts.
It is designed for through hole mounting.
The mating pin length is 3.5 mm.
Yes, it incorporates polarization features to prevent incorrect mating.
This model uses solder termination.
It is suitable for automotive, industrial, telecommunications, and consumer electronics applications.
The orientation of this connector is straight.
