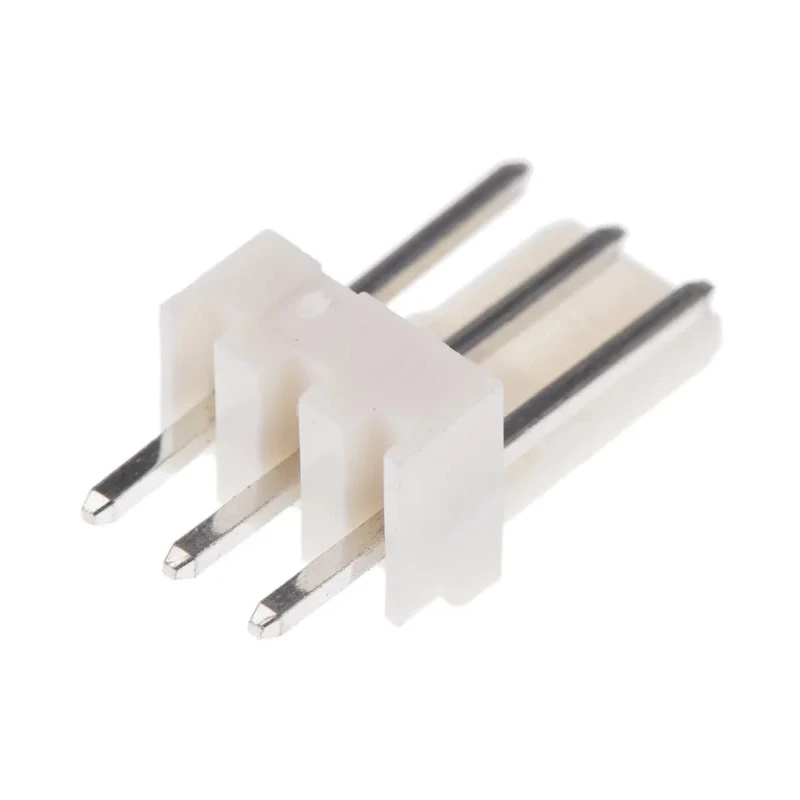

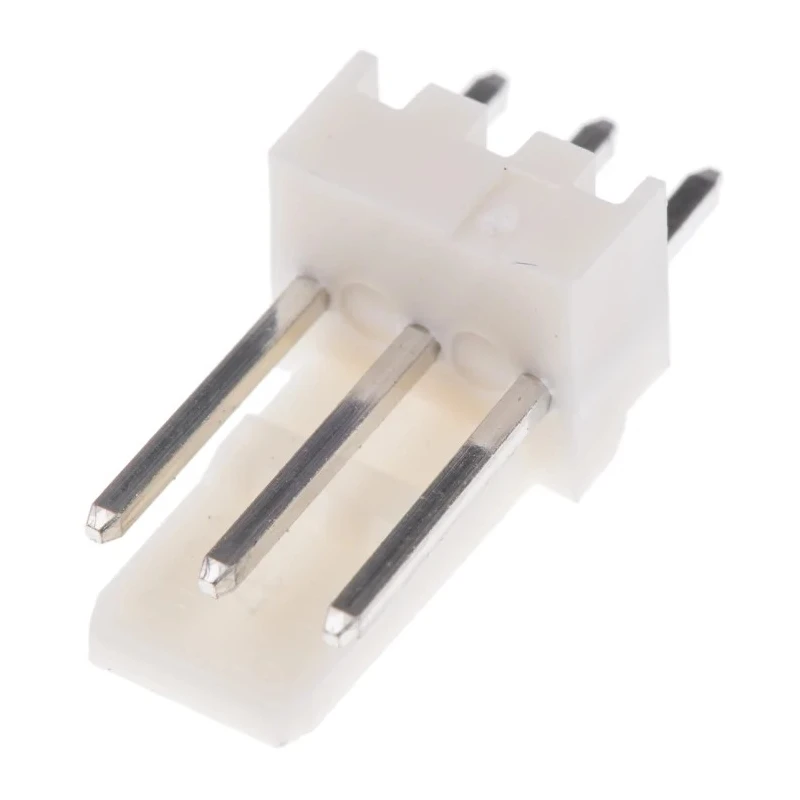

Molex Mini-Latch Series Straight Through Hole Pin Header, 3 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 22-04-1031
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with nylon housing for durability and insulation.
- Features 3 male contacts made of brass plated with tin.
- Single row, straight orientation designed for through hole mounting.
- Shrouded design with friction locking ramp for secure mating.
- Supports operating temperatures from -40°C to 105°C.
- Rated for voltage up to 250V and current up to 3A.
- Compatible with Mini-Latch 51191 and KK series crimp housings.
- Solder termination type with reliable mechanical and electrical contact.
Product Description
Molex 22-04-1031 Mini-Latch Series Straight Through Hole Pin Header is a durable electronic connector designed for industry-standard 2.5 mm wire-to-board applications. This component features 3 brass contacts plated with tin housed in a robust nylon body, arranged in a single straight row with 2.5 mm pitch, providing consistent electrical performance.
The shrouded header incorporates a friction ramp locking mechanism to guarantee secure mating connections, preventing accidental disconnections in demanding environments. It supports voltages up to 250V and currents up to 3A, and operates effectively within a temperature range from -40°C to 105°C.
This pin header is suited for a range of applications including automotive wiring systems, fax machines, printers, PC monitors, and data communication centers. It is designed to mate perfectly with Mini-Latch 51191 series and KK series 5051 crimp housings with 2.5 mm pitch, facilitating flexible circuit designs.
The product facilitates straightforward solder termination and through-hole PCB mounting, ensuring reliable mechanical strength and electrical contact. Its male contacts and shrouded design help align and secure connectors in dense PCB layouts.
Constructed from durable nylon housing material. Employs brass contacts with tin plating for corrosion resistance and conductivity. Single-row, 3-contact configuration with 2.5 mm pitch. Straight orientation with shrouded design for secure mating.
Friction ramp locking mechanism enhances connection reliability. Performance rated for 250V voltage and 3A current. Operating temperature range from -40°C to 105°C ensures wide environmental suitability. Compatible with Mini-Latch 51191 and KK series 5051 crimp housings.
This Molex Mini-Latch Series pin header is ideal for electronic assemblies requiring dependable wire-to-board connections with secure latching in automotive, industrial, and communication equipment. Explore more PCB Headers and related connectors on EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of up to 250V and a current of up to 3A.
The contacts in this pin header are arranged with a pitch of 2.5 mm.
The housing is constructed from durable nylon material.
This pin header features 3 male contacts.
It operates effectively within a temperature range from -40°C to 105°C.
This model employs a solder termination type for reliable connections.
Yes, it is compatible with Mini-Latch 51191 and KK series 5051 crimp housings.
The pin header has a straight orientation designed for through-hole mounting.
The contacts are made of brass and plated with tin for corrosion resistance.
It incorporates a shrouded design with a friction ramp locking mechanism for secure mating.
The country of origin for this pin header is India.
It is suitable for automotive wiring systems, fax machines, printers, PC monitors, and data communication centers.
