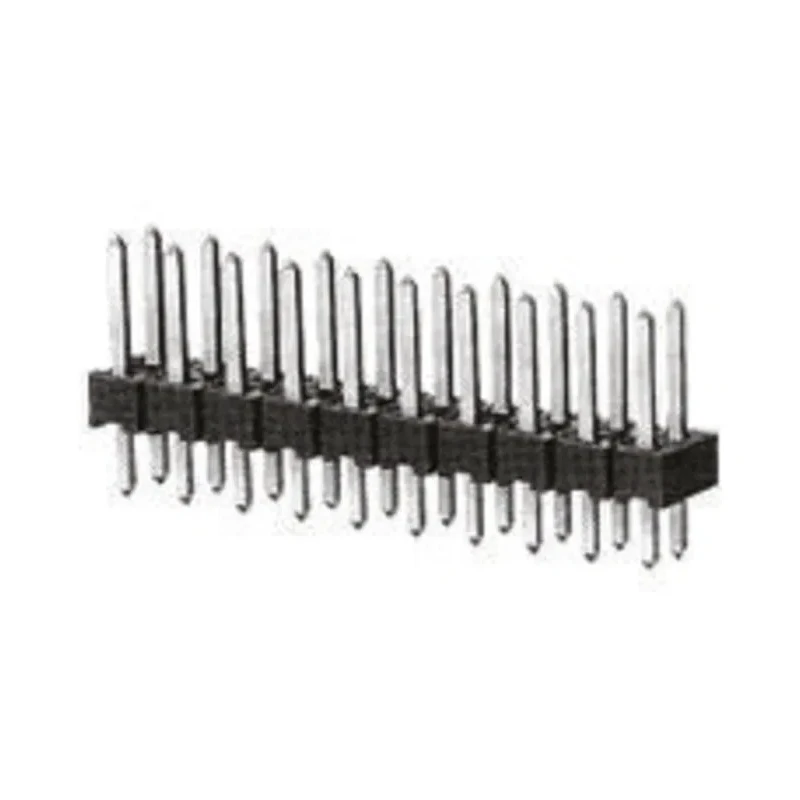

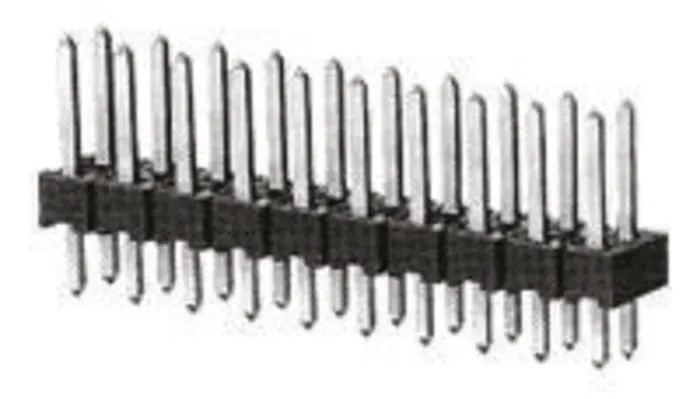

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 32 Contacts, 2.54 mm Pitch, 2 Row 1-826656-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- This pin header features a double row configuration with 2 rows and 32 male contacts.
- Constructed with gold-plated brass contacts and polyester housing for durability.
- Designed for through-hole mounting with solder termination type.
- Operating temperature range from -65°C to 105°C suits harsh environments.
- The connector supports board-to-board and wire-to-board systems with a voltage rating of 750V and a current rating of 3A.
- Unshrouded design allows easy insertion and breaking to custom sizes.
- Contact tail pins measure 3.2 mm and mating pins 5.8 mm in length.
- Ideal for automotive, industrial, telecommunications, medical, and computer equipment applications.
Product Description
TE Connectivity 1-826656-6 AMPMODU MOD II Series Straight Through Hole Pin Header is a precision-engineered component featuring 32 contacts arranged in 2 rows with a 2.54 mm pitch.
Manufactured with gold-plated brass contacts housed in durable polyester, this connector ensures reliable signal integrity and long service life in demanding applications. The through-hole pin header supports a voltage rating of 750V and a current rating of 3A, operating safely over a wide temperature range from -65°C to 105°C.
Its unshrouded, breakaway design allows customization to exact sizes, saving installation time and labor costs.
This component is suitable for a broad array of industrial and commercial uses including automotive controls, industrial test equipment, telecommunications systems, computers, medical instruments, storage equipment, and various appliances.
This pin header features a double row configuration with 2 rows and 32 male contacts. Constructed with gold-plated brass contacts and polyester housing for durability. Designed for through-hole mounting with solder termination type.
Operating temperature range from -65°C to 105°C suits harsh environments. The connector supports board-to-board and wire-to-board systems with a voltage rating of 750V and a current rating of 3A. Unshrouded design allows easy insertion and breaking to custom sizes.
Contact tail pins measure 3.2 mm and mating pins 5.8 mm in length. Ideal for automotive, industrial, telecommunications, medical, and computer equipment applications. The 2.54 mm pitch ensures compatibility with standard PCB configurations.
The AMPMODU MOD II interconnect system is acknowledged for reliability and cost-effectiveness, meeting the needs of automation and control applications. Explore the full range of PCB Headers and connectors to suit your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header supports a voltage rating of 750V and a current rating of 3A.
It operates safely over a temperature range from -65°C to 105°C.
This model features 32 male contacts arranged in 2 rows.
The contacts have a pitch of 2.54 mm, ensuring compatibility with standard PCB configurations.
It is constructed with gold-plated brass contacts and a polyester housing.
This unit is designed for through-hole mounting with a solder termination type.
Yes, it supports both board-to-board and wire-to-board systems.
The contact tail pins measure 3.2 mm in length, while the mating pins are 5.8 mm long.
Yes, it is designed to operate in harsh environments due to its wide operating temperature range.
The pin header has a straight orientation.
It is suitable for automotive, industrial, telecommunications, medical, and computer equipment applications.
The country of origin for this product is India.
