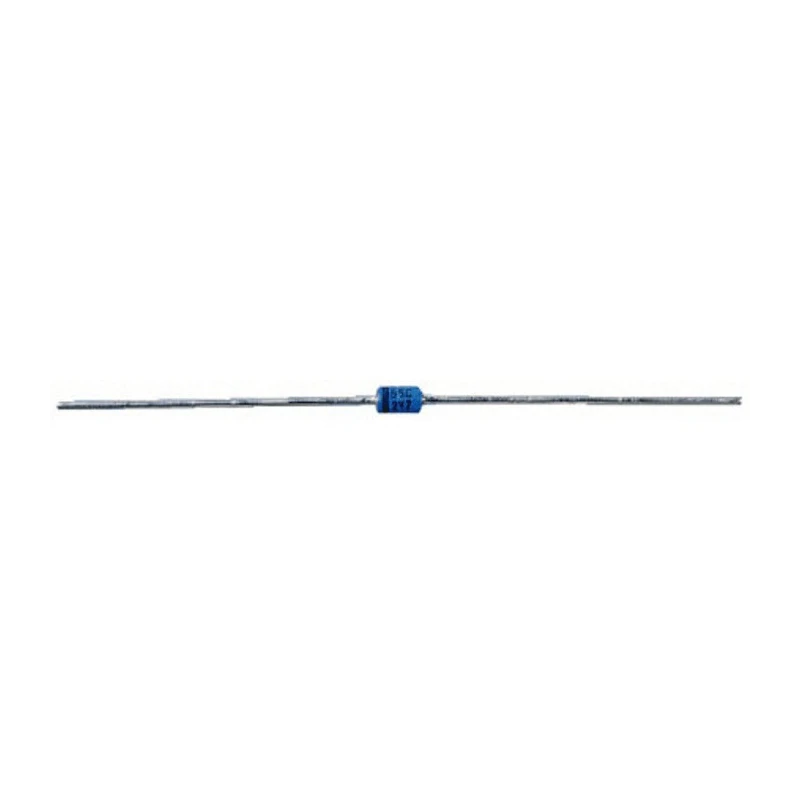

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode, 400 W Peak Pulse Power, 28.5V Breakdown Voltage, DO-15 BZW04-26B
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | BZW04-26B |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | BZW04 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 41.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28.5V |
| Maximum Reverse Stand-off Voltage Vwm | 25.6V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 9.6A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration for bi-directional protection.
- Peak pulse power dissipation capability of 400 watts.
- Clamping voltage of 41.5 volts ensures effective voltage regulation.
- Wide operating temperature range from -65°C to 175°C.
- Compact DO-15 package with 2-pin configuration for through-hole mounting.
- Minimum breakdown voltage at 28.5 volts and maximum reverse standoff voltage of 25.6 volts.
- Maximum peak pulse current rating of 9.6 amperes supports high transient currents.
- Automotive grade AEC-Q101 standard compliant for reliability in harsh environments.
Product Description
Taiwan Semiconductor BZW04-26B 1-Element Bi-Directional TVS Diode is designed for protecting sensitive electronics by clamping voltage spikes with a peak pulse power of 400 W and a breakdown voltage of 28.5 V. It features a single diode configuration ideal for bi-directional transient voltage suppression applications.
The device is housed in a compact DO-15 through-hole package with dimensions of 5.2 mm length and 2.7 mm diameter, making it suitable for various industrial and automotive electronic circuits. It provides reliable performance in a wide temperature range from -65°C to 175°C, ensuring stable operation under harsh conditions.
This TVS diode is rated for a maximum peak pulse current of 9.6 A and a clamping voltage of 41.5 V, providing effective protection against voltage transients. A maximum reverse leakage current of 1 µA ensures minimal power loss during normal operation. The device complies with the automotive standard AEC-Q101, making it a dependable choice for automotive and industrial applications.
Typical uses include transient voltage protection in power supplies, communication interfaces, and industrial control systems. The through-hole mount type aids easy PCB integration and replacement in electronic assemblies.
Package dimensions and pin count are optimized for streamlined manufacturing: 2-pin count in a DO-15 axial package style suitable for manual or automated insertion processes. Single diode configuration for bi-directional protection.
Peak pulse power dissipation capability of 400 watts. Clamping voltage of 41.5 volts ensures effective voltage regulation. Wide operating temperature range from -65°C to 175°C. Compact DO-15 package with 2-pin configuration for through-hole mounting.
Minimum breakdown voltage at 28.5 volts and maximum reverse standoff voltage of 25.6 volts. Maximum peak pulse current rating of 9.6 amperes supports high transient currents. Automotive grade AEC-Q101 standard compliant for reliability in harsh environments.
Explore the Electronics & Electricals TVS Diode category for more semiconductor protection devices from leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation capability of this TVS diode is 400 watts.
The minimum breakdown voltage of the BZW04-26B is 28.5 volts.
The clamping voltage for this model is 41.5 volts, which ensures effective voltage regulation.
The maximum reverse stand-off voltage of this diode is 25.6 volts.
This model has a maximum peak pulse current rating of 9.6 amperes.
The operating temperature range for the BZW04-26B is from -65°C to 175°C.
This diode is housed in a compact DO-15 package with a through-hole mounting configuration.
The BZW04-26B features a 2-pin configuration.
This TVS diode complies with the automotive standard AEC-Q101.
The maximum reverse leakage current for this model is 1 microampere (1 µA).
The BZW04-26B features a single diode configuration designed for bi-directional protection.
This TVS diode is suitable for transient voltage protection in power supplies, communication interfaces, and industrial control systems.
