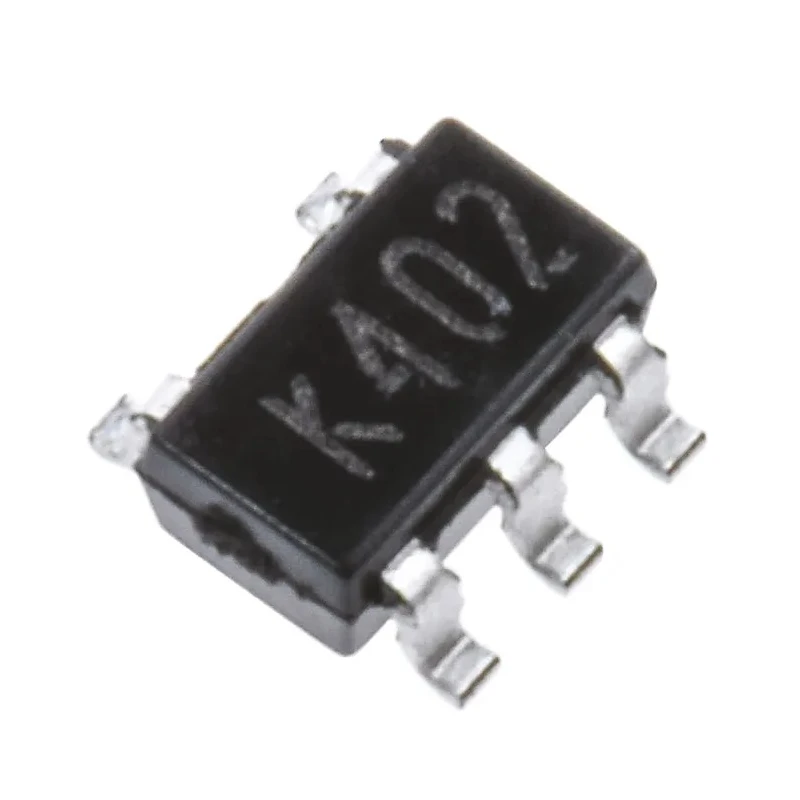

STMicroelectronics Operational Amplifier, Single Channel, 800 kHz Gain Bandwidth, 30 V Max Supply, 5-Pin SOT-23 TS321AILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TS321AILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TS321 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Power Supply Voltage | 3 V to 30 V |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 800kHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 50 nA |
| Low supply current | 500 μA |
| Low input bias current | 20 nA |
Key Features
- Single-channel operational amplifier suitable for industrial and automotive electronics.
- 5-pin SOT-23 surface mount package for compact PCB integration.
- Gain Bandwidth Product of 800 kHz ensures fast signal processing.
- Wide supply voltage range from 3 V to 30 V offering flexibility in design.
- Low input bias current of 20 nA minimizes offset errors in sensitive circuits.
- Low supply current at 500 μA supports power-efficient operations.
- Automatic automotive standard AEC-Q100 compliant ensuring reliability in automotive environments.
- Operating temperature range from -40°C to 125°C suitable for harsh conditions.
Product Description
STMicroelectronics TS321AILT is a single operational amplifier optimized for high frequency applications requiring a gain bandwidth product of 800 kHz. Featuring a 5-pin SOT-23 surface mount package, it ensures compact integration on printed circuit boards in industrial, automotive, and consumer electronics.
This amplifier operates over a wide supply voltage range from 3 V up to 30 V, accommodating various power supply configurations. Designed with low supply current consumption of 500 μA and a very low input bias current of 20 nA, it supports energy-efficient designs. Its input offset voltage of 3 mV and offset current of 50 nA help maintain signal integrity in precision circuits.
Certified to the AEC-Q100 automotive standard, the TS321AILT is reliable for automotive system applications operating across the demanding temperature range from -40°C to +125°C. The device delivers an output current capability of 40 mA, allowing it to drive loads effectively.
Its small physical dimensions - 3 mm length, 1.75 mm width, and 1.3 mm height - make it ideal for space-constrained PCB layouts. The device series TS321 is an enhanced version compatible with well-known industry-standard amplifiers like LM324 and LM358, offering an upgrade path for legacy designs.
Single operational amplifier with large output voltage swing. Low supply current enables longer battery life in portable devices. Wide operating temperature range for industrial robustness. Automotive-qualified for reliable performance in vehicle electronics.
Compact 5-pin SOT-23 package for efficient assembly. Enhanced compatibility with popular LM324, LM358 amplifiers. Provides stable frequency compensation internally. Suitable for signal amplification in power & semiconductor applications.
RoHS compliant ensuring environmental safety.
This Operational Amplifier is used in a wide range of applications including industrial controls, automotive sensors, consumer electronics, and instrumentation. Its versatility in voltage supply and thermal endurance makes it suitable for both commercial and rugged industrial environments.
Explore more STMicroelectronics amplifiers and semiconductor components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TS321AILT operational amplifier is 800 kHz, which ensures fast signal processing capabilities.
It operates over a wide supply voltage range from 3 V to 30 V, accommodating various power supply configurations.
This operational amplifier can deliver an output current of up to 40 mA, allowing it to drive loads effectively.
The TS321AILT has dimensions of 3 mm in length, 1.75 mm in width, and 1.3 mm in height, making it suitable for compact PCB layouts.
It can operate within a temperature range of -40°C to +125°C, suitable for harsh conditions in industrial and automotive applications.
The TS321AILT is packaged in a 5-pin SOT-23 surface mount format, facilitating compact integration on printed circuit boards.
The input bias current for this model is 20 nA, which helps minimize offset errors in sensitive circuits.
Yes, it is certified to the AEC-Q100 automotive standard, ensuring reliability in automotive environments.
The input offset voltage of this operational amplifier is 3 mV, contributing to signal integrity in precision circuits.
This operational amplifier has a low supply current of 500 μA, supporting power-efficient operations.
The slew rate for this operational amplifier is 0.4 V/μs, which is important for fast signal response.
The TS321AILT is RoHS compliant, ensuring environmental safety in its application.
