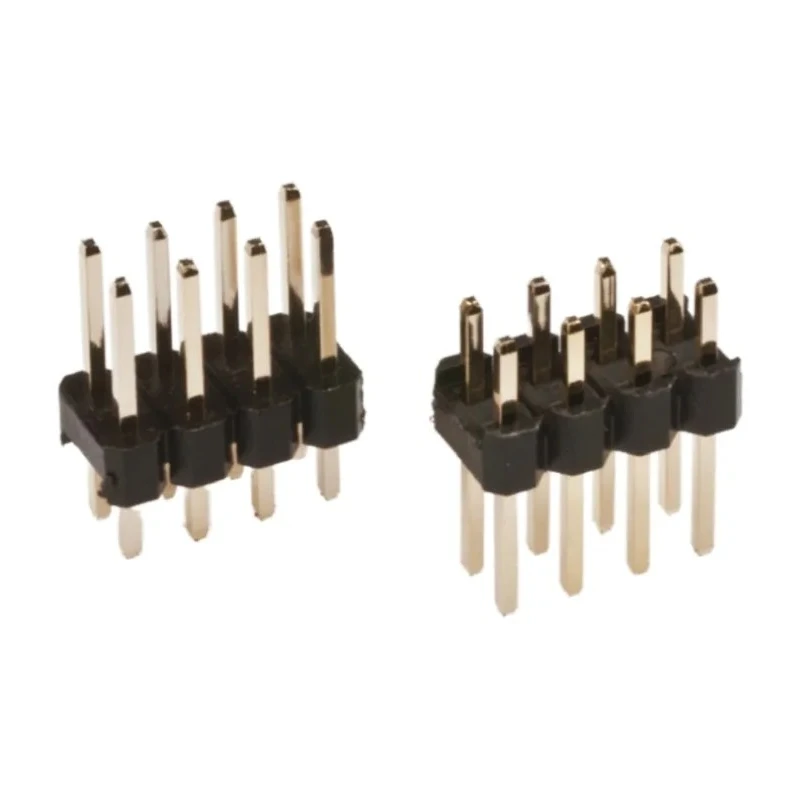

HARWIN M20 Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20-9980846
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9980846 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Durable nylon housing supports reflow soldering process ensuring thermal stability.
- Brass contacts with tin plating provide excellent conductivity and corrosion resistance.
- Rated for 3 A current with operating temperatures from -40°C to 105°C.
- Mating pin length of 6.1 mm and tail pin length of 3 mm optimize mechanical and electrical connection.
- Versatile 2-row pin configuration with 2.54 mm pitch supports a wide range of embedded and industrial applications.
- Suitable for consumer electronics, communications equipment, industrial monitoring, and control systems.
- Unshrouded connector style facilitates easy manual and automated insertion.
- High temperature thermoplastic housing withstands soldering and environmental stresses.
Product Description
HARWIN M20-9980846 is a precision engineered Straight Through Hole Pin Header connector designed for electronic industrial and commercial applications. This board-to-board and wire-to-board connector features a 2-row, 16 contacts configuration with a 2.54 mm pitch providing reliable connections in PCB assemblies.
The connector utilizes a flame retardant nylon housing which withstands high temperature soldering including reflow processes with operating temperature from -40°C to 105°C. The housing is unshrouded, allowing clear pin access while maintaining mechanical stability.
Contacts are made from brass material and plated with tin to ensure robust electrical performance with a 3 A current rating. The connector is suitable for use in embedded systems, motherboards, industrial controls, communication devices, and consumer electronics.
The tail pins are 3 mm long, while mating pins measure 6.1 mm, allowing strong solder joints and secure socket connections respectively. Thanks to the castellated design of the housing, the connector can be trimmed for size customization where applicable.
Durable nylon housing supports reflow soldering and high thermal resilience. Brass contact material ensures excellent conductivity and durability. Tin plating protects against oxidation and corrosion for long-term reliability.
2.54 mm pitch and 2-row layout support versatile PCB designs. Rated for 3 A current, suitable for a wide array of electronic equipment. Operating temperature range from -40°C to 105°C for harsh environments. Unshrouded straight orientation eases assembly and inspection processes.
Compatible with M20-series sockets and jumpers for expanded configuration options. Suitable for industrial, laboratory, communications, manufacturing, and consumer electronics applications.
Overall, the HARWIN M20 Series Straight Through Hole Pin Header M20-9980846 offers robust electrical performance, reliable mechanical connection, and configurational flexibility for professional electronic component assemblies.
Explore more PCB connector solutions and HARWIN products with EnvMart for your next industrial and commercial application.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3 A, making it suitable for various electronic applications.
The operating temperature range for this connector is from -40°C to 105°C, allowing it to function in harsh environments.
The housing is made from nylon, while the contacts are brass with tin plating, ensuring good conductivity and corrosion resistance.
This connector features 16 contacts arranged in a 2-row configuration.
The pitch size of this model is 2.54 mm, which supports various PCB designs.
It uses solder termination, suitable for reliable connections in PCB assemblies.
The mating pin length is 6.1 mm, designed for secure socket connections.
The tail pin length is 3 mm, optimizing the mechanical and electrical connection.
This model is unshrouded, which facilitates easy manual and automated insertion.
It is suitable for use in consumer electronics, communications equipment, industrial monitoring, and control systems.
It supports both board-to-board and wire-to-board connector systems, providing versatility in applications.
The country of origin for this connector is India.
