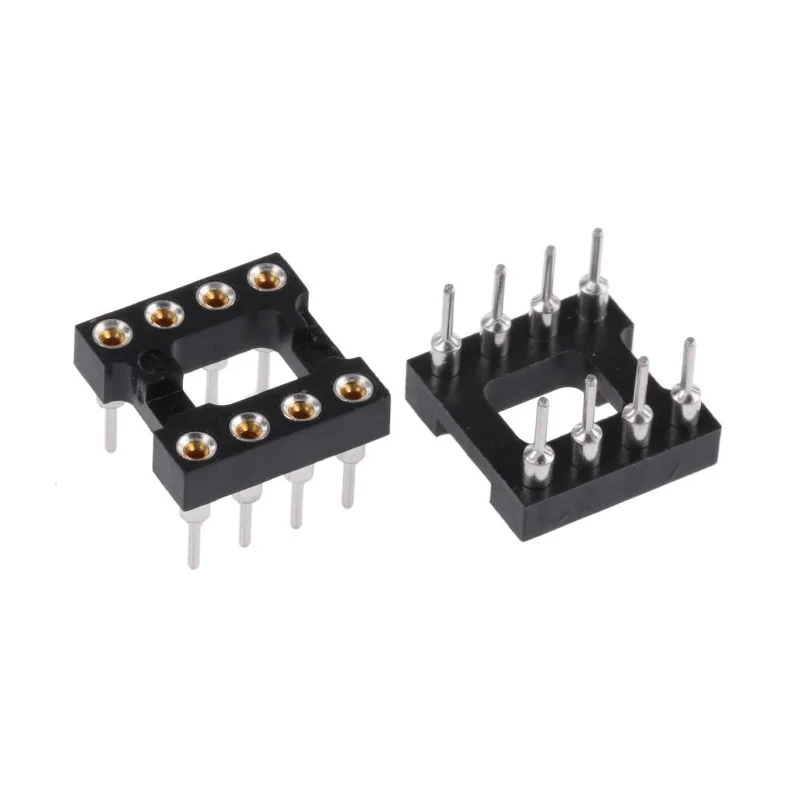

TE Connectivity DIPLOMATE 800 2.54 mm Pitch Vertical 8 Way Through Hole Turned Pin Open Frame DIL Socket 3A 2-1571586-2

TE Connectivity 2-1571586-2 DIPLOMATE 800 Series Vertical 8 Way Through Hole DIL Socket with 2.54 mm pitch and 3A current rating is engineered for robust electronic component interconnections on printed circuit boards.

This socket features a turned pin contact type with tin and gold plating that enhances conductivity and corrosion resistance. The 8 contact pins are arranged with a 7.62 mm row width to accommodate standard integrated circuit packages.

The open frame design facilitates straightforward insertion and replacement of ICs while maintaining a secure electrical connection. The housing material is polycyclohexylenedimethylene terephthalate, which offers mechanical strength and UL 94V-0 flame retardancy, suitable for industrial and laboratory electronic assembly.

Withstanding operating temperatures from −55°C to 105°C, this DIL socket supports reliable performance in varying temperature environments commonly found in industrial electronics, manufacturing equipment, and control systems. Its solder termination type enables durable attachment to PCB pads, ensuring stable operation over time.

The compact dimensions of 10.16 mm length, 10.16 mm depth, and 4.57 mm width allow for efficient use of PCB space while maintaining electrical integrity. The beryllium copper alloy used in the contact material provides excellent spring characteristics and durability, critical for repeated insertions and removals in testing or maintenance scenarios.

This product is ideal for electrical engineers and manufacturing professionals who require reliable, high-quality IC socket connectors for industrial control panels, instrumentation, and electronic prototyping.

This DIL socket features a vertical orientation for through-hole mounting. Consists of 8 contacts with 2.54 mm pitch and 7.62 mm row width. The contacts are turned pins with tin and gold plating for reliable electrical conductivity.

Constructed with a durable polycyclohexylenedimethylene terephthalate housing and beryllium copper alloy contacts. Supports operation within −55°C to 105°C temperature range. The open frame design provides a standard ladder style for easy installation and maintenance.

Termination is by soldering ensuring secure PCB connection. Depth and length both measure 10.16 mm and width is 4.57 mm for compact PCB footprint. Complies with DIPLOMATE 800 series standards for high-quality DIL Sockets.

Suitable for industrial electronic applications requiring reliable connector interfaces. Explore more electronic connectors and sockets on EnvMart to find compatible parts and accessories for your industrial and commercial projects.
