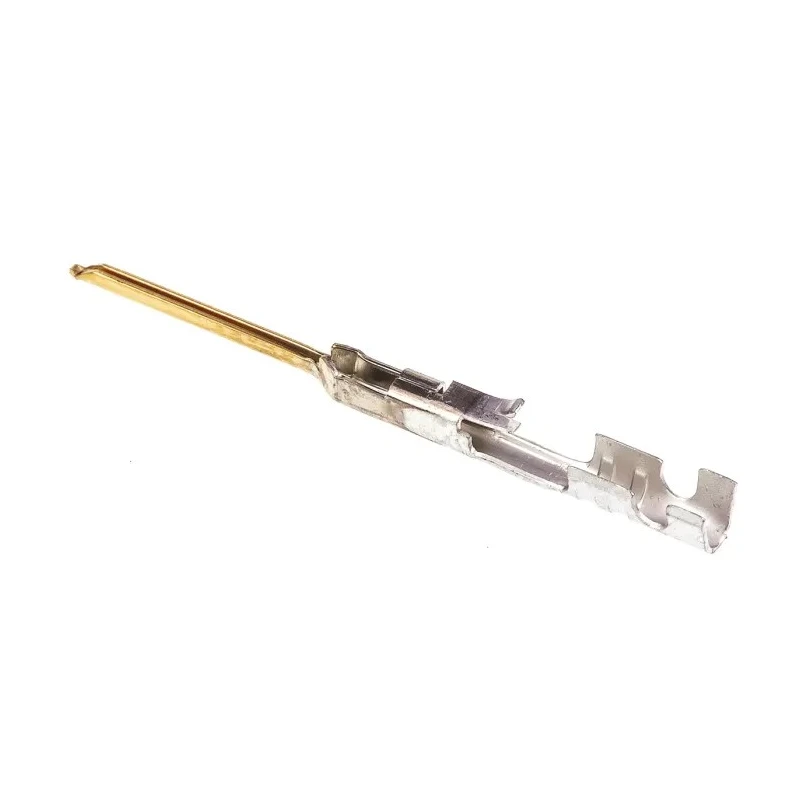

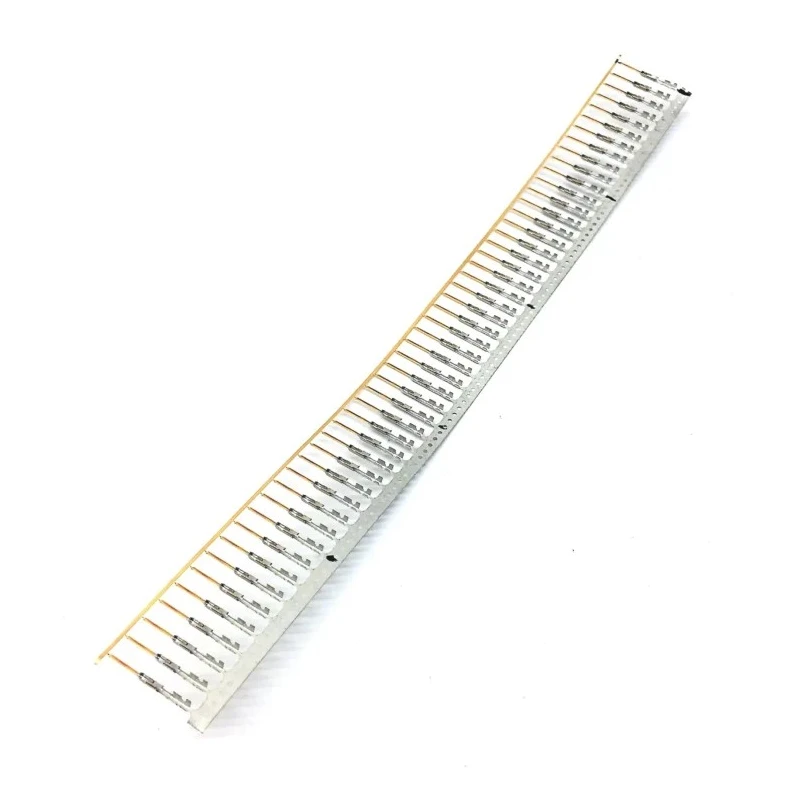

Molex 70021 Series Male Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max, Gold Plated Phosphor Bronze Contact, 3A 16-02-0115
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 70021 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Suitable for crimp termination on wire sizes from 24 AWG to 22 AWG.
- Gold plating ensures low contact resistance and reliability.
- Phosphor bronze contact material provides excellent corrosion resistance.
- Rated for 3A continuous current and contact resistance up to 15 mΩ.
- Operates within temperature range of -40°C to 105°C.
- Compatible with SL Connector Housing series by Molex.
- Designed for industrial and electronic applications requiring secure electrical connections.
- Manufactured in the United States ensuring quality standards.
Product Description
Molex 16-02-0115 is a Male Crimp Terminal from the 70021 Series designed for use with SL Connector Housings. It supports wire sizes from 24 AWG minimum to 22 AWG maximum, making it suitable for various medium gauge electrical applications. The terminal features gold-plated phosphor bronze contacts that provide excellent electrical conductivity and corrosion resistance, thereby ensuring reliable long-term performance.
This crimp terminal allows a current rating of 3A and exhibits a maximum contact resistance of 15 milliohms, suitable for robust signal and power connections in electronic devices and industrial equipment. Its operating temperature range from -40°C up to 105°C makes it adaptable for use in harsh environmental conditions.
The Molex 70021 Series terminals are specifically optimized for use with SL Connector Housing products, providing secure and precise fitment essential for automotive, commercial vehicles, consumer electronics, portable devices, medical industry equipment, communications, and networking applications. These terminals ease manufacturing and assembly processes while enhancing connection reliability.
Suitable for crimp termination on wire sizes from 24 AWG to 22 AWG. Gold plating ensures low contact resistance and reliability. Phosphor bronze contact material provides excellent corrosion resistance. Rated for 3A continuous current and contact resistance up to 15 mΩ.
Operates within temperature range of -40°C to 105°C. Compatible with SL Connector Housing series by Molex. Designed for industrial and electronic applications requiring secure electrical connections. Manufactured in the United States ensuring quality standards.
This product is ideal for use in industrial, automotive, communications, and electronics manufacturing sectors where high-quality, dependable terminal contacts are required. They enable efficient assembly lines and support durable connections in demanding environments.
Explore more Molex 70021 Series Crimp Contacts and accessories for comprehensive solutions in electrical connector systems on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 24 AWG minimum to 22 AWG maximum, making it suitable for various medium gauge electrical applications.
It is rated for a continuous current of 3A, suitable for robust signal and power connections.
The maximum contact resistance is 15 milliohms, ensuring efficient electrical connectivity.
The terminal features gold-plated phosphor bronze contacts, which provide excellent electrical conductivity and corrosion resistance.
It operates within a temperature range of -40°C to 105°C, making it adaptable for harsh environmental conditions.
Yes, it is designed for use with SL Connector Housing series by Molex, ensuring a secure fit.
This model uses crimp termination, which is suitable for secure electrical connections.
This terminal is male, designed for specific applications requiring male connectors.
It is manufactured in the United States, ensuring adherence to quality standards.
It is designed for industrial, automotive, communications, and electronics manufacturing sectors, where reliable terminal contacts are required.
The minimum wire size is 0.2 mm² and the maximum wire size is 0.3 mm², accommodating various wire gauges.
For reference, the 70058 and 71851 Series are also used with 70450 Series Housings, indicating potential compatibility.
