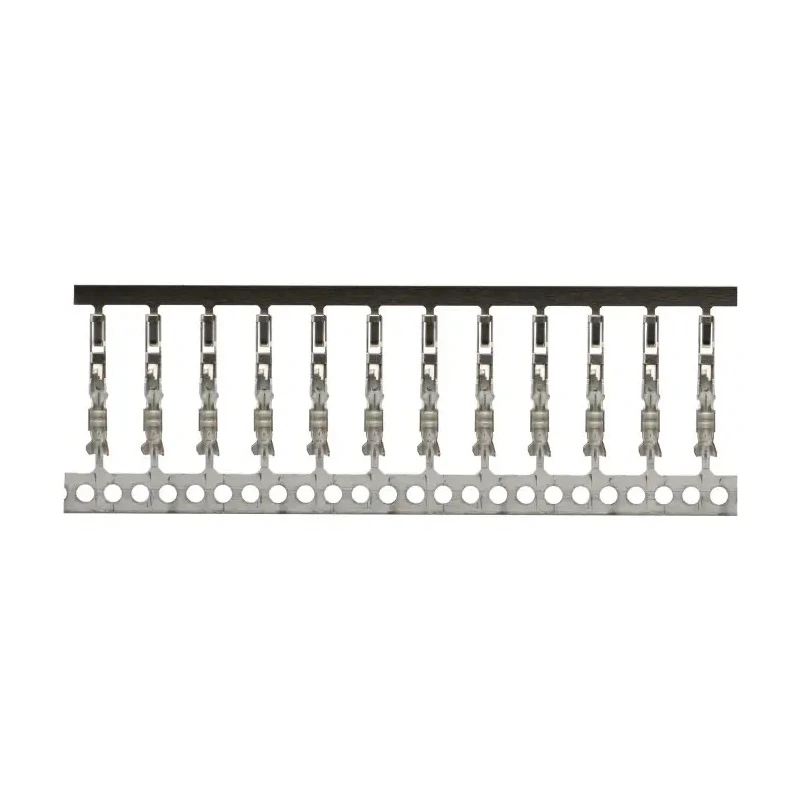

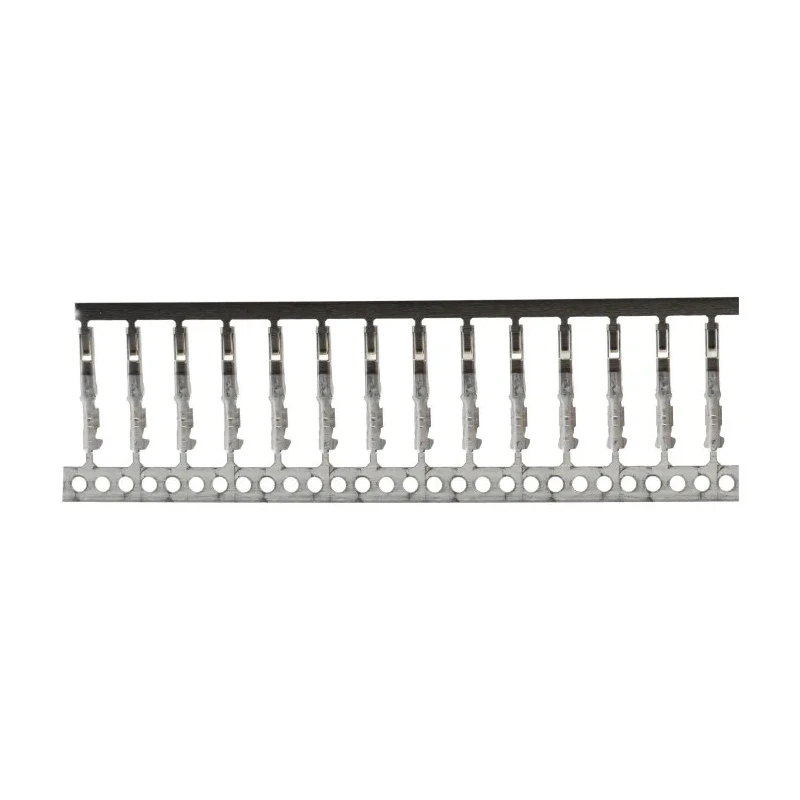

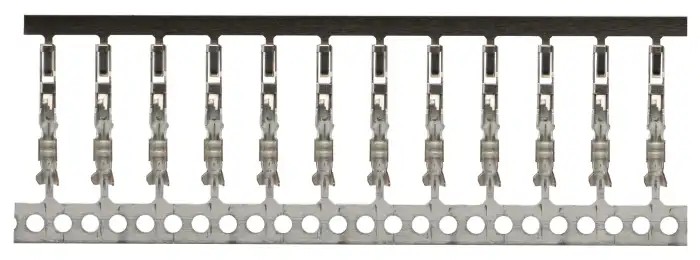

Molex 90119 Series Female Crimp Terminal 24 AWG Min, 22 AWG Max, Gold Plated Phosphor Bronze Contacts 90119-0111

The Molex 90119-0111 is a female crimp terminal engineered for high precision and durability in electrical connector applications. Designed specifically for wire sizes between 24 AWG minimum and 22 AWG maximum, it allows for secure and reliable connections within C-Grid III connector housings, widely used in electronics and electrical assemblies.

Manufactured from phosphor bronze contact material, the terminal delivers excellent electrical conductivity and mechanical strength. The gold plating on the contact surface provides superior resistance against corrosion while ensuring low contact resistance of 20 milliohms, which is critical for maintaining signal integrity and safety in electrical circuits.

This terminal features a crimp termination method facilitating easy and reliable installation with various hand crimp tools. Crimping eliminates the variability and potential for faults associated with soldering methods, resulting in consistent performance. The component supports a maximum continuous current of 3 amperes, suitable for signal and wire-to-board connections in industrial, commercial, and manufacturing environments.

Performance is assured over a temperature range from -55°C to 105°C, allowing usage in demanding environments including industrial automation, HVAC systems, instrumentation, and electronic equipment manufacturing. Its compatibility with C-Grid III modular connector housings makes it a versatile choice for modular wiring and connector applications.

Additionally, the terminal is packaged on reels, facilitating efficient automated insertion during mass production processes and improving assembly line efficiency. Phosphor bronze contacts offer mechanical strength and reliability.

Gold plating on contacts enhances conductivity and corrosion resistance. Crimp termination method simplifies installation and ensures consistent connections. Compatible with C-Grid III modular single and dual row housings.

Maximum current rating of 3A with low contact resistance of 20mΩ. Operating temperature range is -55°C to 105°C for diverse applications. Supports wire sizes from 24 to 22 AWG with insulation diameters of 1.02 to 1.47 mm.

Packaged on reels for automated assembly efficiency.

This Molex crimp terminal is ideal for use in electronics manufacturing, laboratory instrument assembly, telecommunications equipment, and any application requiring reliable wire-to-board signal connections.
