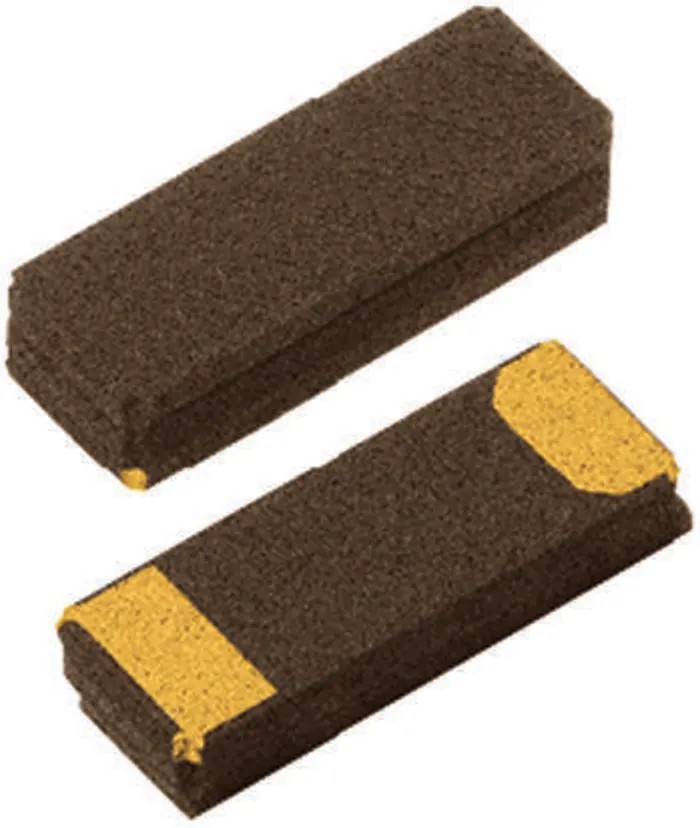

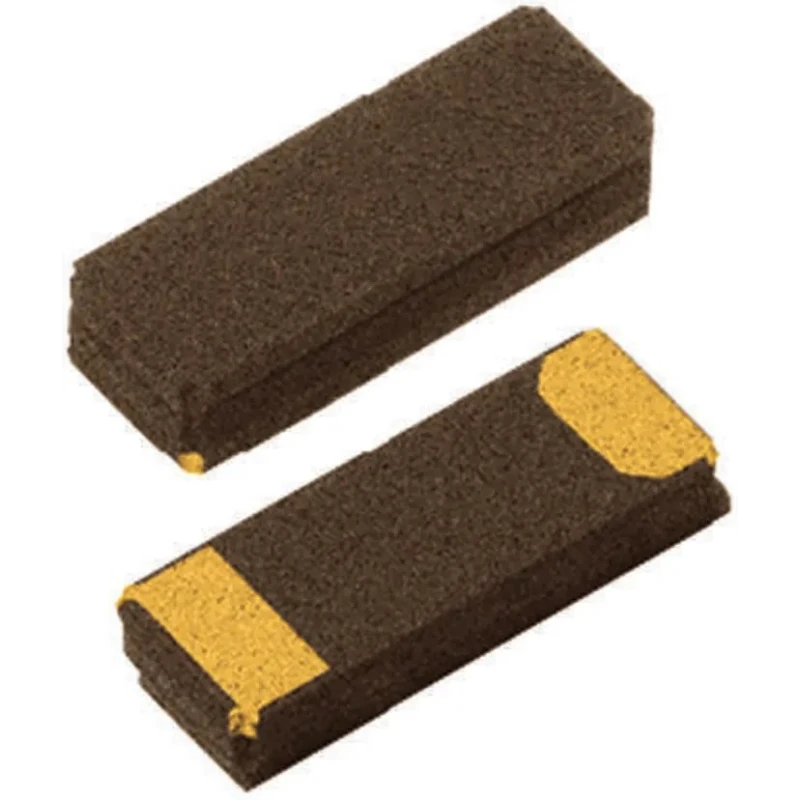

Micro Crystal 32.768 kHz Crystal ±20 ppm SMD 2-Pin Surface Mount 5 mm x 1.9 mm x 0.9 mm CC4V-T1A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Micro Crystal |
| Height | 0.9mm |
| Length | 5mm |
| Model | CC4V-T1A |
| Packaging | Tape & Reel |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | CC4V-T1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SMD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 65kΩ |
| Micro Crystal 32.768 kHz Crystal ±20 ppm SMD 2-Pin 0.9 mm 4.1 mm 1.5mmBrand | Micro Crystal |
Key Features
- Operates at a standard frequency of 32.768 kHz, ideal for timekeeping applications.
- Surface mount device (SMD) with 2 pins for compact PCB integration.
- Load capacitance of 12.5 pF ensures stable oscillation frequency.

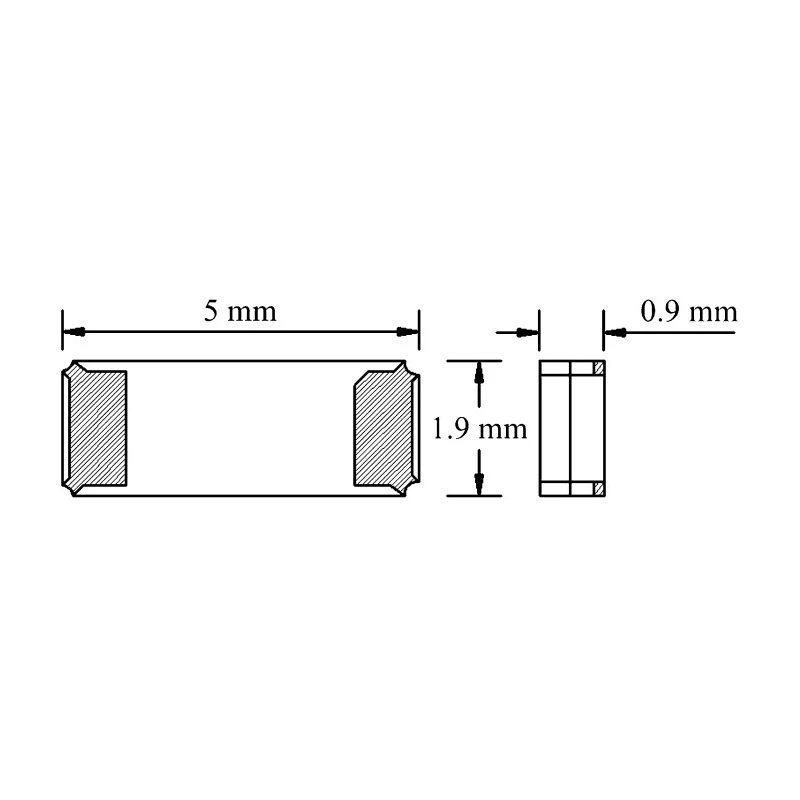

- Package dimensions are 5 mm length, 1.9 mm width, and 0.9 mm height for minimal board space consumption.
- Series resistance of 65 kΩ supporting reliable electrical performance.
- Operational temperature range from -40°C to 85°C ensures suitability in various environments.
- RoHS compliant, supporting environmentally safe usage.
- Available in tape and reel packaging for automated assembly processes.
Product Description
Micro Crystal CC4V-T1A is a surface mount 32.768 kHz crystal oscillator designed for precise timing applications in electronic circuits. This SMD device offers a frequency tolerance of ±20 ppm and a load capacitance of 12.5 pF, making it well suited for use in clocks, watches, and timing modules requiring stable frequencies.
The compact package measures 5 mm in length, 1.9 mm in width, and 0.9 mm in height, featuring a 2-pin configuration for easy PCB mounting, optimized for space savings in modern electronic device designs.
Electrical performance is characterized by a series resistance of 65 kΩ, providing dependable oscillation characteristics. The operating temperature range from -40°C up to 85°C allows deployment in harsh to moderate environmental conditions, supporting industrial, consumer electronics, and automotive applications without compromise.
As a RoHS compliant component, this crystal oscillator supports eco-friendly manufacturing practices. Its tape and reel packaging format facilitates automated surface mount technology (SMT) assembly lines, improving manufacturing efficiency.
Standard frequency of 32.768 kHz tailored for timing accuracy. Compact SMD design fits into space-constrained electronic assemblies. Stable load capacitance value guarantees frequency precision. Wide temperature range for reliable operation in varied environments.
Environmentally compliant with RoHS standards. Tape and reel packaging supports high-speed automated manufacturing.
This Micro Crystal oscillator series is ideal for industrial, laboratory, consumer electronics, and commercial products where precise timing signals are essential. It meets strict electrical and mechanical standards ensuring consistent performance and product longevity.
Buy the Micro Crystal CC4V-T1A crystal oscillator for your precise timing needs and browse the Electronics Components category at EnvMart for more quality electronic parts and accessories.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 32.768 kHz, making it suitable for precise timing applications.
This unit has a load capacitance of 12.5 pF, which ensures stable oscillation frequency.
The package dimensions are 5 mm in length, 1.9 mm in width, and 0.9 mm in height, allowing for minimal board space consumption.
It features a series resistance of 65 kΩ, supporting reliable electrical performance.
The operational temperature range is from -40°C to 85°C, ensuring suitability in various environments.
It is available in tape and reel packaging, which facilitates automated assembly processes.
This model uses surface mount technology (SMD) with a 2-pin configuration for easy PCB integration.
Yes, it is RoHS compliant, supporting environmentally safe usage.
This crystal oscillator is suitable for use in clocks, watches, and timing modules requiring stable frequencies.
The frequency tolerance of this oscillator is ±20 ppm, ensuring timing accuracy.
The country of origin for this crystal oscillator is India.
This model belongs to the CC4V-T1A series of crystal oscillators.
