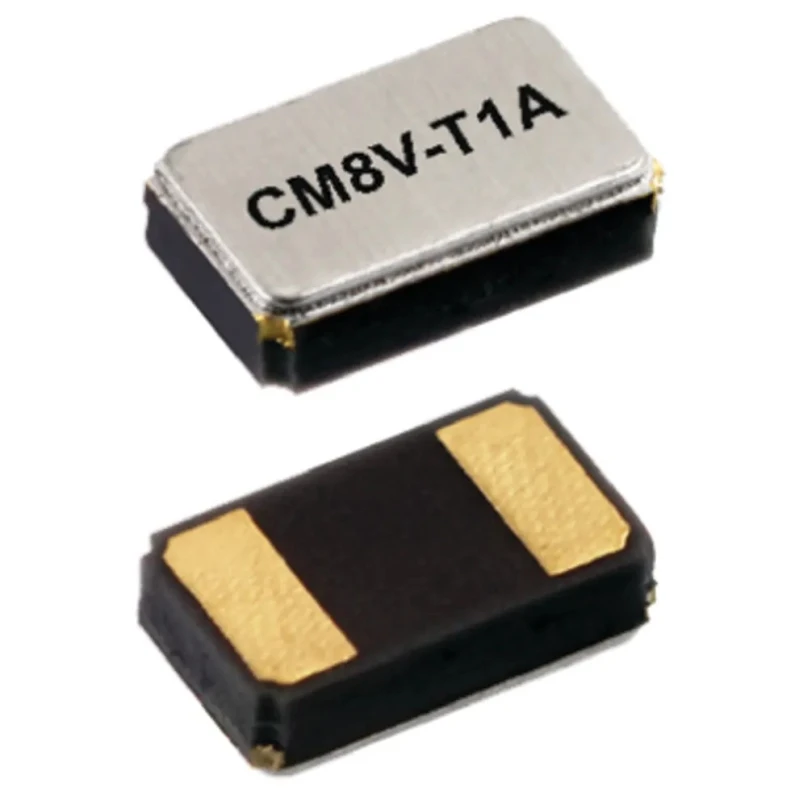

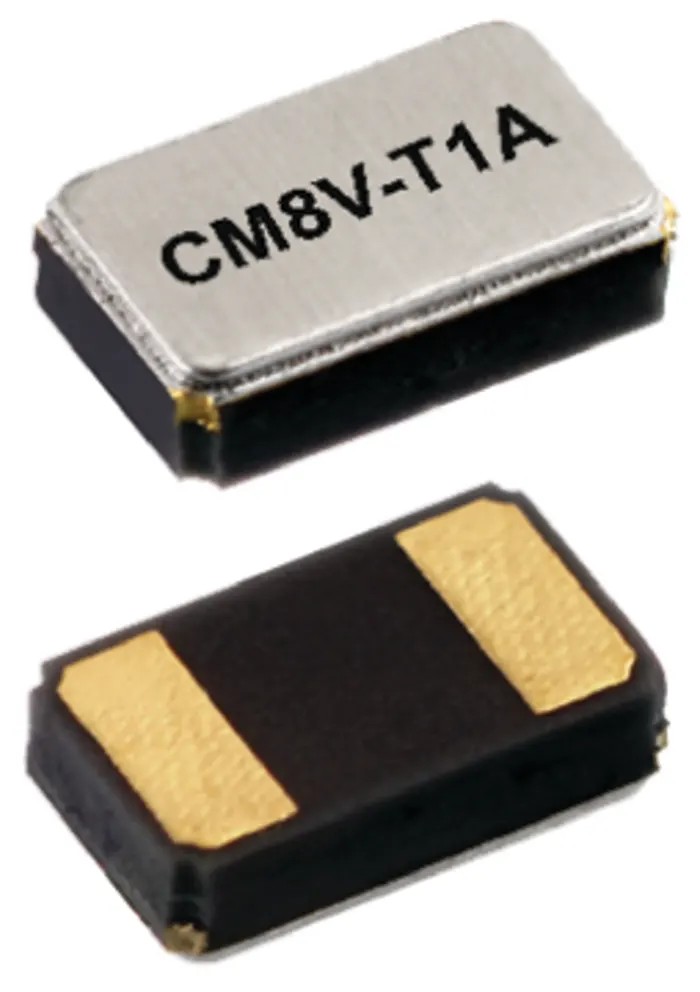

Micro Crystal 32.768 kHz Crystal ±20 ppm Surface Mount 2-Pin 0.6 mm Height 2 mm Length 1.2 mm Width CM8V-32.768-TA-020-12.5
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Micro Crystal |
| Height | 0.6mm |
| Length | 2mm |
| Model | CM8V-32.768-TA-020-12.5 |
| Packaging | Tape & Reel |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | CM8V-T1A |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 90kΩ |
| Micro Crystal 32.768kHz Crystal ±20ppm SMD 2-Pin 2 x 1.2 x 0.6mmBrand | Micro Crystal |
Key Features
- Standard frequency of 32.768 kHz ensures compatibility with timing applications.
- Surface mount package with 2 pins for easy PCB integration.
- Load capacitance of 12.5 pF suitable for oscillator circuits.
- Wide operating temperature range from -40°C to 85°C for reliability in diverse environments.
- Series resistance of 90 kΩ optimized for watch crystal applications.
- Compliance with RoHS standards for environmental safety.
- Originates from Switzerland, representing high-quality manufacturing standards.
Product Description
Micro Crystal CM8V-32.768-TA-020-12.5 is a high-precision 32.768 kHz crystal designed for surface mount applications, featuring a 2-pin configuration and compact dimensions (2 mm x 1.2 mm x 0.6 mm). This crystal provides a frequency tolerance of ±20 ppm and stability of ±3 ppm, making it ideal for use in timing devices, watch circuits, and embedded systems requiring accurate and stable oscillation.
The load capacitance is rated at 12.5 pF, ensuring compatibility with a wide range of oscillator circuit designs. Its series resistance of 90 kΩ supports efficient signal generation with minimal loss, specifically suited for watch crystal applications. Additionally, it operates reliably across an extended temperature range from -40°C to 85°C, guaranteeing performance in industrial, consumer electronics, and automotive environments.
This product complies with RoHS environmental standards and is manufactured in Switzerland, underscoring its quality and reliability for precision electronic components. The surface mount tape & reel packaging facilitates automated assembly processes, enhancing production efficiency in manufacturing.
Standard frequency of 32.768 kHz for precise timing applications. Compact surface mount 2-pin package for PCB design flexibility. Operating temperature from -40°C to 85°C for stable performance. Series resistance of 90 kΩ tailored for watch crystal use.
RoHS compliant for environmentally responsible manufacturing. Manufactured in Switzerland ensuring superior quality. Tape & reel packaging supports efficient automated production. Load capacitance of 12.5 pF for oscillator circuit compatibility.
This crystal is an essential component in a wide range of electronic applications including industrial instrumentation, embedded systems, timekeeping devices, and communication equipment. For additional related electronic components, explore the Electronics Components and Crystal Units categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal is 32.768 kHz, making it suitable for precise timing applications.

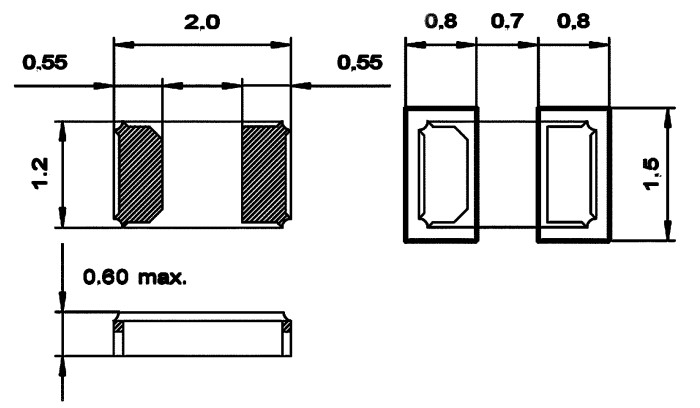

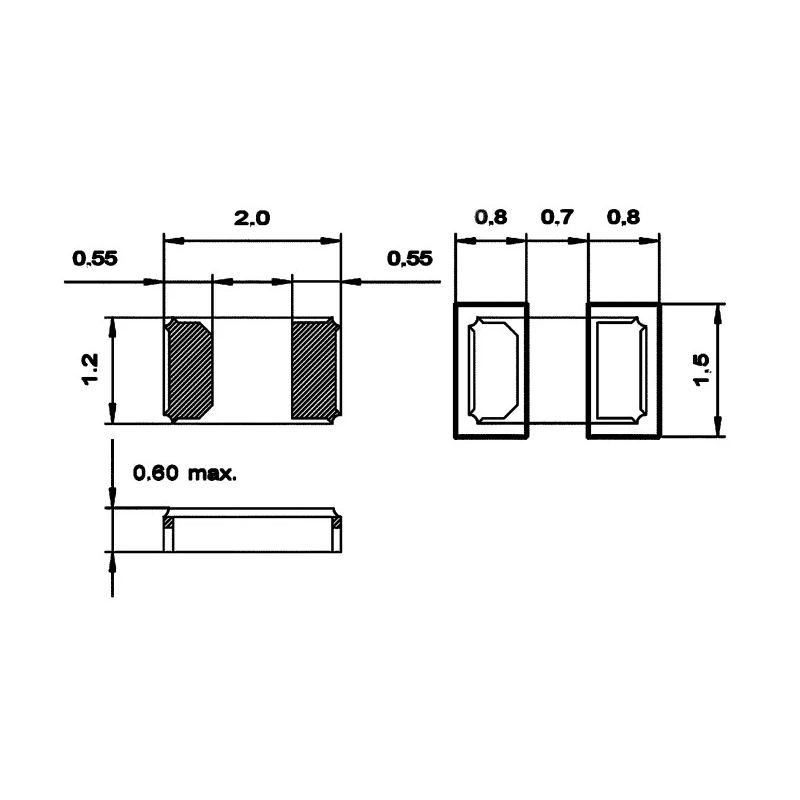

This model has compact dimensions of 2 mm in length, 1.2 mm in width, and 0.6 mm in height.
The load capacitance for this crystal is rated at 12.5 pF, ensuring compatibility with various oscillator circuit designs.
The series resistance of this crystal is 90 kΩ, optimized for efficient signal generation, particularly in watch crystal applications.
It operates reliably across an extended temperature range from -40°C to 85°C, suitable for diverse environments.
The crystal is packaged in tape & reel format, facilitating automated assembly processes during manufacturing.
Yes, this crystal complies with RoHS standards, ensuring it meets environmental safety requirements.
This model features a 2-pin configuration, designed for surface mount applications.
This crystal is suitable for a wide range of electronic applications including industrial instrumentation, embedded systems, and timekeeping devices.
This crystal belongs to the CM8V-T1A series, which is designed for high-precision timing applications.
The frequency tolerance of this crystal is ±20 ppm, providing stable performance for timing applications.
This crystal is manufactured in Switzerland, reflecting high-quality manufacturing standards.
