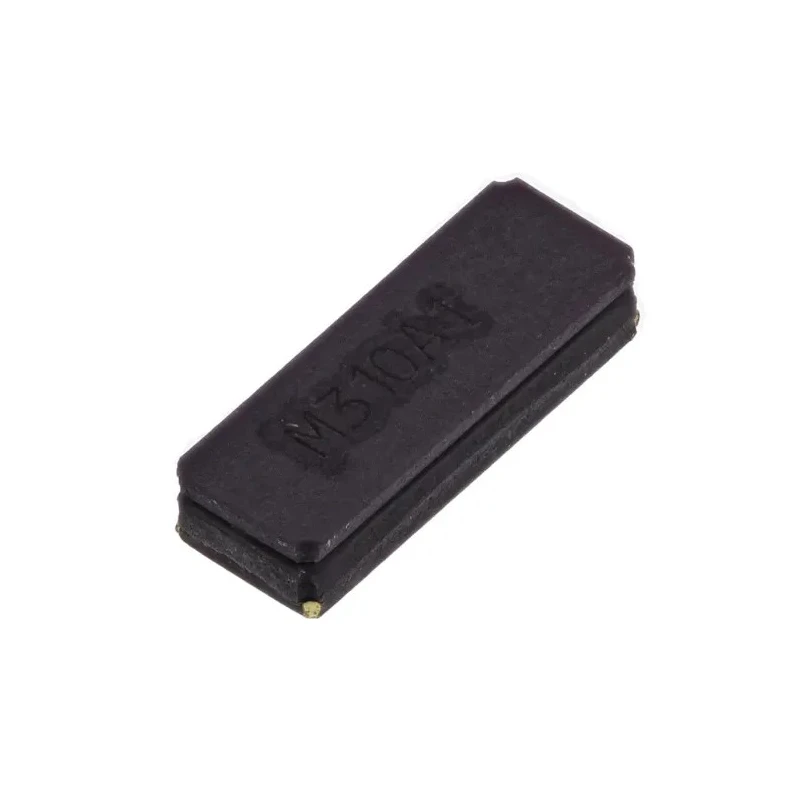

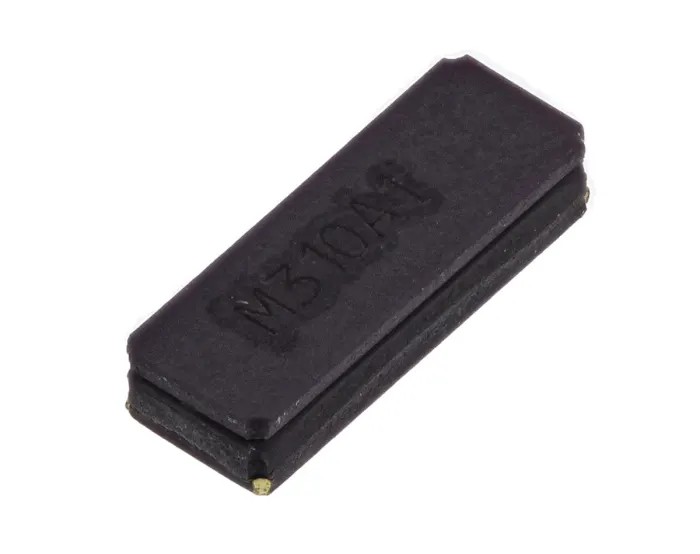

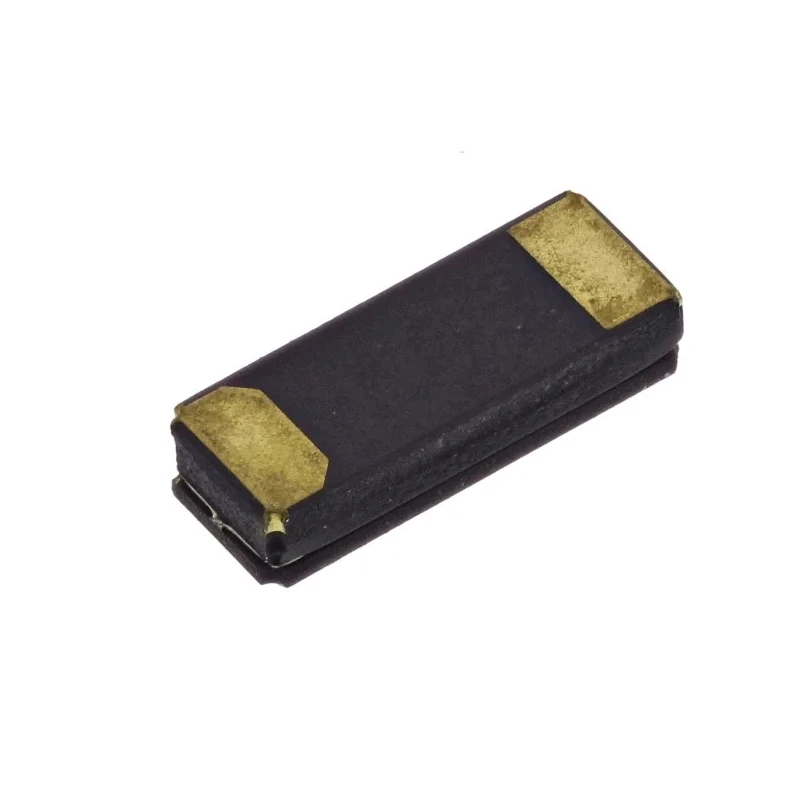

Micro Crystal 1 MHz 10pF Surface Mount Device ±100 ppm SMD 2-Pin Crystal CC4V-1.00000-TA-100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Micro Crystal |
| Height | 0.9mm |
| Length | 5mm |
| Model | CC4V-1.00000-TA-100 |
| Packaging | Tape & Reel |
| Width | 1.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SMD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 1MHz |
| Load Capacitance | 10pF |
| Series Resistance | 1.2kΩ |
Key Features
- This crystal operates at a standard frequency of 1 MHz.
- The device is designed as a Surface Mount Device (SMD) with a 2-pin layout.
- Rated load capacitance of 10 pF ensures stable performance in electronic circuits.

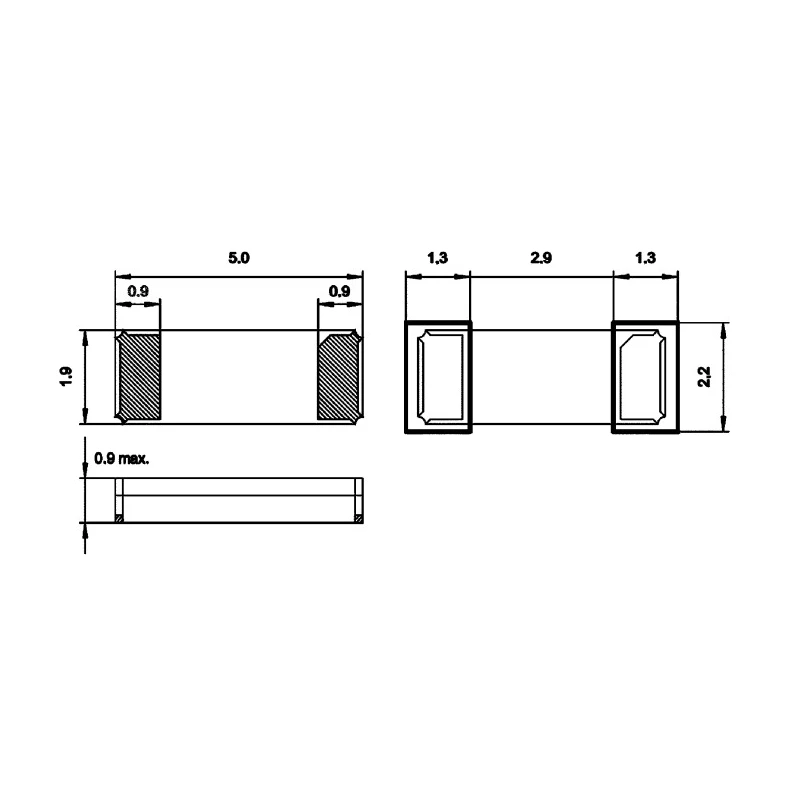

- Compact package dimensions of 5 mm length, 1.9 mm width, and 0.9 mm height allow easy PCB integration.
- Operating temperature range spans from -40°C to 85°C for industrial applications.
- Series resistance is rated at 1.2 kΩ, compatible with most oscillator circuits.
- Package supplied in tape and reel format for automated assembly processes.
Product Description
Micro Crystal CC4V-1.00000-TA-100 is a 1 MHz frequency crystal designed as a Surface Mount Device (SMD) with a 2-pin configuration, ideal for high precision timing and oscillator circuits. Featuring a load capacitance of 10 pF, this crystal guarantees stable frequency output with a tight ±100 ppm tolerance, essential for applications requiring high accuracy.
The compact ceramic package measures 5 mm in length, 1.9 mm in width, and 0.9 mm in height, facilitating integration into densely populated printed circuit boards (PCBs). Its operating temperature range from -40°C to 85°C makes it suitable for industrial and commercial applications where temperature stability is critical.
With a series resistance of 1.2 kΩ, this crystal is optimized to minimize oscillator load and power consumption. Packaged in tape and reel format, it supports efficient automated assembly lines and high-volume manufacturing setups.
This crystal complies with RoHS standards, ensuring it meets environmental directives for hazardous substances. It is not rated for automotive use but excels in a wide range of industrial, laboratory, and electronic manufacturing contexts.
Micro Crystal’s CC4V-1.00000-TA-100 enables superior oscillator performance for communication devices, instrumentation, and control systems, delivering consistent, reliable frequency stabilization.
Operates at 1 MHz standard frequency with 10 pF load capacitance. Compact Surface Mount Device design with 2 pins and small footprint. Frequency tolerance of ±100 ppm for precision applications. Wide operating temperature range from -40°C to 85°C supports industrial environments.
Series resistance 1.2 kΩ to optimize oscillator efficiency. RoHS compliant, environmentally friendly design. Delivered in tape and reel packaging for streamlined production. Explore Micro Crystal’s range of crystal units and Electronic Components to enhance your design projects with trusted and precision-engineered parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 1 MHz.
This crystal has a rated load capacitance of 10 pF.
The compact dimensions of this SMD are 5 mm in length, 1.9 mm in width, and 0.9 mm in height.
The series resistance is rated at 1.2 kΩ.
It operates within a temperature range of -40°C to 85°C.
It is supplied in tape and reel format for efficient automated assembly processes.
This model is designed as a Surface Mount Device (SMD) with a 2-pin configuration.
Yes, this crystal complies with RoHS standards, ensuring it meets environmental directives for hazardous substances.
It is suitable for a wide range of industrial, laboratory, and electronic manufacturing applications requiring high precision timing.
The frequency tolerance is ±100 ppm, which is essential for applications requiring high accuracy.
The country of origin for this model is India.
The series resistance of 1.2 kΩ is optimized to minimize oscillator load and power consumption.
