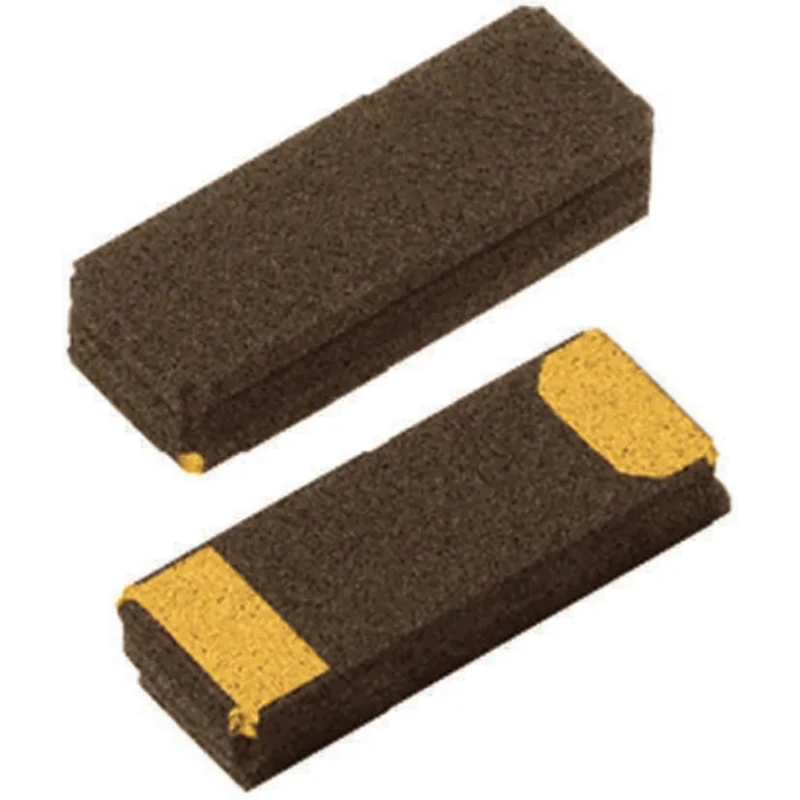

Micro Crystal 32.768 kHz Crystal ±20 ppm SMD 2-Pin 5 mm x 1.9 mm x 0.9 mm CC4V-T1A

The Micro Crystal CC4V-T1A model is a precision 32.768 kHz crystal unit designed specifically for low-frequency timing applications such as real-time clocks (RTC) in industrial, commercial, and consumer electronics.

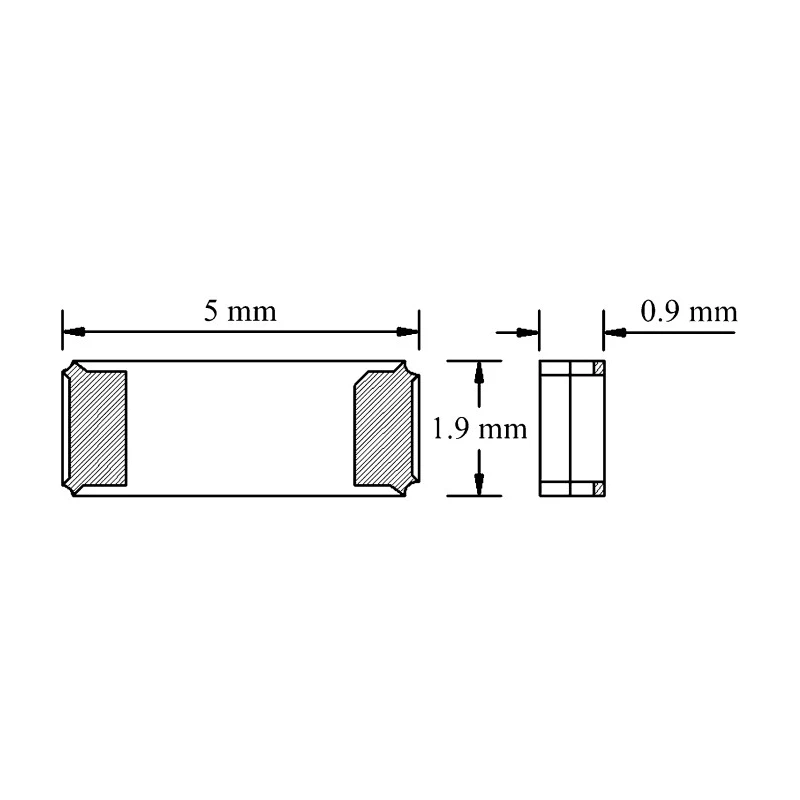

This Surface Mount Device (SMD) crystal features a 2-pin configuration with a compact package measuring 5 mm in length, 1.9 mm in width, and 0.9 mm in height, allowing seamless mounting on printed circuit boards where space constraints are critical.

The ±20 ppm frequency tolerance ensures highly accurate and reliable oscillation frequency, crucial in devices requiring stable timekeeping functions. Its load capacitance of 9 pF supports consistent startup and operational stability.

The crystal unit is capable of operating in harsh environments with an extended temperature range from -40°C up to 85°C, making it suitable for industrial and automotive applications without compromise.

With a series resistance of 65 kΩ, the device offers efficient oscillation with minimal energy loss, contributing to low power consumption devices. Standard frequency: 32.768 kHz for precise timing applications. Mount type: Surface mount device for easy PCB assembly.

Load capacitance of 9 pF for stable oscillation. Compact SMD package (5 mm x 1.9 mm x 0.9 mm). Operating temperature range from -40°C to 85°C ensures durability. RoHS compliant, environmentally safe and reliable. Tape and reel packaging supports automated manufacturing processes.

Commonly used in consumer electronics, industrial control systems, medical devices, and automotive electronics, this crystal provides dependable frequency reference that is critical for synchronous operations.

This Micro Crystal CC4V-T1A model offers a trusted solution for engineers seeking precision clock crystals that combine small footprint and robust performance. Explore more Crystal Units and related electronic components on EnvMart for your industrial and commercial needs.
