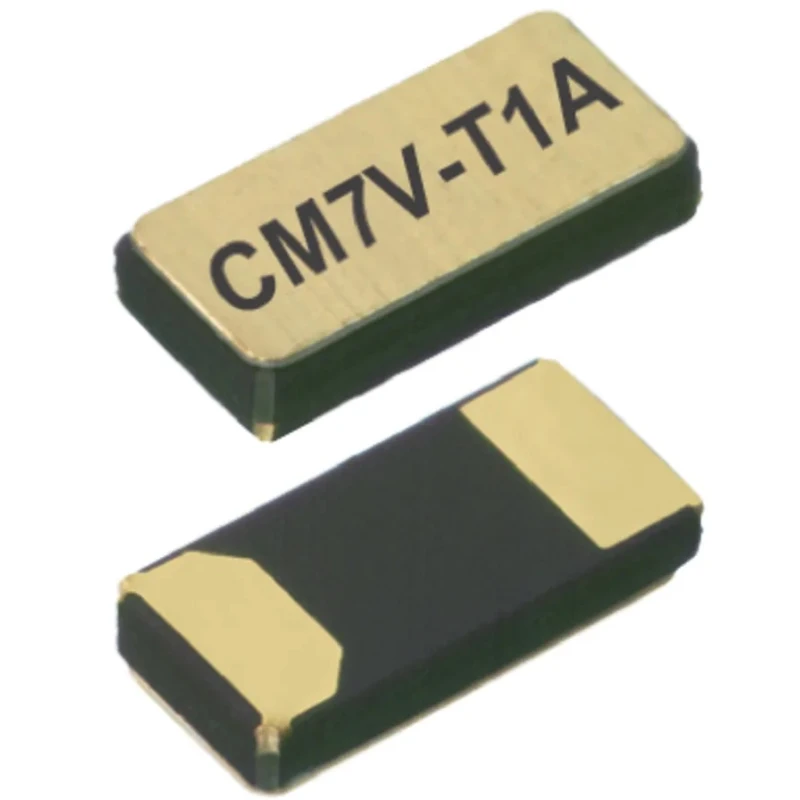

Micro Crystal 32.768 kHz Crystal 9pF ±20 ppm Surface Mount 2-Pin 0.65x3.2x1.5mm CM7V-T1A
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Micro Crystal |
| Height | 0.65mm |
| Length | 3.2mm |
| Model | CM7V-T1A |
| Packaging | Tape & Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | CM7V-T1A |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 9pF |
| Series Resistance | 70kΩ |
Key Features
- This crystal operates at a standard frequency of 32.768 kHz with a load capacitance of 9pF.
- It features a ±20 ppm frequency tolerance ensuring accurate timekeeping.

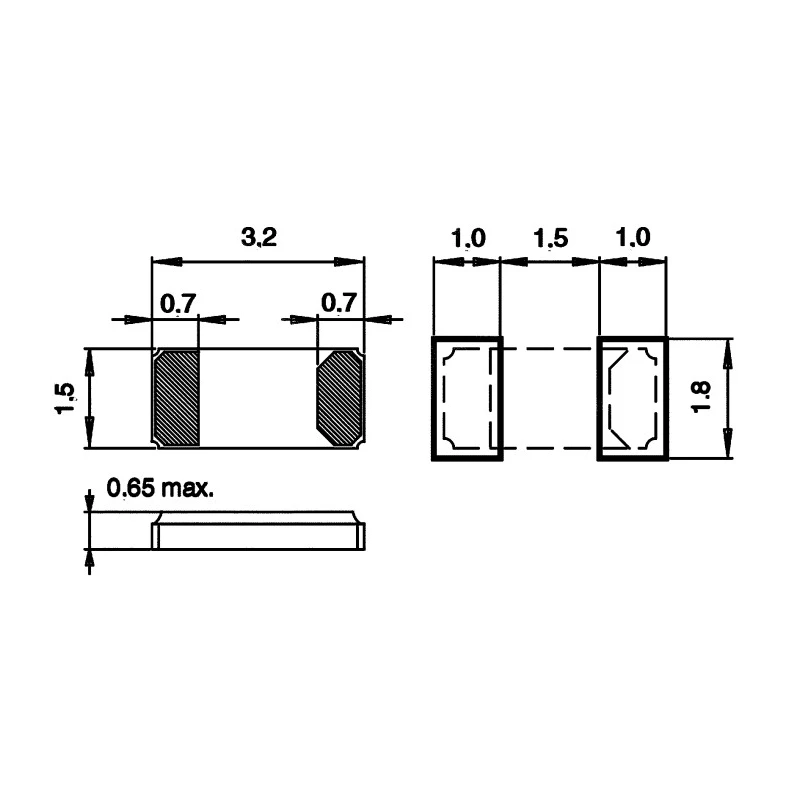

- The package is a 2-pin surface mount type, sized 0.65 mm in height, 3.2 mm in length, and 1.5 mm in width.
- Designed with automotive standard AEC-Q200 for robust performance in demanding environments.
- Its minimum operating temperature is -40°C and maximum is 125°C, suitable for industrial applications.
- The series resistance is 70 kΩ, optimizing circuit efficiency.
- It is RoHS compliant and originates from Switzerland, assuring quality and environmental compliance.
Product Description
Micro Crystal CM7V-T1A is a precision crystal unit operating at 32.768 kHz frequency, designed for surface mount applications. This 2-pin crystal unit features a standard load capacitance of 9pF and frequency tolerance of ±20 ppm, making it ideal for timing and oscillator circuits in electronic devices.
The compact package dimensions of 0.65 mm height, 3.2 mm length, and 1.5 mm width enable easy integration into densely populated printed circuit boards (PCBs). This component complies with automotive industry standard AEC-Q200, ensuring durability and reliability under harsh automotive environments.
Its operating temperature range from -40°C to 125°C supports a wide variety of industrial, automotive, and commercial applications requiring stable frequency performance over temperature variations. The series resistance of 70 kΩ contributes to its efficient electrical characteristics.
Micro Crystal CM7V-T1A is supplied in tape and reel packaging for high-volume automated assembly efficiency. This RoHS-certified model is manufactured in Switzerland, guaranteeing high quality and compliance with environmental standards.
This crystal operates at a standard frequency of 32.768 kHz with load capacitance 9pF. The package is a 2-pin surface mount type sized 0.65x3.2x1.5 mm. Frequency tolerance is ±20 ppm ensuring precise oscillator accuracy.
Operates reliably between -40°C and 125°C. Compliance with automotive standard AEC-Q200. Series resistance of 70 kΩ improves circuit performance. Supplied on tape & reel for automated PCB assembly.
This crystal unit is suited for industrial, automotive, telecommunications, and precision electronic timing applications. Browse our range of electronic components to find compatible oscillators and passive components for your design projects at EnvMart.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal operates at a standard frequency of 32.768 kHz, making it suitable for timing and oscillator circuits in electronic devices.
This model features a load capacitance of 9pF, which is standard for many timing applications.
The dimensions of this crystal are 0.65 mm in height, 3.2 mm in length, and 1.5 mm in width, allowing for easy integration into PCBs.
It has a frequency tolerance of ±20 ppm, ensuring accurate timekeeping in various applications.
The series resistance of this crystal unit is 70 kΩ, which helps optimize circuit efficiency.
The operating temperature range is from -40°C to 125°C, making it suitable for a variety of industrial and automotive applications.
Yes, this model is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It complies with the automotive standard AEC-Q200, which ensures reliability under harsh conditions.
The crystal is supplied in tape and reel packaging, facilitating high-volume automated assembly processes.
This unit is a surface mount type, designed for easy integration into electronic circuits.
The CM7V-T1A is manufactured in Switzerland, ensuring high quality and compliance with standards.
It is suitable for industrial, automotive, telecommunications, and precision electronic timing applications.
