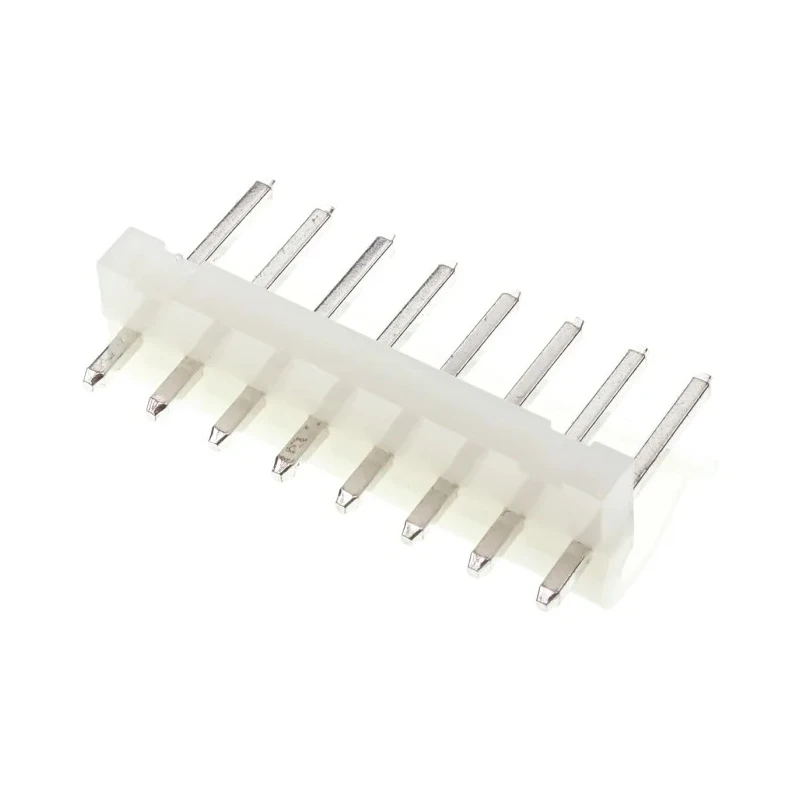

Molex KK 396 Series Straight Through Hole Pin Header, 8 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 09-65-2088
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.6mm |
Key Features
- The pin header features a single row configuration suitable for wire-to-board connections.
- Contacts are made of brass with tin plating for reliable conductivity.
- The housing is constructed from durable nylon material, providing good insulation and mechanical strength.
- It operates at voltages up to 250 V and currents up to 7 A.
- The product supports a wide temperature range from -40°C to 105°C, ensuring robust performance in various industrial environments.
- Contact tail pins measure 3.6 mm in length for secure solder termination.
- This header is commonly used in automotive, industrial, consumer electronics, datacommunication, and telecommunications applications.
- The friction locking mechanism ensures a secure mating connection with compatible KK 396 series housings.
Product Description
Molex 09-65-2088 KK 396 Series Straight Through Hole Pin Header is a precision-engineered wire-to-board connector featuring 8 male brass contacts arranged in a single row with a 3.96 mm pitch. It is unshrouded and intended for through-hole mounting on printed circuit boards.
The nylon housing offers electrical insulation and mechanical stability, while the tin-plated brass contacts provide excellent conductivity and corrosion resistance. The contact tail length of 3.6 mm is optimized for effective soldering and secure electrical connections.
Designed for demanding electrical applications, this pin header supports a continuous operating voltage of up to 250 V and current ratings up to 7 A. The operating temperature range of -40°C to 105°C allows implementation in diverse environmental conditions, including automotive systems, industrial machinery, consumer devices, and telecommunications infrastructure.
The friction locking mechanism ensures a reliable connection with compatible KK 396 series crimp housings like series 5239 and SPOX 5195. This makes it an ideal connector for modular assemblies requiring easy maintenance and secure mating.
The pin header provides a straight orientation with unshrouded contact design. Brass contacts with tin plating ensure durable and stable electrical performance. The nylon housing allows insulation compliant with industrial standards.
The component operates reliably in temperatures from -40°C to 105°C. It is rated for 250 V voltage and 7 A current capacity. Designed for automotive, industrial, consumer electronics, datacommunication, and telecom uses.
Easy to mate with KK 396 series housings thanks to friction locking.
This Molex KK 396 Series Pin Header enhances PCB connectivity solutions, combining durability, performance, and ease of use for various industrial and commercial electronics applications. It is a trusted component in power and signal distribution where reliability is critical.
Explore more PCB connectors and headers at EnvMart to find comprehensive connectivity solutions for your electronic design requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 250 V.
This model has a current capacity of up to 7 A.
The contacts are made of brass with tin plating, while the housing is constructed from nylon material.
The pitch size of this pin header is 3.96 mm.
It operates within a temperature range of -40°C to 105°C.
This pin header features 8 male contacts.
This model uses through-hole mounting on printed circuit boards.
This pin header is unshrouded, designed for straight orientation.
The contact tail pins measure 3.6 mm in length for secure solder termination.
It is commonly used in automotive, industrial, consumer electronics, datacommunication, and telecommunications applications.
This model supports solder termination.
It features a friction locking mechanism for a secure mating connection with compatible KK 396 series housings.
