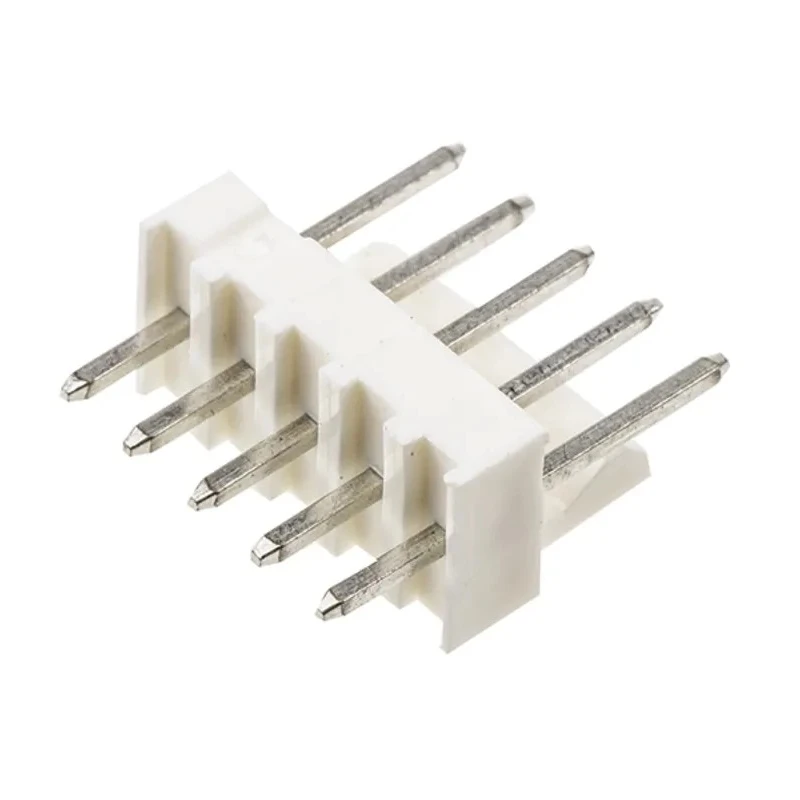

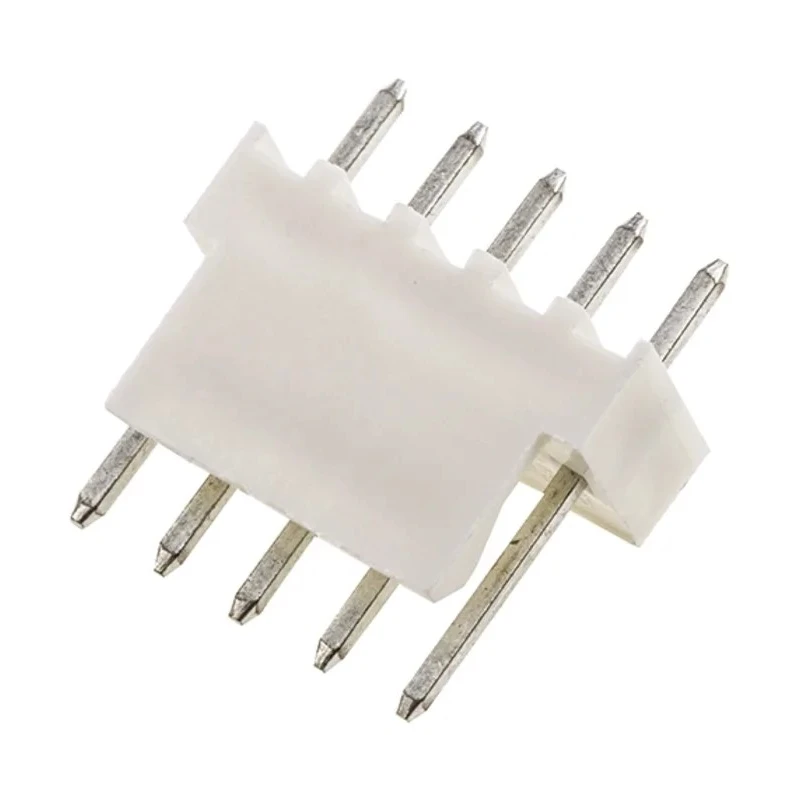

Molex KK 254 Series Straight Through Hole Pin Header, 5 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 22-23-2051

Molex 22-23-2051 KK 254 Series is a straight through hole pin header designed for efficient wire-to-board connections in electronic assembly. Featuring 5 brass male contacts plated with tin, this pin header ensures reliable electrical conductivity and mechanical performance.

The header uses a 2.54 mm pitch and is unshrouded with a single row configuration, providing a precise fit on PCBs through solder-type through hole mounting. The nylon housing material delivers robust insulation and temperature resistance, withstanding operating conditions from -40°C to 80°C.

This pin header supports a maximum current rating of 4A and a maximum voltage of 500V, making it suitable for medium power applications in various industries such as medical devices, automotive electronics, telecommunications equipment, and household white goods.

Its flame retardant properties ensure enhanced safety by resisting ignition for more than 10 seconds. The design prevents accidental contact between adjacent pins during soldering, improving manufacturing reliability.

This connector mates with Molex 2695, 6471, 7880, 4455, and 7720 Series housings, enabling broad compatibility for system assembly. The straight through hole mounting provides secure and stable connections in PCB applications.

Constructed with brass contacts and tin plating ensuring reliable conductivity. Features unshrouded, straight male pins for through-hole mounting. Rated for a maximum current of 4A and voltage up to 500V. Made with nylon housing material suitable for various temperature conditions.

Supports minimum operating temperature of -40°C up to maximum 80°C. Pitch of 2.54 mm prevents accidental shorting during soldering. Flame retardant design that resists burning for over 10 seconds. Applicable in medical equipment, automotive, telecommunications, and white goods.

Compatible with multiple series housings including 2695, 6471, 7880, 4455, and 7720.

Perfect for industrial, medical, telecommunications, automotive, and commercial electronics applications, this Molex KK 254 Series pin header offers reliable performance on demanding PCBs.
