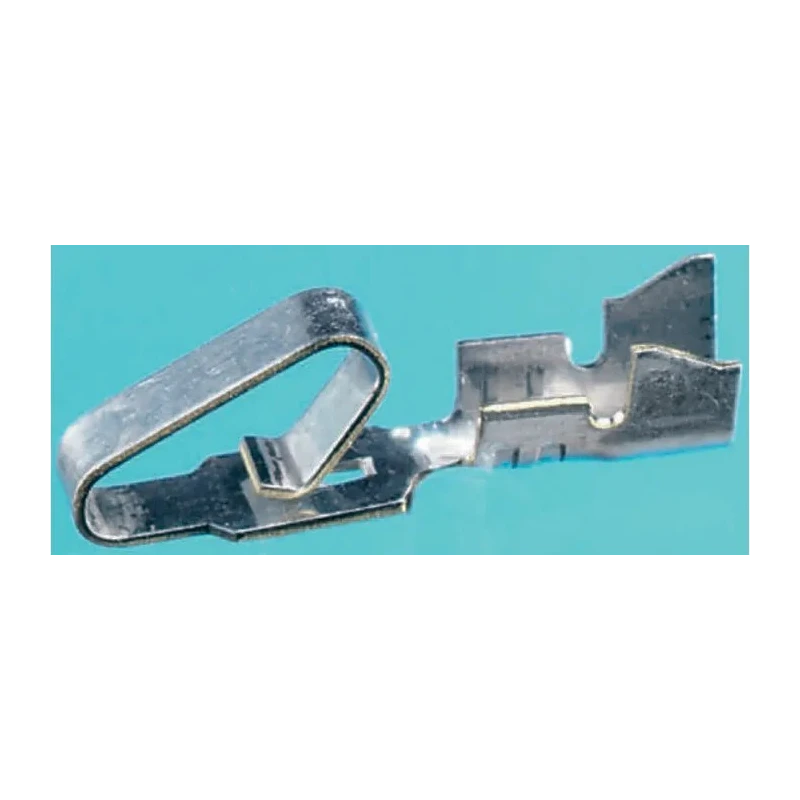

Molex 2478 Series Female Crimp Terminal for KK 396 Connector Housing, 24 AWG Min, 18 AWG Max, Gold Plated Brass 08-55-0103
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Current | 5A |
| Gender | Female |
| Contact Material | Brass |
| Series | 2478 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| For Use With | KK 396 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 6mΩ |
Key Features
- The terminal features gold plated brass contacts for enhanced conductivity and corrosion resistance.
- Supports current rating of up to 5A in typical electronic applications.
- Operates reliably within temperature range of 0°C to 50°C.
- Utilizes crimp termination style ensuring secure and dependable wire connection.
- Dual cantilever design provides consistent contact pressure and secure locking tang prevents terminal back out.
- Ideal for automotive, consumer electronics, medical, communication, networking, and data/computing industries.
- Manufactured in Ireland with adherence to high-quality standards.
Product Description
Molex 08-55-0103 Female Crimp Terminal from the 2478 Series is engineered for reliable electrical connections within the KK 396 Connector Housing. It supports a wire gauge range from 24 AWG (0.2mm²) minimum to 18 AWG (0.8mm²) maximum and is rated for a continuous current of 5A. Featuring gold plated brass contacts, this connector terminal ensures high conductivity and resistance to corrosion, critical in demanding industrial and commercial environments.
The crimp style termination provides secure mechanical stability and electrical contact which is essential in automotive, medical, consumer electronic, communication, networking, and data/computing applications. The dual cantilever design with a square post contact area mimics spring-like contact behavior ensuring consistent mating force. A locking tang feature prevents the terminal from backing out once loaded into the connector housing.
This terminal is designed to operate effectively within temperatures ranging from 0°C up to 50°C, making it suitable for a variety of controlled environment applications. Manufactured in Ireland, it meets high quality and precision standards required for modern industrial use.
Overall, the Molex 2478 Series female crimp terminal is an ideal solution for assembling robust and reliable PCB and wire harness connections in precision electronics and power components.
The terminal supports wire sizes from 18 to 26 AWG ensuring versatility. Gold plating on brass contacts optimizes electrical contact performance. Crimp termination style promotes secure and maintenance-free connections. Robust locking tang prevents terminal disengagement in operation.
Widely used across automotive, medical, communications, networking, and consumer electronic sectors. Designed for use with KK 396 connector housings for modular system assembly. Operating temperature from 0°C to 50°C suits typical industrial environments.
Explore Molex products and other high-quality electronic components and connectors at EnvMart for your industrial and manufacturing requirements.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current rating of up to 5A, making it suitable for typical electronic applications.
This model accommodates a wire gauge range from 24 AWG (0.2mm²) minimum to 18 AWG (0.8mm²) maximum.
It utilizes a crimp termination style, ensuring a secure and dependable wire connection.
The contacts are made of brass and feature gold plating for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of 0°C to 50°C.
It is specifically designed for use with the KK 396 connector housing.
The dual cantilever design provides consistent contact pressure, ensuring reliable electrical connections.
A locking tang feature is included to prevent the terminal from backing out once loaded into the connector housing.
It is manufactured in Ireland, adhering to high-quality standards.
It is widely used in automotive, consumer electronics, medical, communication, networking, and data/computing industries.
The maximum contact resistance is specified at 6mΩ.
This terminal is designed as a female crimp terminal.
