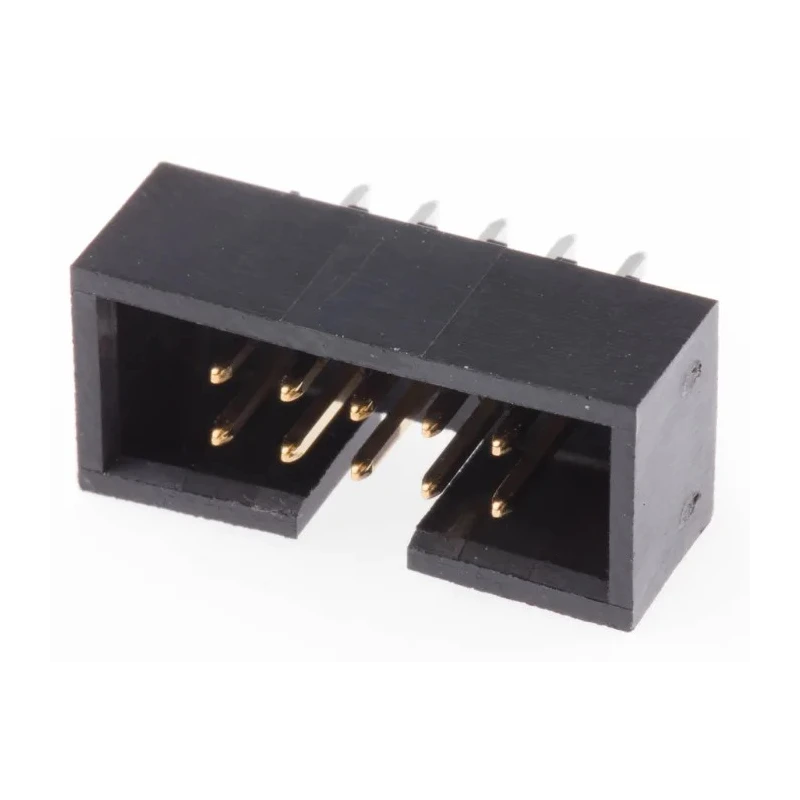

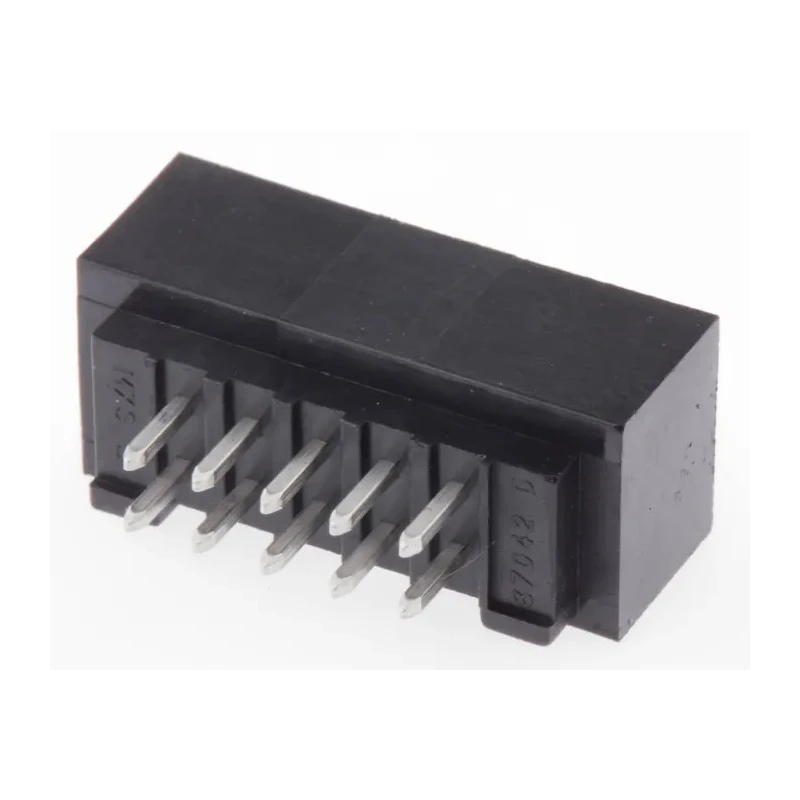

Molex C-Grid Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded, 250V, 2.5A 70246-1001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | C-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
| Mating Pin Length | 2.54mm |
Key Features
- This PCB header supports a maximum current of 2.5A at 250V for industrial and electronic applications.
- The housing is made from durable polybutylene terephthalate ensuring stability and insulation.
- Features a straight orientation with shrouded connector system for enhanced protection and durability.
- Operating temperature ranges from -55°C to 120°C suitable for various environments.
- Termination is via soldering with a contact pin tail length of 3.43 mm and mating pin length of 2.54 mm.
- Includes 10 contacts arranged in 2 rows with a precise pitch of 2.54 mm to match standard PCB layouts.
- Gold plating on contacts ensures optimal conductivity and corrosion resistance.
- Designed for vertical Dual Inline (DIL) configuration compatible with Molex 70058 series terminals.
Product Description
Molex 70246-1001 C-Grid Series Straight Through Hole PCB Header is a precision electronic component designed for reliable wire-to-board connections. This shrouded header features 10 male contacts arranged in two rows with a pitch of 2.54 mm, making it compatible with standard PCB footprints.
The connector housing is fabricated from polybutylene terephthalate, providing excellent electrical insulation and mechanical strength. The contacts are made of phosphor bronze with gold plating of 0.38 μm thickness to enhance conductivity and corrosion resistance.
Rated for a maximum current of 2.5 A and voltage of 250 V, this header operates efficiently within a temperature range from -55°C up to 120°C, suitable for diverse industrial conditions. It uses a through-hole mount type with solder termination for secure, permanent connections on PCB assemblies.
The shrouded design safeguards the contacts by providing mechanical protection and helps to prevent accidental shorting or damage during assembly and use. The package mates with Molex 70058 series terminals commonly stocked under part number 670-6293.
This header is ideal for use in industrial, manufacturing, electronics assembly, and testing applications requiring dependable interconnections. Molex's design ensures a high quality, long-life solution for electronic engineers and technicians working on control boards, embedded systems, and power distribution units.
Available as part of the C-Grid series, the 70246-1001 model provides a fusion of durability, precision, and ease of integration in PCB mounted connectors. Explore related PCB connectors and headers in the Electronics & Electricals category at EnvMart for a comprehensive selection of components tailored for your technical needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 2.5A at a voltage of 250V.
It features 10 male contacts arranged in 2 rows with a pitch of 2.54 mm, suitable for standard PCB layouts.
The housing is made from polybutylene terephthalate, providing excellent electrical insulation and mechanical strength.
The operating temperature ranges from -55°C to 120°C, making it suitable for various environments.
Termination is via soldering, ensuring secure and permanent connections on PCB assemblies.
It uses a wire-to-board connector system, designed for reliable interconnections.
The tail pin length is 3.43 mm and the mating pin length is 2.54 mm.
This model is shrouded, providing mechanical protection for the contacts.
The contacts are made of phosphor bronze with gold plating to enhance conductivity and corrosion resistance.
It is designed to mate with Molex 70058 series terminals, commonly stocked under part number 670-6293.
The country of origin for this PCB header is India.
This header is part of the C-Grid series, known for its reliable wire-to-board connections.
