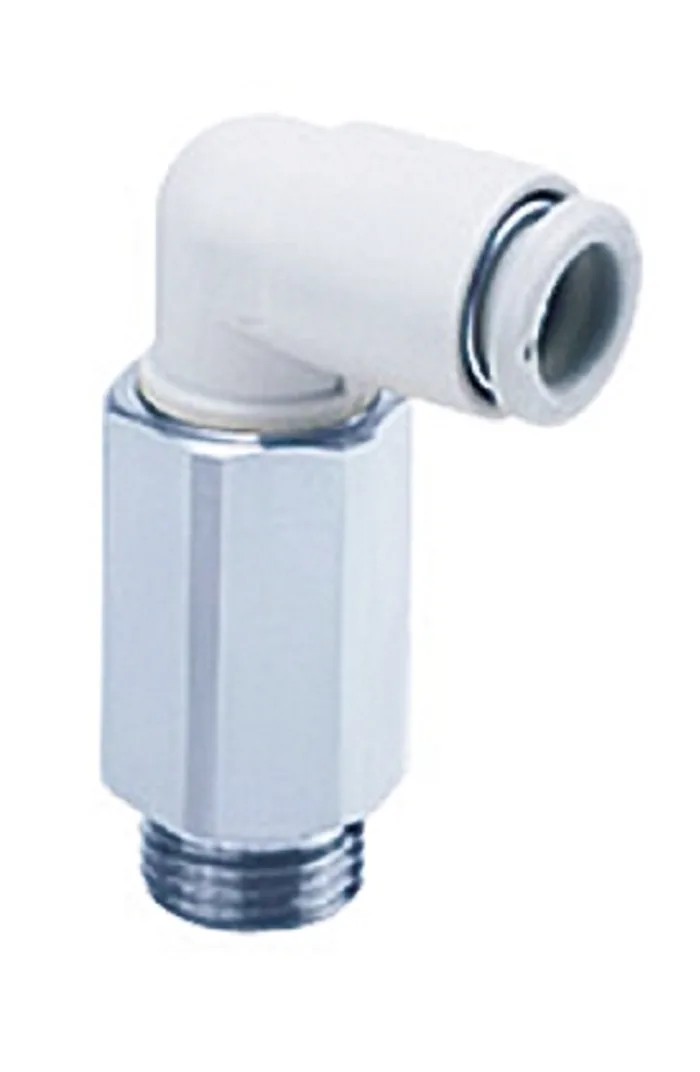

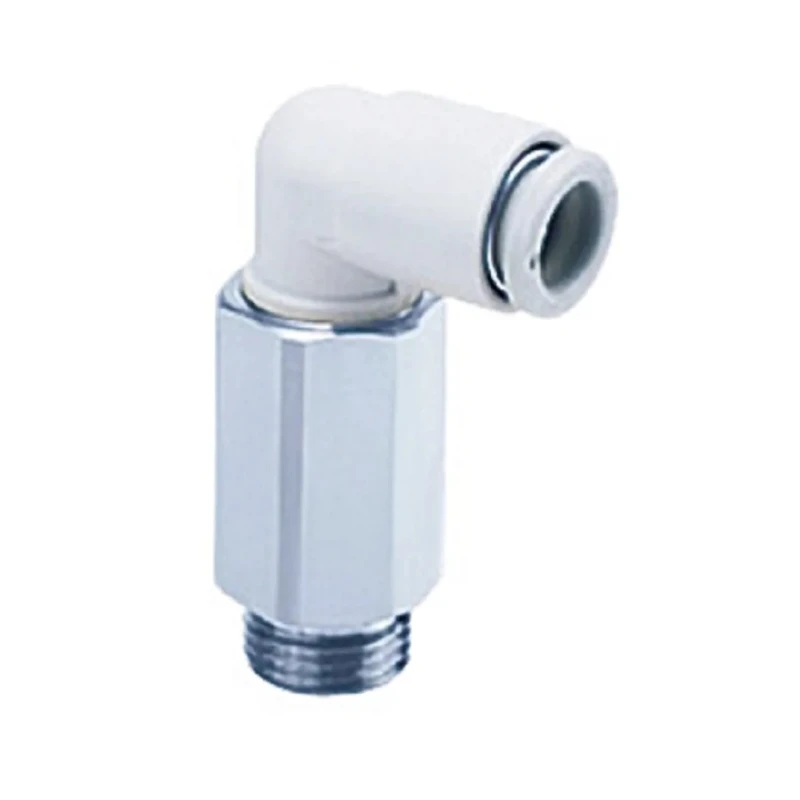

SMC KQ2 Series Brass Pneumatic Fitting Male, 10-32 UNF Thread, 3mm Push-in, 90° Elbow KQ2L03-32A
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Material | Brass |
| Model | KQ2L03-32A |
| Connection Type | Threaded-to-Tube |
| Finish | Electroless Nickel Plated |
| Series | KQ2 |
| Maximum Operating Temperature | 60°C |
| Angle | 90° |
| Standards/Approvals | RoHS |
| Connection Size A | UNF 10-32 Male |
| Connection Thread Standard | UNF |
| Connection Thread Size | 10-32 UNF |
| Connection Gender | Male |
| Connection Size B | Push In 5/32 in |
| Tube Connection Type | Push-in |
| Tube Connection Size | 3mm |
Key Features
- Constructed from durable brass with electroless nickel plating for corrosion resistance.
- Designed as a 90° male elbow to connect female thread at right angles.
- Compatible with UNF 10-32 male thread and 3mm push-in tube size.
- Suitable for operating temperatures up to 60°C without chemical resistance.
- Compact design allows installation in confined spaces.
- Complies with RoHS standards ensuring environmental safety.
- Low force required for fitting and removal, enhancing user convenience.
- Supports pressure ranges from low vacuum to 1 MPa for versatile applications.
Product Description
SMC KQ2L03-32A is a brass pneumatic fitting from the KQ2 Series designed as a male elbow with a 10-32 UNF threaded connection and a 3mm push-in tube connection. Its electroless nickel plating provides corrosion resistance, making it suitable for demanding pneumatic applications.
The compact 90° elbow configuration facilitates piping female threaded components at right angles, ideal for installations in confined or restricted spaces. This fitting requires low insertion and removal force, improving handling efficiency and reducing wear on connected components.
It operates reliably under a maximum temperature of 60°C and is compliant with RoHS, ensuring it meets environmental and safety regulations. The material is brass without chemical resistance, designed for general pneumatic fluid power usage.
This male elbow fitting supports a wide pressure range from a low vacuum up to 1 MPa, making it suitable for various industrial applications including manufacturing automation, fluid power systems, and pneumatic control setups.
Durable brass construction with electroless nickel plating for corrosion resistance. Compact 90° male elbow design ideal for confined spaces. Compatible with 10-32 UNF male threaded connections and 3mm push-in tubing. Low force for easy installation and removal.
RoHS compliant ensuring environmental safety. Maximum operating temperature of 60°C. Supports pressure from low vacuum up to 1 MPa.
This pneumatic fitting is essential for building or maintaining pneumatic systems in industrial, manufacturing, and fluid power applications where reliability and compact design are critical. Browse more Pneumatic Fittings and components in EnvMart for enhanced automation and fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this fitting is 60°C.
It features a threaded-to-tube connection, specifically a UNF 10-32 male thread and a 3mm push-in tube connection.
This fitting is constructed from brass and has an electroless nickel plating for corrosion resistance.
The KQ2L03-32A is designed as a 90° elbow fitting.
It supports a pressure range from low vacuum up to 1 MPa.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The compact 90° elbow design allows for easier installation in confined or restricted spaces.
The tube connection size for this fitting is 3mm.
The connection gender is male, designed to connect to female threaded components.
It is suitable for various industrial applications, including manufacturing automation and fluid power systems.
This fitting requires a low force for both fitting and removal, enhancing user convenience.
The KQ2L03-32A fitting is manufactured in India.
