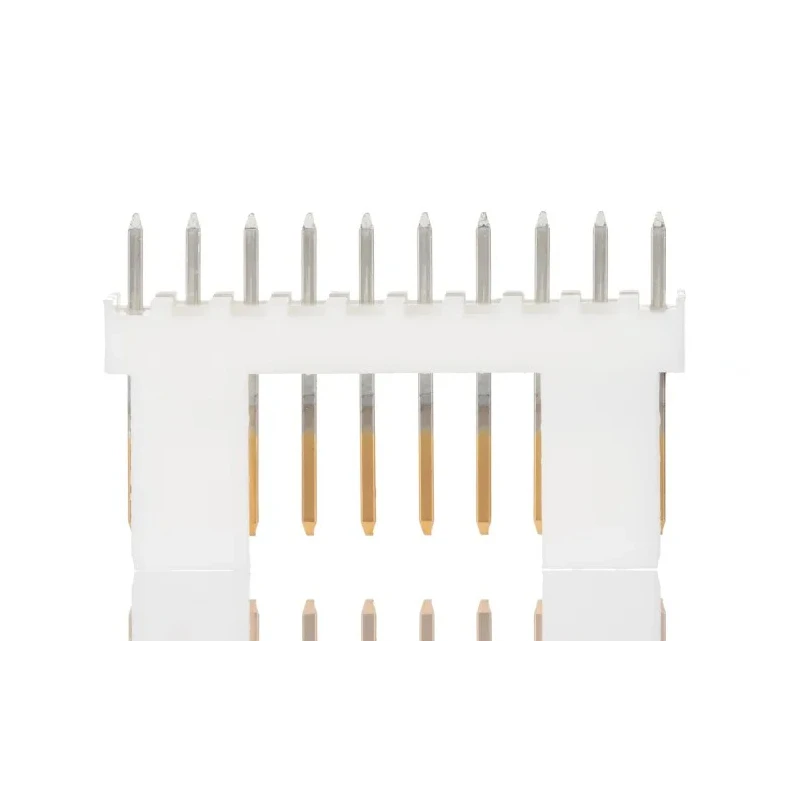

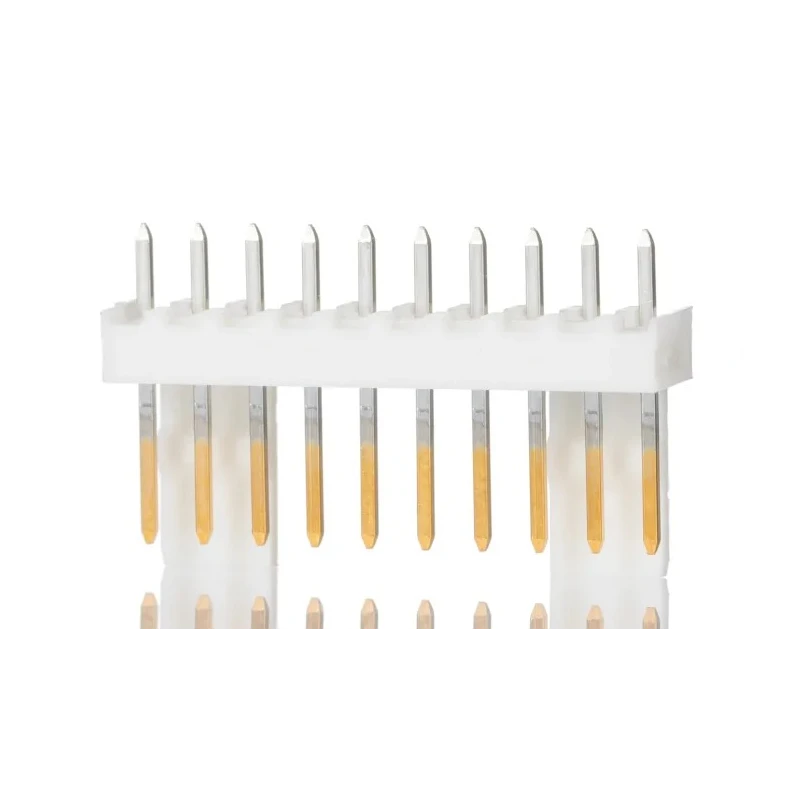

Molex KK 254 Series Straight Through Hole Pin Header, 10 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 22-29-2101
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
| Mating Pin Length | 2.54mm |
Key Features
- Constructed with a nylon housing for durable insulation.
- Features gold-plated brass male pins for high conductivity and corrosion resistance.
- Supports a maximum current of 4 amperes at 250 volts.
- Designed with a straight orientation and through-hole mounting for secure PCB connection.
- Unshrouded design allows for space-efficient installation.
- Operates within a temperature range from -40°C to 105°C.
- Tail pin length is 3.56 mm and mating pin length is 2.54 mm for proper fit.
- Suitable for medical equipment, domestic appliances, and automotive industry applications.
Product Description
Molex 22-29-2101 KK 254 Series Straight Through Hole Pin Header features a robust nylon housing material and 10 gold-plated brass male contacts arranged in a single row with a 2.54 mm pitch. Rated for 4A current and 250V voltage, this connector is suitable for low to medium power applications requiring reliable wire-to-board connections.
The unshrouded, straight orientation design facilitates easy PCB assembly through through-hole mounting and solder termination, ensuring a durable and electrically secure joint. The device is rated to operate reliably across a wide temperature range from -40°C to 105°C, accommodating diverse industrial environments.
Gold plating on the brass contacts guarantees excellent conductivity and resistance to corrosion, enhancing long-term performance. The tail pin length of 3.56 mm and mating pin length of 2.54 mm ensure accurate connection and fitment with matching housings. This pin header is polarized to prevent mating errors, improving assembly efficiency and safety.
Typical applications include medical equipment, domestic household appliances, and automotive systems where compact, reliable electrical interconnections are critical. Its 2.54 mm standard pitch ensures compatibility with common breadboards and PCB designs.
Durable nylon housing provides excellent insulative properties. Gold-plated brass pins for superior conductivity and corrosion resistance. Supports 4A current rating and 250V operation voltage. Straight orientation with through-hole mount for easy PCB integration.
Wide operating temperature from -40°C to 105°C. Unshrouded design for space-saving PCB layout. Polarized to prevent mating errors during assembly. Ideal for medical, domestic appliance, and automotive applications. Standard 2.54 mm pitch compatible with common PCB and breadboard spacing.
This Molex KK 254 Series Pin Header, model 22-29-2101, is a reliable choice for engineers and designers seeking durable and efficient PCB connection solutions. Explore the Electronics Components section on EnvMart for compatible wiring and housing options.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 4 amperes.
It is rated for a maximum voltage of 250 volts.
The pitch size is 2.54 mm, which is standard for many PCB designs.
The contacts are made of brass and are gold-plated for enhanced conductivity and corrosion resistance.
It operates within a temperature range from -40°C to 105°C.
This unit features 10 contacts arranged in a single row.
It is designed for through-hole mounting, allowing for secure PCB connections.
The tail pin length is 3.56 mm, ensuring proper fit with matching housings.
The mating pin length is 2.54 mm.
Yes, it is polarized to prevent mating errors during assembly.
It is suitable for applications in medical equipment, domestic appliances, and the automotive industry.
The termination type is solder, which is common for PCB connections.
