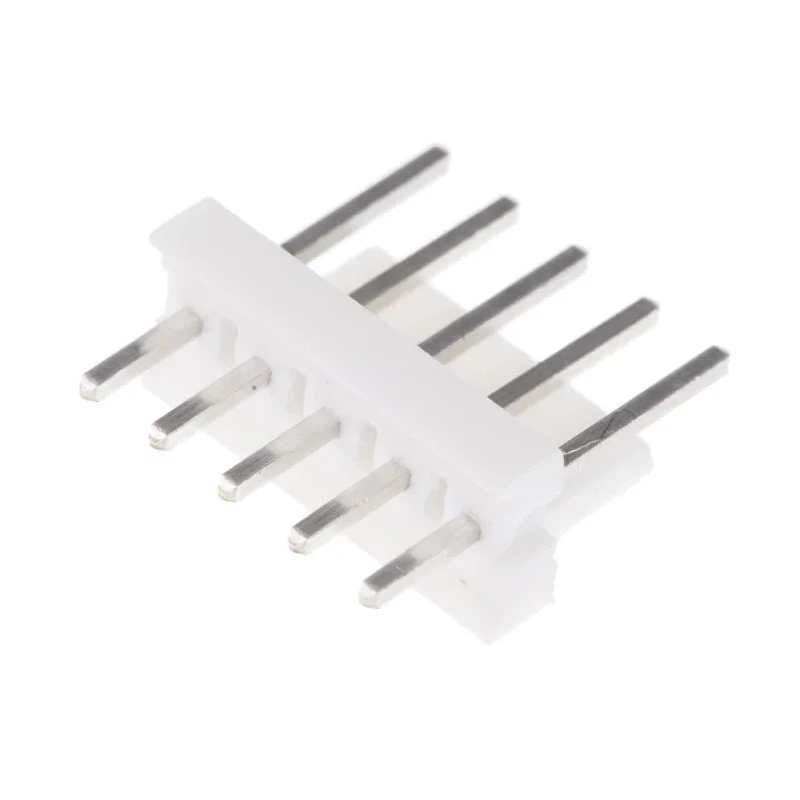

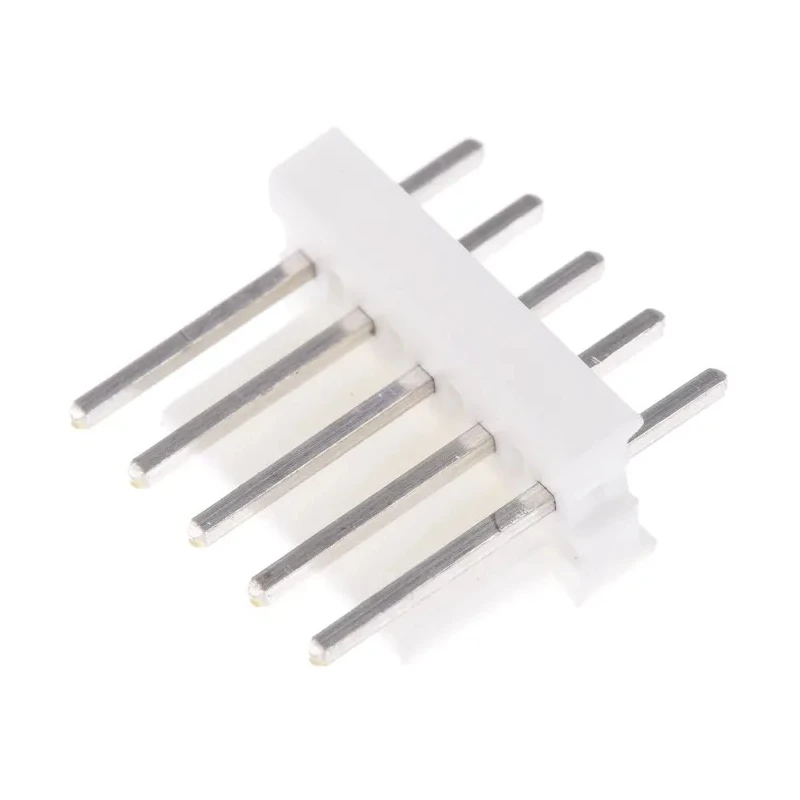

TE Connectivity MTA-100 Series Straight Through Hole Pin Header 5 Contacts 2.54 mm Pitch 1 Row Unshrouded 640454-5

TE Connectivity 640454-5 MTA-100 Series Straight Through Hole Pin Header is designed for reliable wire-to-board connections. Featuring 5 male contacts arranged in a single row with a 2.54 mm pitch, this unshrouded header is made with a durable glass filled polyester housing and copper alloy contacts plated with nickel and tin for excellent electrical performance.

This header supports operating voltages up to 250 V and currents up to 5 A, making it suitable for a wide range of electronic and industrial applications. The straight orientation and through hole mounting ensure robust and stable connections, while the solder termination type facilitates secure assembly.

Operating temperature ranges from -55°C to 105°C, allowing use in demanding environments. The polarization notches on the housing prevent mis-mating for accurate assembly, and the tail pin length of 3.56 mm with mating pin length of 7.49 mm enables compatibility with MTA-100 IDC connectors.

MTA-100 headers are stackable end to end, providing flexibility in design and installation. These connectors are well suited for automotive systems including body, chassis, driver information, safety, and security systems. The product is also ideal for use in computer systems such as desktop PCs, notebooks, servers, storage units, and workstations.

Constructed with glass filled polyester housing for durability. Copper alloy contacts plated with nickel and tin for reliable conductivity. Operates at voltages up to 250 V and currents up to 5 A. Features straight orientation with through hole mount type.

Termination type is solder with male contact gender. Designed to withstand temperatures from -55°C to 105°C. Tail pin length measures 3.56 mm and mating pin length 7.49 mm. Unshrouded design with polarization notches to prevent mis-mating.

Suitable for mass termination of wires with matching MTA-100 IDC connectors. End to end stackable headers for modular configurations.

This TE Connectivity MTA-100 Series PCB Pin Header ensures efficient and cost-effective interconnection solutions across automotive, computing, consumer electronics, and industrial applications. Browse EnvMart's extensive range of PCB headers and connectors to find complementary components.
